Morphological and Magnetic Characteristics of Strontium Ferrite Micro- and Nanofibers

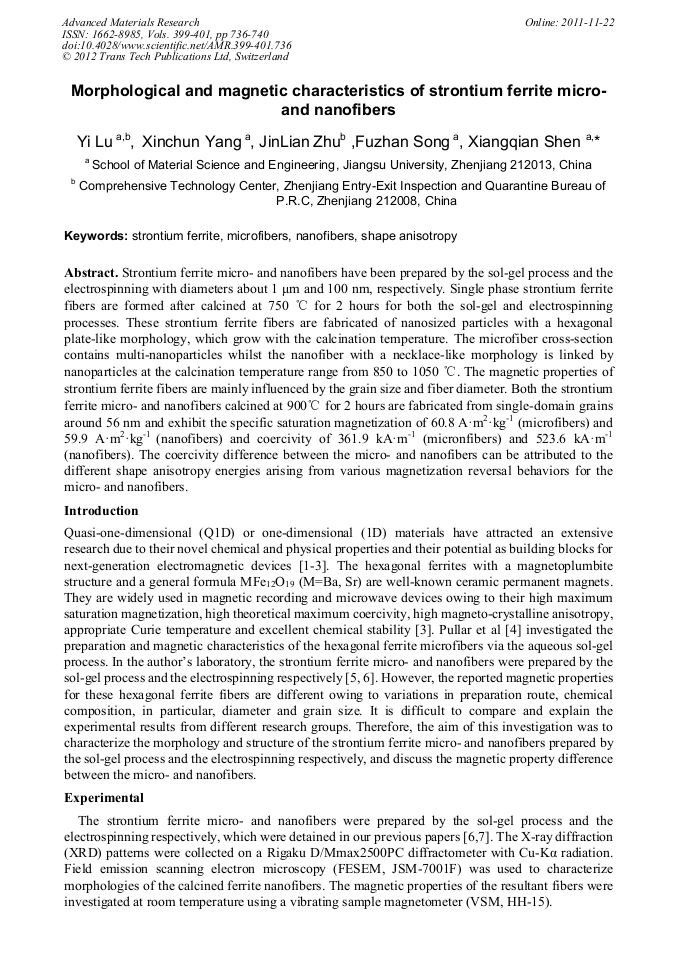

Abstract:

Strontium ferrite micro- and nanofibers have been prepared by the sol-gel process and the electrospinning with diameters about 1 μm and 100 nm, respectively. Single phase strontium ferrite fibers are formed after calcined at 750 °C for 2 hours for both the sol-gel and electrospinning processes. These strontium ferrite fibers are fabricated of nanosized particles with a hexagonal plate-like morphology, which grow with the calcination temperature. The microfiber cross-section contains multi-nanoparticles whilst the nanofiber with a necklace-like morphology is linked by nanoparticles at the calcination temperature range from 850 to 1050 °C. The magnetic properties of strontium ferrite fibers are mainly influenced by the grain size and fiber diameter. Both the strontium ferrite micro- and nanofibers calcined at 900°C for 2 hours are fabricated from single-domain grains around 56 nm and exhibit the specific saturation magnetization of 60.8 A•m²•kg^-1 (microfibers) and 59.9 A•m²•kg^-1 (nanofibers) and coercivity of 361.9 kA•m^-1 (micronfibers) and 523.6 kA•m^-1 (nanofibers). The coercivity difference between the micro- and nanofibers can be attributed to the different shape anisotropy energies arising from various magnetization reversal behaviors for the micro- and nanofibers.

• Periodical: Advanced Materials Research (Volumes 399-401)
• Pages: 736-740
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.399-401.736
• Online since: November 2011
• Authors: Yi Lu, Xin Chun Yang, Jin Lian Zhu, Fu Zhan Song, Xiang Qian Shen
• Keywords: Microfiber, Nanofiber, Shape Anisotropy, Strontium Ferrite

References

[1] T.M. Whitney, J.S. Jiang, P.C. Searson and C.L. Chien, Science, Vol 261 (1993) 1316.

[2] F.Z. Song, X.Q. Shen, M.Q. Liu and J. Xiang, J. Colloid Interf. Sci,Vol 354 (2011) 413.

[3] F.Z. Song, X.Q. Shen, M.Q. Liu and J. Xiang. J. Nanosci. Nanotechnoloy Vol 11 (2011) 1

[3] F.Z. Song, X.Q. Shen, J.Xiang, and Y.W. Zhu. J. Alloy. Compd, Vol 50 (2010): 297.

[4] R.C. Pullar, M.H. Stacey, M.D. Taylor, and A.K. Bhattacharya, Acta Mater Vol 49 (2001) 4241.

[5] F.Z. Song, X.Q. Shen, J. Xiang and H.J Song, Mater Chem Phys Vol 120 (2010) 213.

[6] X.Q. Shen, M.Q. Liu, F.Z. Song and X.F. Meng, J Sol-Gel Sci Technol Vol 53 (2010) 448.

[7] F.Z. Song, X.Q. Shen, M.Q. Liu and J. Xiang. Mater.Chem.Phys , Vol 126 (2011) 791

[8] E.C. Stoner, E.P. Wohlfarth, IEEE T Magn Vol 27 (1991) 3475.

[9] L.Y. Zhang, Y.F. Zhang, J. Magn. Magn. Mater Vol 321 (2009) L15.

[10] J.B. Wang, X.Z. Zhou, Q.F. Liu, D.S. Xue, F.S. Li, B. Li, Nanotechnology Vol 15 (2004) 485

[11] Q.F. Liu, C.X. Gao, J.J. Xiao, D.S. Xue, J. Magn. Magn. Mater Vol 260 (2003) 151.
