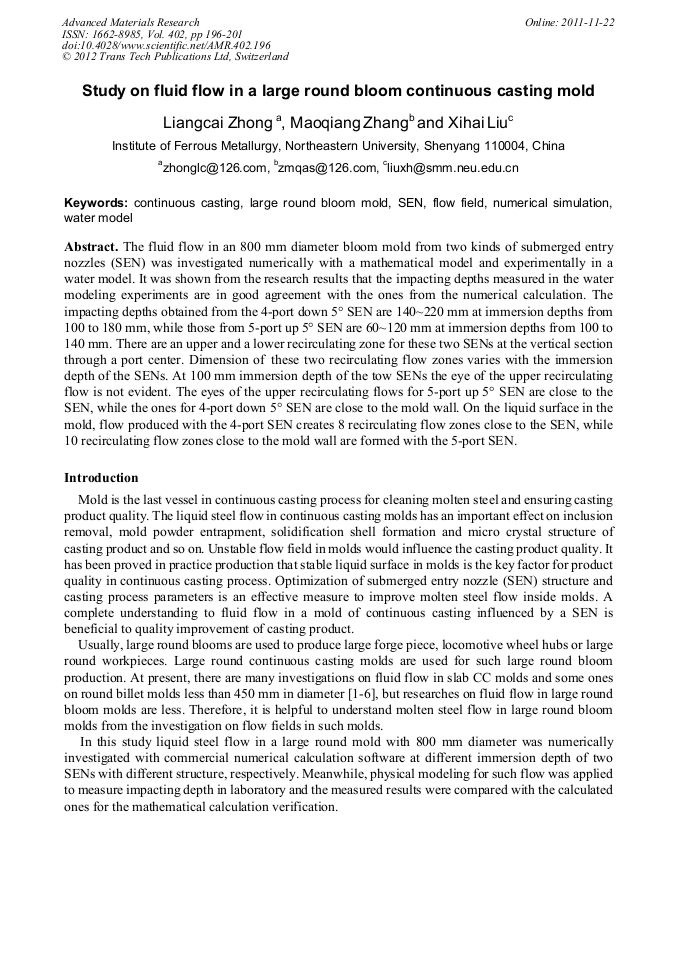

Study on Fluid Flow in a Large Round Bloom Continuous Casting Mold

Abstract:

The fluid flow in an 800 mm diameter bloom mold from two kinds of submerged entry nozzles (SEN) was investigated numerically with a mathematical model and experimentally in a water model. It was shown from the research results that the impacting depths measured in the water modeling experiments are in good agreement with the ones from the numerical calculation. The impacting depths obtained from the 4-port down 5° SEN are 140~220 mm at immersion depths from 100 to 180 mm, while those from 5-port up 5° SEN are 60~120 mm at immersion depths from 100 to 140 mm. There are an upper and a lower recirculating zone for these two SENs at the vertical section through a port center. Dimension of these two recirculating flow zones varies with the immersion depth of the SENs. At 100 mm immersion depth of the tow SENs the eye of the upper recirculating flow is not evident. The eyes of the upper recirculating flows for 5-port up 5° SEN are close to the SEN, while the ones for 4-port down 5° SEN are close to the mold wall. On the liquid surface in the mold, flow produced with the 4-port SEN creates 8 recirculating flow zones close to the SEN, while 10 recirculating flow zones close to the mold wall are formed with the 5-port SEN.

You might also be interested in these eBooks

Advances in Metallurgical and Mining Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 402)

Pages:

196-201

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.402.196

Citation:

Cite this paper

Online since:

November 2011

Authors:

Liang Cai Zhong, Mao Qiang Zhang, Xi Hai Liu

Keywords:

Continuous Casting, Flow Field, Large Round Bloom Mold, Numerical Simulation, SEN, Water Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. Miranda, M. A. Barron, J. Barreto, L. Hoyos and J. Gonzalez: ISIJ Intern. Vol. 45 (2005), p.1626.

Google Scholar

[2] T. Kato, M. Hara, A. Muto, S. Hiraki and M. Kawamoto: ISIJ Intern. Vol. 47 (2007), p.840.

Google Scholar

[3] N. Kasai, M. Iguchi: ISIJ Intern. Vol. 47 (2007), p.982.

Google Scholar

[4] A. Ramos-Banderas, R. Sánchez-Pérez, R.D. Morales, I. Palafox-Ramos, L. Demedices-García and M. Díaz-cruz: Metall. Meter. Trans. B Vol. 35 (2004), p.449.

DOI: 10.1007/s11663-004-0046-0

Google Scholar

[5] Xiaogang Luo, Yaoguang Wu, Shiheng Peng, Sheng-tao Qiu and Jian-ping Zhang: J. of Anshan Univ. of Sci. and Tech. Vol. 28 (2005), p.325. (In Chinese)

Google Scholar

[6] Lingling Qin, Yubao Chen and Guocai Ying: Anhui Metall. (2008), p.16. (In Chinese)

Google Scholar

[7] D.Y. Sheng and L. Jonsson: Metall. Meter. Trans. B Vol. 30 (1999), p.979.

Google Scholar
