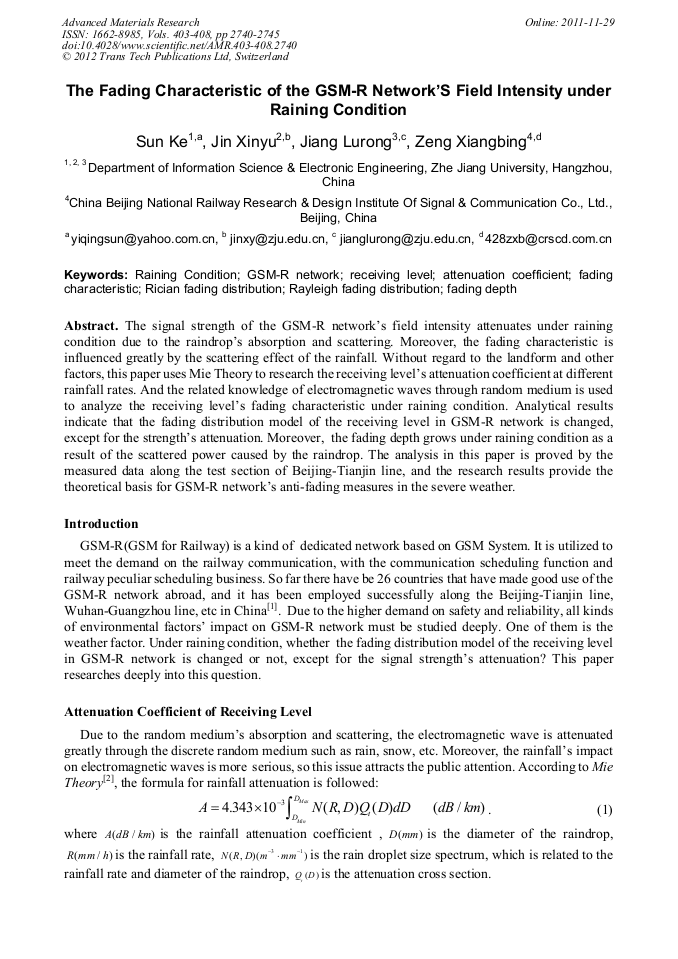

The Fading Characteristic of the GSM-R Network’s Field Intensity under Raining Condition

Abstract:

The signal strength of the GSM-R network’s field intensity attenuates under raining condition due to the raindrop’s absorption and scattering. Moreover, the fading characteristic is influenced greatly by the scattering effect of the rainfall. Without regard to the landform and other factors, this paper uses Mie Theory to research the receiving level’s attenuation coefficient at different rainfall rates. And the related knowledge of electromagnetic waves through random medium is used to analyze the receiving level’s fading characteristic under raining condition. Analytical results indicate that the fading distribution model of the receiving level in GSM-R network is changed, except for the strength’s attenuation. Moreover, the fading depth grows under raining condition as a result of the scattered power caused by the raindrop. The analysis in this paper is proved by the measured data along the test section of Beijing-Tianjin line, and the research results provide the theoretical basis for GSM-R network’s anti-fading measures in the severe weather.

• Periodical: Advanced Materials Research (Volumes 403-408)
• Pages: 2740-2745
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.403-408.2740
• Online since: November 2011
• Authors: Ke Sun, Xin Yu Jin, Lu Rong Jiang, Xiang Bing Zeng
• Keywords: Attenuation Coefficient, Fading Characteristic, Fading Depth, GSM-R Network, Raining Condition, Rayleigh Fading Distribution, Receiving Level, Rician Fading Distribution

References

[1] Wang Hao, Zhong Zhangdui. Research on the radio coverage planning of GSM-R in high-speed railway environment: [dissertation]. Beijing: Beijing Jiaotong University, (2009).

[2] Zhu Chao, Yang Ruike. Study for Scattering of Rainfall in Millimeter Wave Band and Effect on Doppler Fuze: [dissertation]. Xi'an: Xidian University, (2010).

[3] Shkarofsky,I., MPB Technologies Inc., Anne-de-Bellevue, Que, Dependence of rain attenuation and cross-polarization on drop size distribution, presented in Antennas and Propagation, IEEE Transactions, Vol. 27, No. 4, pp.538-542, (1979).

DOI: 10.1109/tap.1979.1142129

[4] Huang Jiying, Li Yingle, Gong Shuhong, Characteristics of pulse wave propagation in the random rain medium, JOURNAL OF XIDIAN UNIVERSITY(NATURAL SCIENCE), Vol. 34, No. 4, pp.583-586, (2007).

[5] Ishimaru, A, Wave propagation and scattering in random medium, In Paralanguage. Beijing: Sicience Press, 1986, pp.2-99.

[6] Gong Shuhong, Huang Jiying, Zhao Xiaolong, The Envelope Probability Density Functions in Multi-Path Channels under Raining Condition, ACTA ELECTRONICA SINICA, Vol. 37, No. 12, pp.2833-2837, (2005).

[7] Daba J S, Bell M R, Statistics of the Scattering Cross-section of A Small Number of Random Scatterers, IEEE Trans on AP, Vol. 43, No. 8, pp.773-783, (1995).

DOI: 10.1109/8.402196

[8] Luo Chenghan, Liu Xiaoshan, Realizaion Method to Curve Fitting Based on Matlab, MODERN ELECTRONICS TECHNIQUE, vol. 26, No. 20, pp.16-20, (2003).

[9] Li Zi, Cai Yueming, Simulation Models for Rayleigh Fading Channels, Journal of PLA University of Science and Technology, vol. 5, No. 2, pp.1-8, (2004).

[10] Lin Min, Qiu Hongbing, Lin Zhitang, A novel simulation models for Rician fading channels, Journal of Guilin University of Electronic Technology, Vol. 30, No. 1, pp.27-29, (2010).
