Postbuckling Investigation on the Micromachined Double-Clamped Beams

Abstract:

In this paper, thermal postbuckling of a beam-like structure subjected to a uniform thermal loading is studied both theoretically and experimentally. In theory aspect, the equations governing the axial and transverse deformations of beams are derived. The two equations are reduced to a single nonlinear fourth-order integral-differential equation governing the transverse deformations. The analytical method presented here offers a simple yet efficient solution approach to analyze the bistable behavior of microbeam or beam-like structures under thermal loading. Then, microfabricated double-clamped beams are chosen as experimental object due to its precise dimensions and easy loading method. The lab-made HF vapor system was used to release the suspended structures with satisfactory results. After the fabrication and measurement, by comparing the theoretical results with experimental results, an excellent agreement is gotten. It proves not only the validity of the solution obtained here, on the other hand, importantly, it also demonstrates a new field for MEMS as another easy and accurate tool to investigate mechanics problems. With the accurate solutions for posbuckling beams, we apply it into new electrothermal postbuckling actuators, a big deflection promising the possibility of a new kind of actuator.

You might also be interested in these eBooks

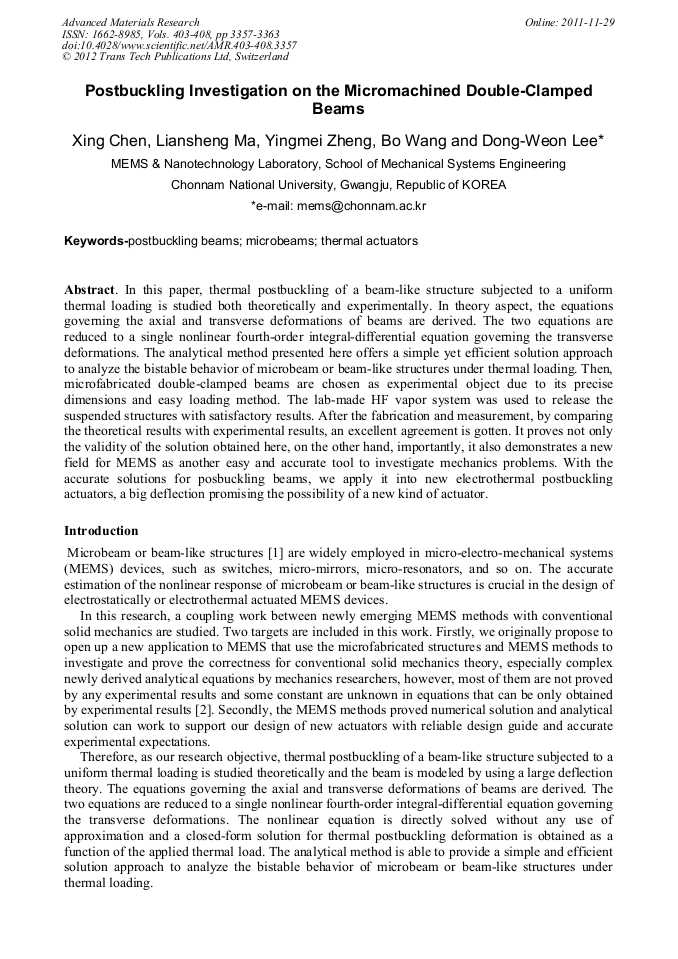

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 403-408)

Pages:

3357-3363

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.403-408.3357

Citation:

Cite this paper

Online since:

November 2011

Authors:

Xing Chen, Lian Sheng Ma, Ying Mei Zheng, Bo Wang, Dong Weon Lee

Keywords:

Hermal Actuators, Micro-Beams, Postbuckling Beams

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. C. Batra, et. al., J. Microelectromech. Syst., 15 (2006), pp.1175-1189.

Google Scholar

[2] R. C. Batra, et. al., J. Sound and Vibration, 309 (2008), pp.600-612.

Google Scholar

[3] L. Lin and M. Chiao, Electrothermal responses of lineshape microstructures, Sensors and Actuators, A55, (1996) 35-41.

DOI: 10.1016/s0924-4247(96)01247-2

Google Scholar

[4] N. D. Mankame and G. K. Ananthasuresh, Comprehensive thermal modeling and characterization of an electro-thermal-compliant microactuator, Journal of Micromechanics and Microengineering, 11 (2001) 452-462.

DOI: 10.1088/0960-1317/11/5/303

Google Scholar

[5] C.D. Lott, T.W. Mclain, J.N. Harb and L.L. Howell, Modeling the thermal behavior of a surface-micromachined linear displacement thermomechanical microactuator, Sensors and Actuators, A101 (2002) 239-250.

DOI: 10.1016/s0924-4247(02)00202-9

Google Scholar

[6] L. Lin and M. Chiao, Electro, thermal and elastic characterizations of suspended micro beams, Microelectronics Journal 29 (1998) 269-276.

DOI: 10.1016/s0026-2692(97)00066-9

Google Scholar

[7] M. Chiao and L. Lin, Self-buckling of micromachined beams under resistive heating, Journal of Microelectromechanical systems, Vol. 9, NO. 1 (2000) 146-151.

DOI: 10.1109/84.825789

Google Scholar

[8] Liwei Lin and S.H. Lin, Vertically Driven Microactuators by Electrothermal Buckling Effects, Sensors and Actuators, Vol. A71, pp.35-39, Nov. (1998).

DOI: 10.1016/s0924-4247(98)00167-8

Google Scholar
