Development of Calculating Grinding Wheel-Profile Software Applied to the Sharping Grinder Machine

Abstract:

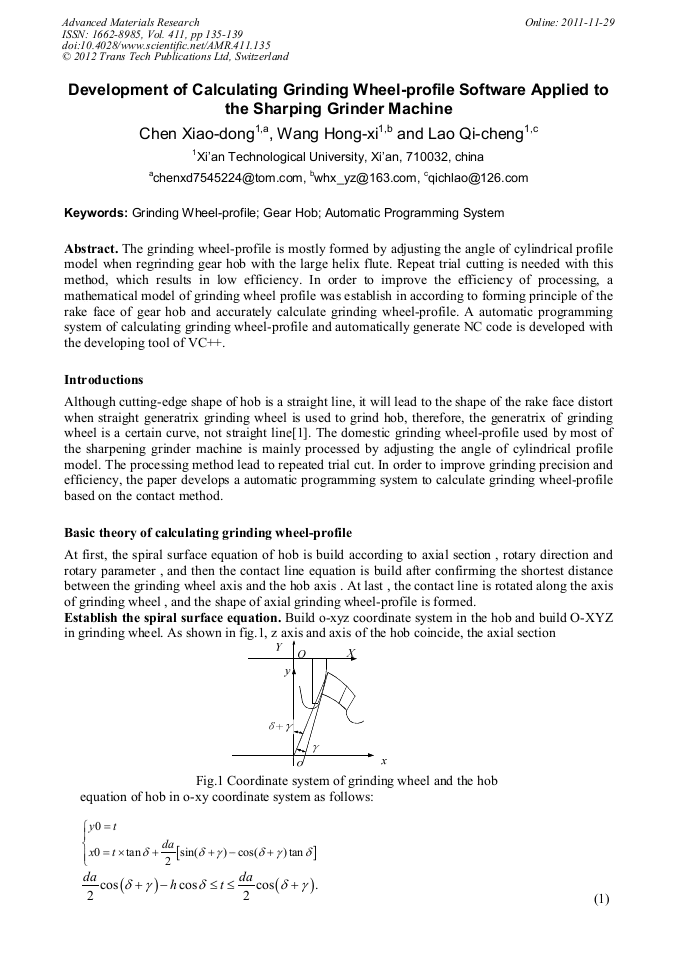

The grinding wheel-profile is mostly formed by adjusting the angle of cylindrical profile model when regrinding gear hob with the large helix flute. Repeat trial cutting is needed with this method, which results in low efficiency. In order to improve the efficiency of processing, a mathematical model of grinding wheel profile was establish in according to forming principle of the rake face of gear hob and accurately calculate grinding wheel-profile. A automatic programming system of calculating grinding wheel-profile and automatically generate NC code is developed with the developing tool of VC++.
