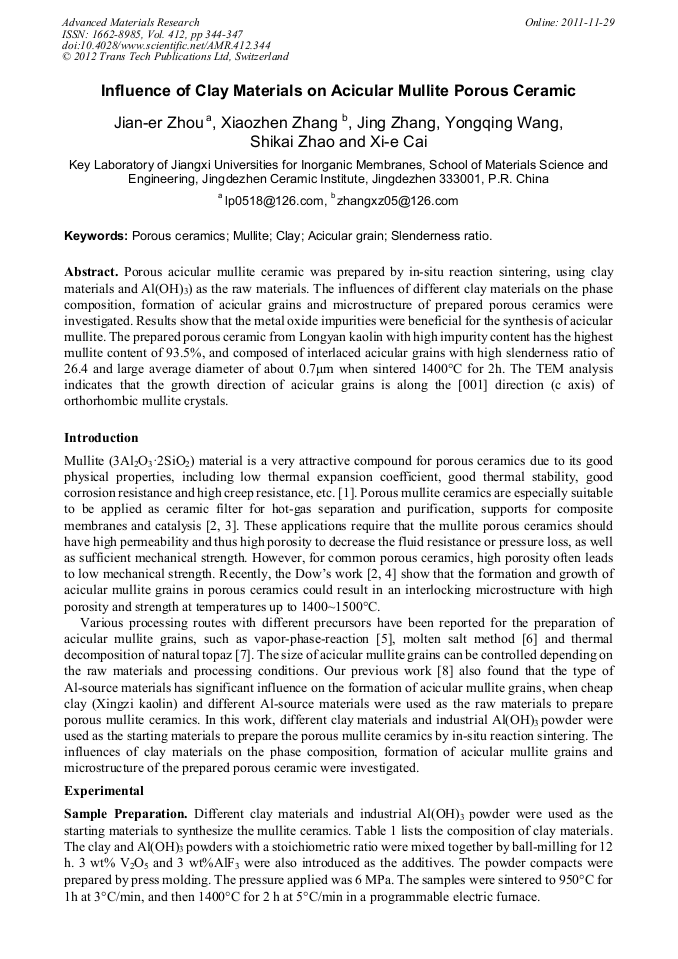

Influence of Clay Materials on Acicular Mullite Porous Ceramic

Abstract:

Porous acicular mullite ceramic was prepared by in-situ reaction sintering, using clay materials and Al (OH)₃) as the raw materials. The influences of different clay materials on the phase composition, formation of acicular grains and microstructure of prepared porous ceramics were investigated. Results show that the metal oxide impurities were beneficial for the synthesis of acicular mullite. The prepared porous ceramic from Longyan kaolin with high impurity content has the highest mullite content of 93.5%, and composed of interlaced acicular grains with high slenderness ratio of 26.4 and large average diameter of about 0.7μm when sintered 1400°C for 2h. The TEM analysis indicates that the growth direction of acicular grains is along the [001] direction (c axis) of orthorhombic mullite crystals.

• Periodical: Advanced Materials Research (Volume 412)
• Pages: 344-347
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.412.344
• Online since: November 2011
• Authors: Jian Er Zhou, Xiao Zhen Zhang, Jing Zhang, Yong Qing Wang, Shi Kai Zhao, Xi E Cai
• Keywords: Acicular Grain, Clay, Mullite, Porous Ceramics, Slenderness Ratio

References

[1] A. Esharghawi, C. Penot, F. Nardou: J. Eur. Ceram. Soc. vol. 29 (2009), p.31.

[2] A. J. Pyzik, C. G. Li: Int. J. Appl. Ceram. Technol., vol. 2 (2005), p.440.

[3] G. Chen, H. Qi, W. Xing, N. Xu, J. Membr. Sci. vol. 318 (2008), p.38.

[4] A. J. Pyzik, C. S. Todd, Chan Han: J. Eur. Ceram. Soc. vol. 28 (2008), p.383.

[5] K. Okada, N. Otuska, J. Am. Ceram. Soc. vol. 74 (1991), p.2414.

[6] P. Zhang, J. Liu, H. Du, Z. Li, S. Li, C. Chen: J. Alloys Compd. vol. 484 (2009), p.580.

[7] X. Miao: Materials Letters vol. 38(1999), p.167.

[8] J. Zhou X. Zhang X. Cai, Y. Wang: Journal of ceramics vol. 31(2010), p.46 (in Chinese).

[9] Y. Chen, M. Wang, M. Hon: J. Eur. Ceram. Soc. vol. 24 (2004), p.2389.

[10] L. B Kong, Y. Z Chen, T. S Zhang, J. Ma: Ceramics Int. vol. 30(2004), p.1319.

[11] V. Viswabaskaran, F. D. Gnanam: J. Mater. Sci. Lett. vol. 22 (2003), p.663.

[12] L. Montanaro, C Perrot, C. Esnouf: J. Am. Ceram. Soc., vol. 83 (2000), p.189.
