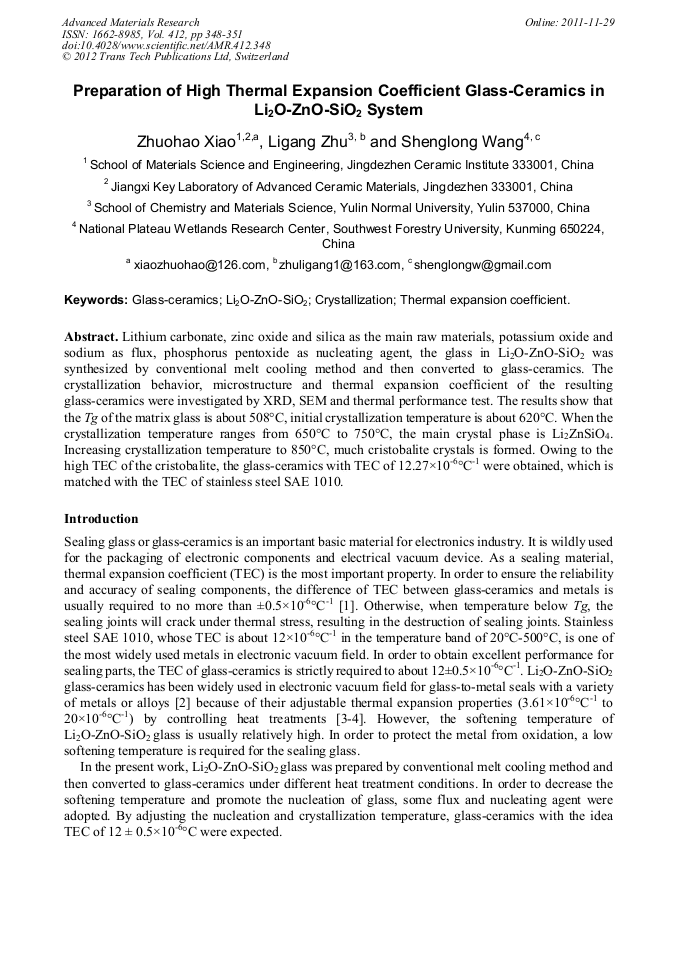

Preparation of High Thermal Expansion Coefficient Glass-Ceramics in Li₂O-ZnO-SiO₂ System

Abstract:

Lithium carbonate, zinc oxide and silica as the main raw materials, potassium oxide and sodium as flux, phosphorus pentoxide as nucleating agent, the glass in Li₂O-ZnO-SiO₂ was synthesized by conventional melt cooling method and then converted to glass-ceramics. The crystallization behavior, microstructure and thermal expansion coefficient of the resulting glass-ceramics were investigated by XRD, SEM and thermal performance test. The results show that the Tg of the matrix glass is about 508°C, initial crystallization temperature is about 620°C. When the crystallization temperature ranges from 650°C to 750°C, the main crystal phase is Li₂ZnSiO₄. Increasing crystallization temperature to 850°C, much cristobalite crystals is formed. Owing to the high TEC of the cristobalite, the glass-ceramics with TEC of 12.27×10^-6°C^-1 were obtained, which is matched with the TEC of stainless steel SAE 1010.

• Periodical: Advanced Materials Research (Volume 412)
• Pages: 348-351
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.412.348
• Online since: November 2011
• Authors: Zhuo Hao Xiao, Li Gang Zhu, Sheng Long Wang
• Keywords: Crystallization, Glas Ceramics, Li₂O-Zno-SiO₂, Thermal Expansion Coefficient

References

[1] Y. R. Ma: Glass and enamel, Vol. 20(1992), pp.59-65 (In Chinese).

[2] M. Goswami, S.K. Deshpande, R. Kumar, et al: J. Phys. Chem. Solid, Vol. 71(2010), pp.739-744.

[3] A.X. Lu, Z.B. Ke, Z.H. Xiao, et al: J. Non-Cryst. Solids, Vol. 353 (2007), pp.2692-2697.

[4] B. I. Sharma, M. Goswami, P. Sengupta, et al: Mater. Lett., Vol. 58 (2004), p.2423.

[5] Z. Yang: Master thesis, Central South University, Changsha, 2005 (In Chinese).

[6] T. G. Xi: Physical and thermal properties of inorganic materials, Shanghai Science and Technology Press, Shanghai, 1984 (In Chinese).
