For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Synthesis of SrTiO3 Powders by Gel Solid State Reaction Method
p.78
Preparation and Characterization of Monodispersed BaTiO3 Nanocrystals Using One-Step Solvothermal Method
p.82
Barium Zirconium Titanate Powders Prepared by Sol–Gel Method
p.86
Preparation of Zn3Nb2O8 by Chemical Co-Precipitation
p.90
Preparation of ZnNb2O6 Powders by Molten Salt Method
p.94
Synthesis of Multiferroic BiFeO3 Powders by Sol-Gel Auto-Combustion
p.99
Synthesis and Photocatalytic Properties of Bi2Ti2O7 Nano-Powders
p.103
Preparation of LiMn2O4 by a Solution Combustion Synthesis Using Acetic Salts and Acetic Acid as Starting Materials
p.107
Preparation of Lithium Orthosilicate Ceramic Pebbles by Molten Spray Method Process
p.111

Preparation of ZnNb2O6 Powders by Molten Salt Method

Article Preview

Abstract:

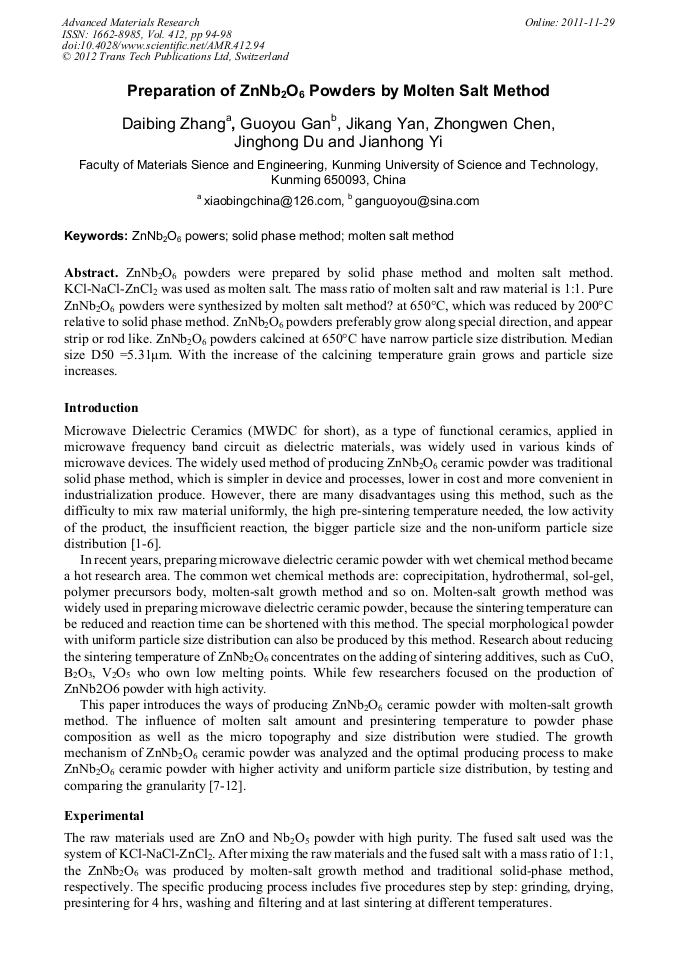

ZnNb2O6 powders were prepared by solid phase method and molten salt method. KCl-NaCl-ZnCl2 was used as molten salt. The mass ratio of molten salt and raw material is 1:1. Pure ZnNb2O6 powders were synthesized by molten salt method at 650°C, which was reduced by 200°C relative to solid phase method. ZnNb2O6 powders preferably grow along special direction, and appear strip or rod like. ZnNb2O6 powders calcined at 650°C have narrow particle size distribution. Median size D50 =5.31μm. With the increase of the calcining temperature grain grows and particle size increases.

You might also be interested in these eBooks
Chinese Ceramics Communications II View Preview

Info:

Periodical:

Advanced Materials Research (Volume 412)

Pages:

94-98

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.412.94

Citation:

Cite this paper

Online since:

November 2011

Authors:

Dai Bing Zhang, Guo You Gan, Ji Kang Yan, Zhong Wen Chen, Jing Hong Du, Jian Hong Yi

Keywords:

Molten Salt Method, Solid Phase Method, ZnNb2O6 Powers

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] R. D. Richtmyer: J. Appl. Phys. Vol. 10(1939), p.391.

Google Scholar

[2] B. W. Hakki: Microw. Theory. Tech. Vol. 8(1996), p.402.

Google Scholar

[3] L. Fang, W.M. Yang, J.B. Yan, et al.: J. Wuhan Univ. Technol. Vol. 24(2002), p.12.

Google Scholar

[4] L.W. Jia, X.Y. Li, T. Qiu, et al.: Mater. Rev. Vol. 2(2008), p.10.

Google Scholar

[5] W. Z Lu, D.L. Zhang, B.Y. Li, et al.: J. Funct. Mater. Vol. 31 (2000), p.572.

Google Scholar

[6] G.Y. Li: Master Degree Thesis (Northwestern Polytechnical University, Xi'an, China, 2004).

Google Scholar

[7] G.H. Chen: Chin. Ceram. Ind. Vol. 11(2004), p.41.

Google Scholar

[8] Z.Q. Tian, H.X. Liu, H.T. Yu, et al.: Mater. Rev. Vol. 17 (2003), p.48.

Google Scholar

[9] J.F. Yang: Master Degree Thesis (Beijing University of Technology, Beijing, China, 2008).

Google Scholar

[10] J.B. Lim, Y.H. Jeong, S. NAHM, et al.: J. Eur. Ceram. Soc. Vol. 27(2007), p.2875.

Google Scholar

[11] Z.Z. Zheng, G.Y. Gan, J.K. Yan, et al.: Mater. Rev. Vol. 22[Suppl. XI] (2008), p.322.

Google Scholar

[12] Z.Z. Zheng, G.Y. Gan, J.K. Yan, et al.: Piezoelectrics & Acoustooptics. Vol. 32(2010), p.660.

Google Scholar

[13] J.W. Cahn: Cryst. Growth. (1967), p.681.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
