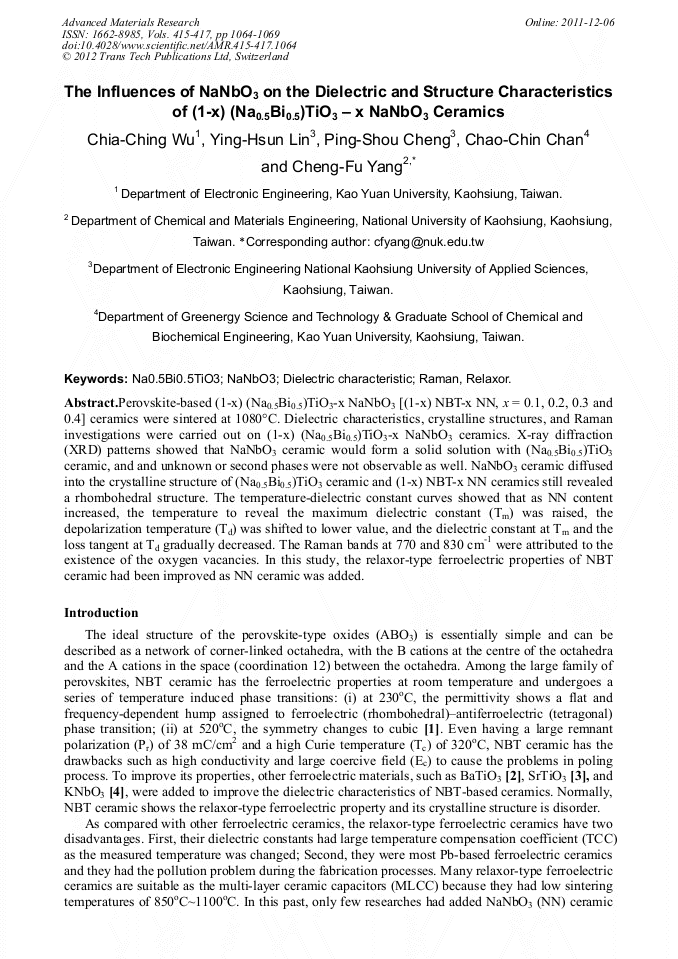

The Influences of NaNbO₃ on the Dielectric and Structure Characteristics of (1-X) (Na_0.5Bi_0.5)TiO₃–x NaNbO₃ Ceramics

Abstract:

Perovskite-based (1-x) (Na_0.5Bi_0.5)TiO₃-x NaNbO₃ [(1-x) NBT-x NN, x = 0.1, 0.2, 0.3 and 0.4] ceramics were sintered at 1080°C. Dielectric characteristics, crystalline structures, and Raman investigations were carried out on (1-x) (Na_0.5Bi_0.5)TiO₃-x NaNbO₃ ceramics. X-ray diffraction (XRD) patterns showed that NaNbO₃ ceramic would form a solid solution with (Na_0.5Bi_0.5)TiO₃ ceramic, and and unknown or second phases were not observable as well. NaNbO₃ ceramic diffused into the crystalline structure of (Na_0.5Bi_0.5)TiO₃ ceramic and (1-x) NBT_-x NN ceramics still revealed a rhombohedral structure. The temperature-dielectric constant curves showed that as NN content increased, the temperature to reveal the maximum dielectric constant (T_m) was raised, the depolarization temperature (T_d) was shifted to lower value, and the dielectric constant at Tm and the loss tangent at T_d gradually decreased. The Raman bands at 770 and 830 cm^-1 were attributed to the existence of the oxygen vacancies. In this study, the relaxor-type ferroelectric properties of NBT ceramic had been improved as NN ceramic was added.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 1064-1069
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.1064
• Online since: December 2011
• Authors: Chia Ching Wu, Ying Hsun Lin, Ping Shou Cheng, Chao Chin Chan, Cheng Fu Yang
• Keywords: Dielectric Characteristic, Na_0.5Bi_0.5TiO₃, NaNbO₃, RAMAN, Relaxor

References

[1] G. A. Smolenskii, V. A. Isupov, A. I. Agranovskaya and N. N. Krainik, Sov. Phys. Solid State Vol. 2, (1960), p.2651.

[2] R. Ranjan and A. Dviwedi, Solid State Commun. Vol.135, (2005), p.394.

[3] J. R. Gomah-Pettry, P. Marchet, A. Salak, V. M. Ferreira and J. P. Mercurio, Integr. Ferroelectr. 61, (2004), p.159.

[4] G. Fan, W. Lu, F. Liang and J. Xiao, J. Phys. D: Appl. Phys. Vol. 41, (2008), p.035403.

[5] T. Wada, K. Toyoike, Y. Imanaka and Y. Matsuo, Jpn. J. Appl. Phys. Vol. 40, (2001), p.5703.

[6] W.G. Ralph Wyckoff, Crystal Structures, vol. 2, Interscience, New York, 1964.

[7] C. Zhou, X. Liu, J Mater Sci: Mater Electron Vol. 19, (2008), p.29.

[8] W. Sakamoto, M. Mizuno, J. Alloys Comp. Vol. 538, (2006), p.408.

[9] R. Ranjan, V. Kothai, R. Garg, A. Agrawal, A. Senyshyn and H. Boysen, Appl. Phys. Lett. Vol. 95, (2009), p.042904.

DOI: 10.1063/1.3193658

[10] S. P. Singh, R. Ranjan, and H. Boysen, J. Phys.: Condens. Matter Vol. 21, (2009), p.375902.

[11] Y. Hiruma, H. Nagata and T. Takenaka, J. Appl. Phys. Vol. 104, (2008), p.124106,.

[12] X. Yao, Z. L. Chen, I. E. Cross, J. Appl. Phys. Vol. 54, (1983), p.3399.

[13] N. Setter, L. E. Cross, J. Appl. Phys. Vol. 51, (1980), p.4356.

[14] L. E. Cross, Ferroelectrics Vol. 76, (1987), p.241.

[15] D. Viehland, S. J. Jang, L. E. Cross, M. Wuttig, J. Appl. Phys. Vol. 68, (1990), p.2916.

[16] C. Zhou, and X. Liu, J. Mater. Sci.: Mater. Electron. Vol. 19, (2008), p.29.

[17] J. Kreisel, A. M. Glazer, G. Jones, P. A. Thomas, L. Abello and G. Lucazeau, J. Phys.: Condens. Matter Vol. 12, (2000), p.3267.

[18] J. Kreisel, A. M. Glazer, P. Bouvier and G. Lucazeau, Phys. Rev. Vol. B63, (2001), p.174106.

[19] A. Mineshige, M. Kobune and T. Yazawa, Solid State Ion. Vol. 177, (2006), p.2443.

[20] A. Mineshigea, S. Okadaa, K. Sakaia, M. Kobunea, S. Fujiia, H. Matsumotob, T. Shimurab, H. Iwaharab and Z. Ogumic, Solid State Ion. Vol. 41, (2003), p.162.
