Fracture Behavior and Microstructure of 60Si2MnA Spring Steels Modified by V-Nb Inoculants

Tie Bao Wang; Chun Xiang Cui; Lin Fang; Shao Jing Bu

doi:10.4028/www.scientific.net/AMR.415-417.1085

Paper Titles

The Influences of NaNbO₃ on the Dielectric and Structure Characteristics of (1-X) (Na_0.5Bi_0.5)TiO₃–x NaNbO₃ Ceramics
p.1064

Study on Microstructure of ZnO Lighting Arrester with High Voltage Gradient
p.1070

Influence of La₂O₃ Nanopowder on Crystallization Behavior and Sintering Performance of Fused Quartz Ceramic Materials
p.1074

Effect of La₂O₃ Addition on the Microstructure and Electrical Properties of Copper-Nickel Manganese Thermistors
p.1078

Fracture Behavior and Microstructure of 60Si2MnA Spring Steels Modified by V-Nb Inoculants
p.1085

The Effects of Rolling and Annealing on the High Speed Impact Deformation Behavior of Mg-3%Li-1%Ce Alloy
p.1090

Plasticity and Fracture Mechanism of Refine-Grain AZ31 Magnesium Alloys Sheet
p.1096

Thermal Characterization of Polyurethane from Castor Oil Reinforced Sugarcane Straw Composites
p.1103

Effect of Solid Solution on the Microstructure and Performance of Nuclear Power Slot Wedge Copper Alloy
p.1107

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 415-417Fracture Behavior and Microstructure of 60Si2MnA...

Fracture Behavior and Microstructure of 60Si2MnA Spring Steels Modified by V-Nb Inoculants

Abstract:

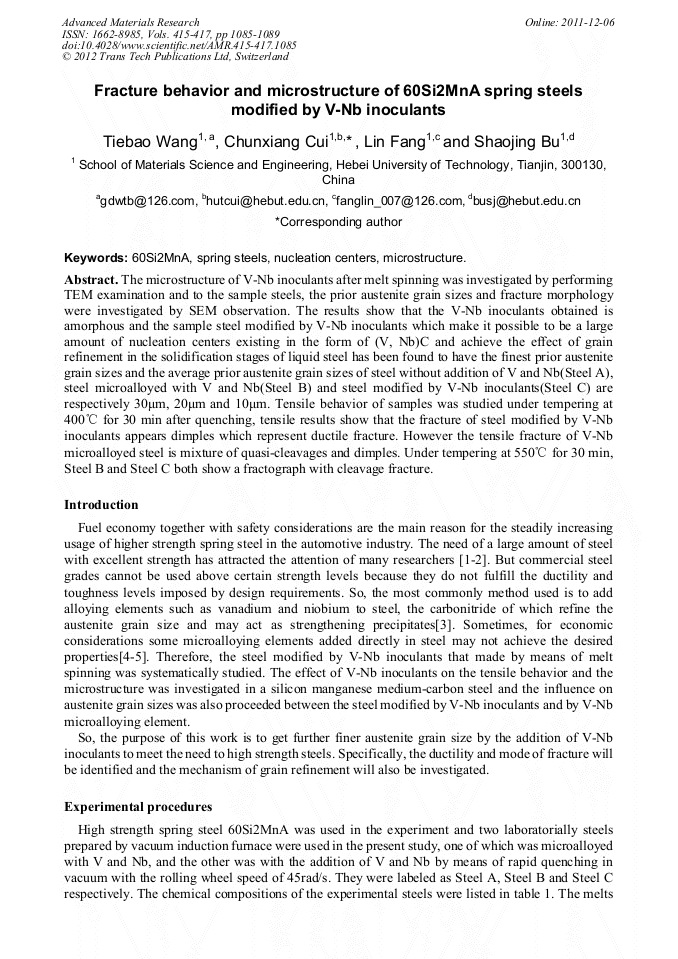

The microstructure of V-Nb inoculants after melt spinning was investigated by performing TEM examination and to the sample steels, the prior austenite grain sizes and fracture morphology were investigated by SEM observation. The results show that the V-Nb inoculants obtained is amorphous and the sample steel modified by V-Nb inoculants which make it possible to be a large amount of nucleation centers existing in the form of (V, Nb)C and achieve the effect of grain refinement in the solidification stages of liquid steel has been found to have the finest prior austenite grain sizes and the average prior austenite grain sizes of steel without addition of V and Nb(Steel A), steel microalloyed with V and Nb(Steel B) and steel modified by V-Nb inoculants(Steel C) are respectively 30μm, 20μm and 10μm. Tensile behavior of samples was studied under tempering at 400°C for 30 min after quenching, tensile results show that the fracture of steel modified by V-Nb inoculants appears dimples which represent ductile fracture. However the tensile fracture of V-Nb microalloyed steel is mixture of quasi-cleavages and dimples. Under tempering at 550°C for 30 min, Steel B and Steel C both show a fractograph with cleavage fracture.
