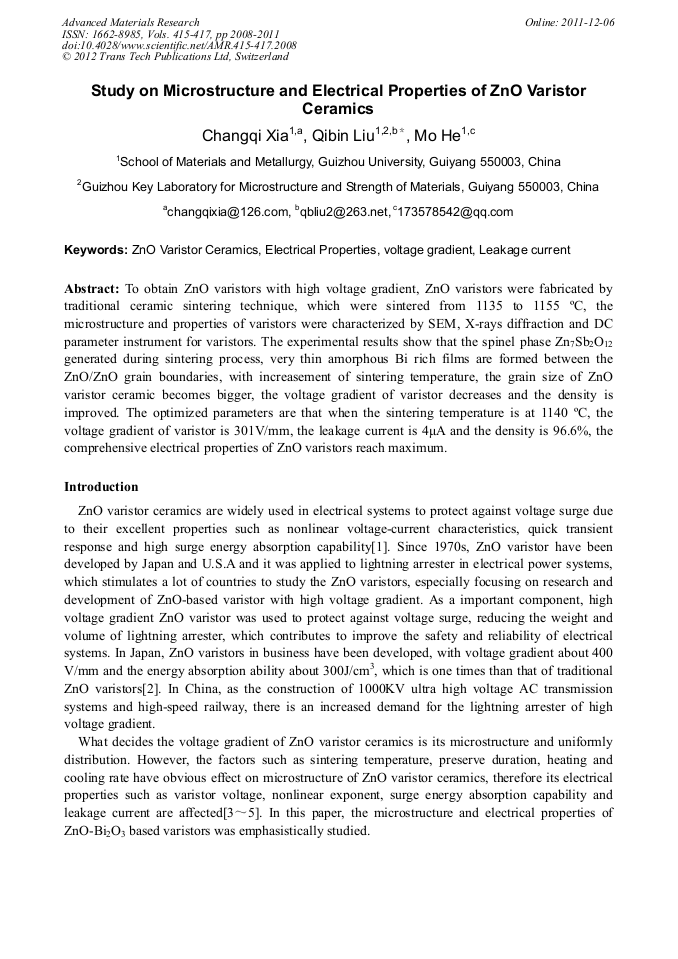

Study on Microstructure and Electrical Properties of ZnO Varistor Ceramics

Abstract:

To obtain ZnO varistors with high voltage gradient, ZnO varistors were fabricated by traditional ceramic sintering technique, which were sintered from 1135 to 1155 °C, the microstructure and properties of varistors were characterized by SEM, X-rays diffraction and DC parameter instrument for varistors. The experimental results show that the spinel phase Zn₇Sb₂O₁₂ generated during sintering process, very thin amorphous Bi rich films are formed between the ZnO/ZnO grain boundaries, with increasement of sintering temperature, the grain size of ZnO varistor ceramic becomes bigger, the voltage gradient of varistor decreases and the density is improved. The optimized parameters are that when the sintering temperature is at 1140 °C, the voltage gradient of varistor is 301V/mm, the leakage current is 4μA and the density is 96.6%, the comprehensive electrical properties of ZnO varistors reach maximum.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 2008-2011
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.2008
• Online since: December 2011
• Authors: Chang Qi Xia, Qi Bin Liu, Mo He
• Keywords: Electrical Properties, Leakage Current, Voltage Gradient, ZnO Varistor Ceramics

References

[1] Weihan Wu, Jinliang He, Yuming Gao. Properties and Applications of Nonlinear Metal Oxide Varistors. Beijing: Tsinghua University Press, (1998)

[2] Caiqing Hung, Hanning Xiao. Research and Development of High Potential Gradient Zinc Oxide Varistor: Materials Review. Vol.22 (2008), p.53

[3] Qun Yan, Jun Tang, et al. Experiment on Optimization of Voltage Stress of ZnO Varistors: Insulators and Surge Arresters. (2003), p.36

[4] Dong Xu, Liyi Shi, et al. The Effect of Heating Rate on Microstructure and Electrical Properties of Varistors Ceramics: Piezoelectectrics & Acoustooptics. (2009), p.244

[5] Qingjian Hou, Guoyu Xue, et al. Effect of Sintering Temperature and Heat-treatment on ZnO Varistor Ceramics: Insulators and Surge Arresters. (2004), p.36

[6] J.OTT, A.LORENE, et al. The Influence of Bi2O3 and Sb2O3 on the Electrical Properties of ZnO-Based Varistors: Journal of Electroceramics. Vol.2 (2001), p.135

[7] Hongyu Liu, Hui Kong, et al. Microstructure and Electrical Properties of Er2O3-Doped ZnO-Based Varistor Ceramics Prepared by High-Energy Ball Milling: Journal of rare earths. (2007), p.120

DOI: 10.1016/s1002-0721(07)60057-x
