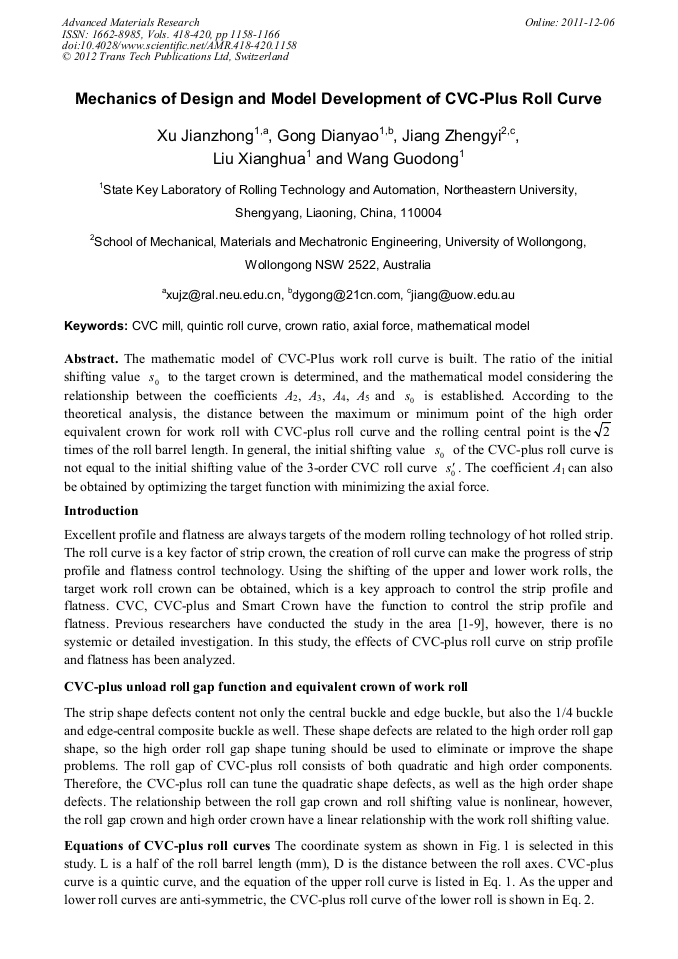

Mechanics of Design and Model Development of CVC-Plus Roll Curve

Abstract:

The mathematic model of CVC-Plus work roll curve is built. The ratio of the initial shifting value to the target crown is determined, and the mathematical model considering the relationship between the coefficients A₂, A₃, A₄, A₅ and is established. According to the theoretical analysis, the distance between the maximum or minimum point of the high order equivalent crown for work roll with CVC-plus roll curve and the rolling central point is the times of the roll barrel length. In general, the initial shifting value of the CVC-plus roll curve is not equal to the initial shifting value of the 3-order CVC roll curve . The coefficient A1 can also be obtained by optimizing the target function with minimizing the axial force.

• Periodical: Advanced Materials Research (Volumes 418-420)
• Pages: 1158-1166
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.418-420.1158
• Online since: December 2011
• Authors: Jian Zhong Xu, Dian Yao Gong, Zheng Yi Jiang, Xianghua Liu, Guo Dong Wang
• Keywords: Axial Force, Crown Ratio, CVC Mill, Mathematical Models, Quintic Roll Curve
