Effect of Heat Input on Structure and Mechanical Properties of Low Matched Welded Joint in a 1000MPa Grade Steel

Abstract:

In order to investigate the effect of heat input on the microstructure and mechanical properties of low matched high-tensile steel welded joint, the metallurgical structure and mechanical properties of welded joint obtained with different heat input were analyzed using optical microscope , welded joint tensile test and impact test of weld metal. The results show that the optimal values are obtained when the heat input is 11.9KJ/cm,where the tensile strength is 798.45MPa and ballistic work is 69J; Weld metal microstructure is mainly composed by the primary ferrite and acicular ferrite. The width of the dendrite and grain size of the weld metal microstructure increase with the increasing of the heat input.

You might also be interested in these eBooks

Materials Processing Technology, ICAMMP2011

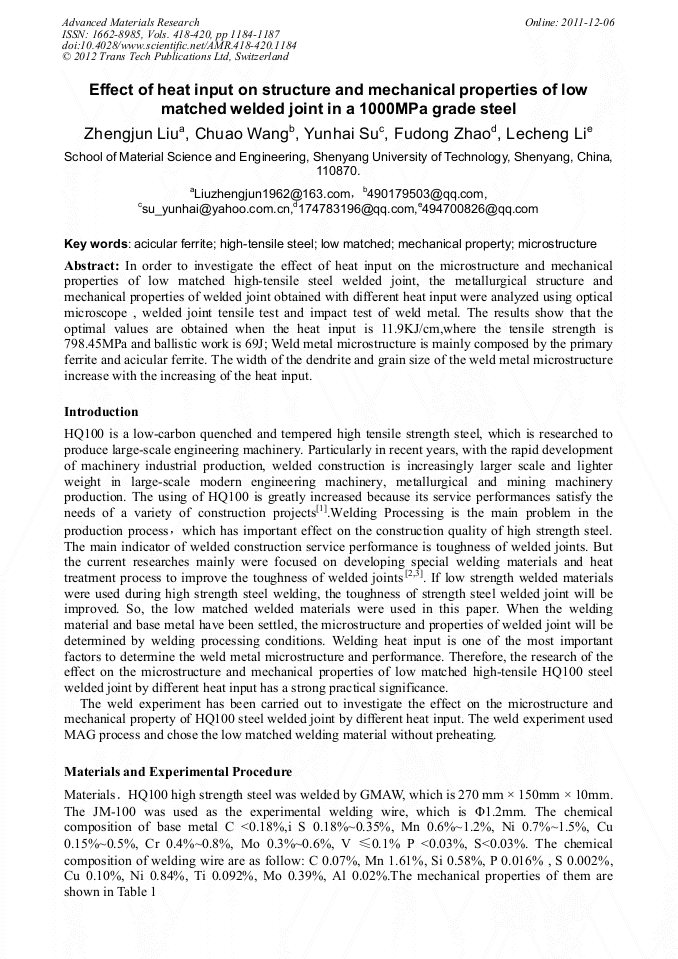

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 418-420)

Pages:

1184-1187

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.418-420.1184

Citation:

Cite this paper

Online since:

December 2011

Authors:

Zheng Jun Liu, Chu Ao Wang, Yun Hai Su, Fu Dong Zhao, Le Cheng Li

Keywords:

Acicular Ferrite, High-Tensile Steel, Low Matched, Mechanical Property, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Li Yajiang ,Wang Juan and Liu Peng:Low-alloy Steel Welding and Engineering Applications, Bei Jing， 2003,In Chinese.

Google Scholar

[2] Liu Zhengjun，Gu Yuxi:The Effect of Postweld Heat Treatment on the Toughness of HQ100 Low-Alloy High-Strength Steel Weld Metal.Journal of Shenyang University of Technology, 2(1990),19-31, In Chinese.

Google Scholar

[3] Dhua S K,Mukerjee D and Sama D S:Weld ablity and icrostructural aspects of shielded metal arc welded HSLA-100 steel plates .ISIJ International, 11(2002), 239-248 ,In Chinese.

DOI: 10.2355/isijinternational.42.290

Google Scholar

[4] Ma Chengyong,Tian Zhiling and Du Zeyu, et al:Effect of heat input on structure and mechanical properties of welded joint in a 800MPa grade RFC steel. Transactions of The China Welding Institution 2（2004）, 23-27,In Chinese.

Google Scholar

[5] Zhang Hanqian:Metallography of steel welded joints, Bei Jing ,2004,In Chinese.

Google Scholar
