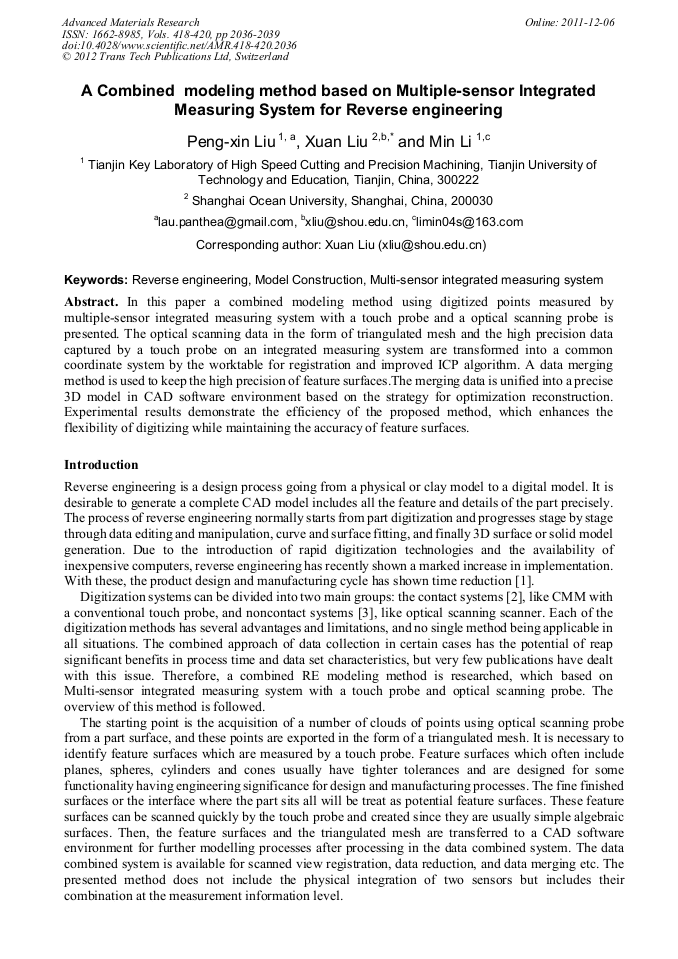

A Combined Modeling Method Based on Multiple-Sensor Integrated Measuring System for Reverse Engineering

Abstract:

In this paper a combined modeling method using digitized points measured by multiple-sensor integrated measuring system with a touch probe and a optical scanning probe is presented. The optical scanning data in the form of triangulated mesh and the high precision data captured by a touch probe on an integrated measuring system are transformed into a common coordinate system by the worktable for registration and improved ICP algorithm. A data merging method is used to keep the high precision of feature surfaces.The merging data is unified into a precise 3D model in CAD software environment based on the strategy for optimization reconstruction. Experimental results demonstrate the efficiency of the proposed method, which enhances the flexibility of digitizing while maintaining the accuracy of feature surfaces.

• Periodical: Advanced Materials Research (Volumes 418-420)
• Pages: 2036-2039
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.418-420.2036
• Online since: December 2011
• Authors: Peng Xin Liu, Xuan Liu, Min Li
• Keywords: Model Construction, Multi-Sensor Integrated Measuring System, Reverse Engineering (RE)

References

[1] Ye, X. Z., Liu, H.Z., and Chen, L., et al. Computer Aided Design(2007)

[2] Z. X. Xie, J. G. Wang,and Q. M. Zhang. Machine Tools & Manufacture (2005)

[3] M. Carbone, M. Carocci, and E.Savio, et al. Advanced Manufacturing Technology (2001)

[4] P. X. Liu. Yang. W. Journal of South China University of Technology (In Chinese) (2009)

[5] K. Wua, M. Yang :Pattern Recognition (2007)

[6] P. X. Liu, Yang. W. Key Engineering Materials. Vol.419-420 (2010)
