For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Structure Design and Interference Analysis of Walking Aids
p.1014
Photocatalytic Degradation of ABR X-3B on TiO2-HZSM-5 Composite
p.1019
Preparation of Epoxy/PEG Shape-Stabilized Phase Change Materials by In Situ Reactive Blending
p.1023
Graphene Oxide Containing Composite Hydrogel Fabricated by Freeze/Thaw Method
p.1028
Performance of Reactive Plasma Cladding TiC Particle Reinforced High Chromium Fe-Based Ceramics Composite Coating
p.1032
Extraction Optimization of Antibacterial Substances from Amomum tsao-ko
p.1036
Preparation of Nano-TiO2 and Performance Study on Photocatalytic Degradation of Methylene Blue
p.1040
HZSM-5 Zeolite Modified by Oxalic Acid and Photocatalytic Activity of Supported TiO2
p.1044
Photocatalytic Degradation Glyphosate with Cerium and Nitrogen Co-Doped TiO2 under Visible Irradiation
p.1048

Performance of Reactive Plasma Cladding TiC Particle Reinforced High Chromium Fe-Based Ceramics Composite Coating

Article Preview

Abstract:

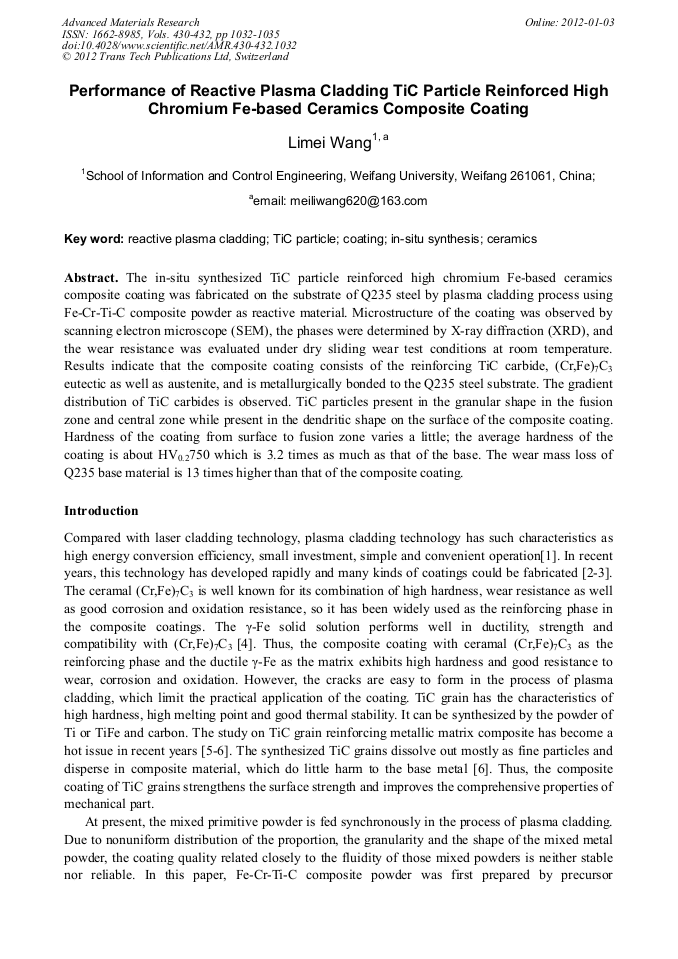

The In Situ Synthesized Tic Particle Reinforced High Chromium Fe-Based Ceramics Composite Coating Was Fabricated on the Substrate of Q235 Steel by Plasma Cladding Process Using Fe-Cr-Ti-C Composite Powder as Reactive Material. Microstructure of the Coating Was Observed by Scanning Electron Microscope (SEM), the Phases Were Determined by X-Ray Diffraction (XRD), and the Wear Resistance Was Evaluated under Dry Sliding Wear Test Conditions at Room Temperature. Results Indicate that the Composite Coating Consists of the Reinforcing Tic Carbide, (Cr,Fe)7C3 Eutectic as Well as Austenite, and Is Metallurgically Bonded to the Q235 Steel Substrate. the Gradient Distribution of Tic Carbides Is Observed. Tic Particles Present in the Granular Shape in the Fusion Zone and Central Zone while Present in the Dendritic Shape on the Surface of the Composite Coating. Hardness of the Coating from Surface to Fusion Zone Varies a Little; the Average Hardness of the Coating Is about HV0.2750 which Is 3.2 Times as much as that of the Base. the Wear Mass Loss of Q235 Base Material Is 13 Times Higher than that of the Composite Coating.

You might also be interested in these eBooks
Frontiers of Advanced Materials and Engineering Technology View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 430-432)

Pages:

1032-1035

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.430-432.1032

Citation:

Cite this paper

Online since:

January 2012

Authors:

Li Mei Wang

Keywords:

Ceramic, Coating, In Situ Synthesis, Reactive Plasma Cladding, TiC Particle

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J. B. Liu, J.H. Huang, L.M. Wang. Acta Meta. Sinica. 18(2005), pp.695-698.

Google Scholar

[2] B. W. LIU, H. Q. LI, Y. Z. SUN. Mater. Sci. and Tech., 14(2006), pp.85-88.

Google Scholar

[3] L. Bourithis, S. Papaefthymiou, G. D. Papadimitriou. App. Sur. Science. 200 (2002), pp.203-206.

Google Scholar

[4] J. B. Liu, J. H. Huang, L. M. Wang. Jour. Uni. Sci. and Tech. Beijing, 13-6 (2006), pp.538-541.

Google Scholar

[5] H. Y. Liu, J. H. Huang, S. Z. Wei, H. Zhang, X. K. Zhao. Jour. Aero. Materials, 27 (2007), pp.23-26.

Google Scholar

[6] J. H. Liu, J. H. Huang, G. X. Song, J. G. Zhang. Pow. Metal. Technology. 23-3 (2005), pp.199-203, in Chinese.

Google Scholar

[7] J. B. Liu, A. P. Liu. Trans. of the Chi. Wel. Institution. 29 (2008), pp.21-24, in Chinese.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
