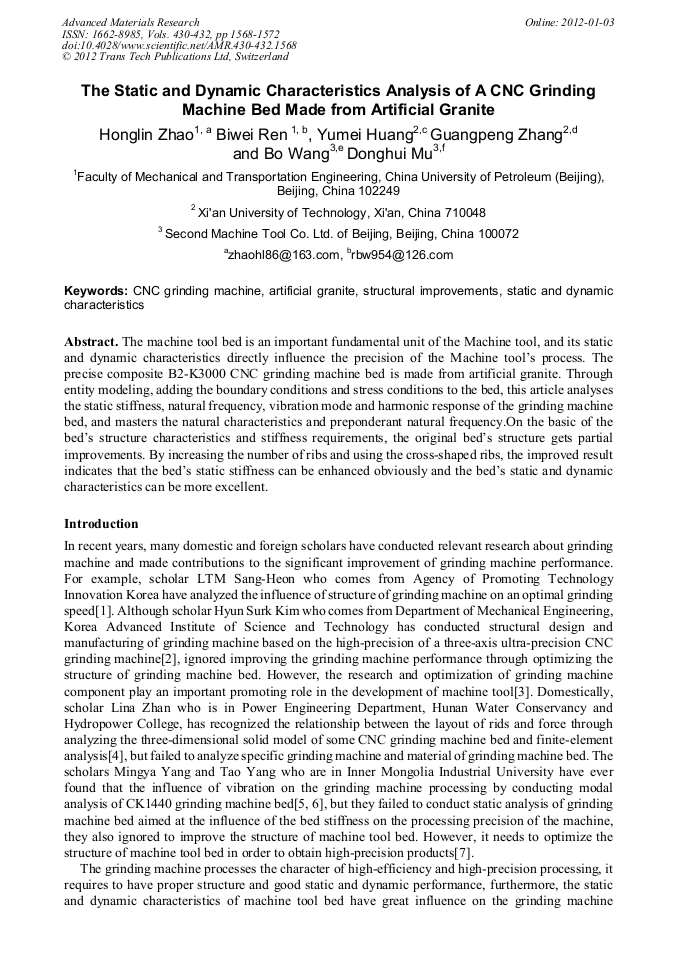

The Static and Dynamic Characteristics Analysis of a CNC Grinding Machine Bed Made from Artificial Granite

Abstract:

The machine tool bed is an important fundamental unit of the Machine tool, and its static and dynamic characteristics directly influence the precision of the Machine tool’s process. The precise composite B2-K3000 CNC grinding machine bed is made from artificial granite. Through entity modeling, adding the boundary conditions and stress conditions to the bed, this article analyses the static stiffness, natural frequency, vibration mode and harmonic response of the grinding machine bed, and masters the natural characteristics and preponderant natural frequency.On the basic of the bed’s structure characteristics and stiffness requirements, the original bed’s structure gets partial improvements. By increasing the number of ribs and using the cross-shaped ribs, the improved result indicates that the bed’s static stiffness can be enhanced obviously and the bed’s static and dynamic characteristics can be more excellent.

• Periodical: Advanced Materials Research (Volumes 430-432)
• Pages: 1568-1572
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.430-432.1568
• Online since: January 2012
• Authors: Hong Lin Zhao, Bi Wei Ren, Yu Mei Huang, Guang Peng Zhang, Bo Wang, Dong Hui Mu
• Keywords: Artificial Granite, CNC Grinding Machine, Dynamic Characteristic, Static Characteristics, Structural Improvements

References

[1] LIM Sang-Heon, KIM Jae-Hyun, LEE Choon-Man, Development of CAD/CAM system and profile measuring device for CNC grinding machine to obtain an optimal grinding speed, J. Cent. SouthUniv. Technol. 18(2011), pp.146-152.

DOI: 10.1007/s11771-011-0672-z

[2] Hyun Surk Kim , Kwang Seop Jeong, Dai Gil Lee, Design and manufacture of a three-axis ultra-precision CNC grinding machine, J. Journal of Materials Processing Technology. 71(1997), pp.258-266.

DOI: 10.1016/s0924-0136(97)00084-8

[3] Jie Tao, Zenghao Xu, Jianfeng Hu, CNC grinding machine tool development abroad, J. Precision Manufacturing and automation. 175(2008), pp.1-3.

[4] Lina Zhan, A modeling and analysis of CNC grinding machine bed, J. Science and Technology Information. 10(2011), p.92.

[5] Mingya Yang, Tao Yang, Hong Yin, The application of finite-element software in modal analysis of grinding machine bed, J. Mechanical and Electrical Engineering. 1(2007), pp.25-27.

[6] Mingya Yang, Tao Yang, Benjin yang, The application of ANSYS in modal analysis of CNC machine tool bed, J. Manufacturing Information of China. 17(2006), pp.40-43.

[7] KIM H S, JEONG K S, LEE G D, Structural design and evaluation of the three axis ultra-precision CNC grinding machine, J. Trans of KSME. 19(1995), pp.3392-3402.

[8] Junkang Guo, Rong Fang, Jun Hong, The structural optimization of broach grinding machine tool bed based on the finite-element analysis, J. Combination Machine Tool and Automated Processing Technology. 1(2011), pp.9-17.
