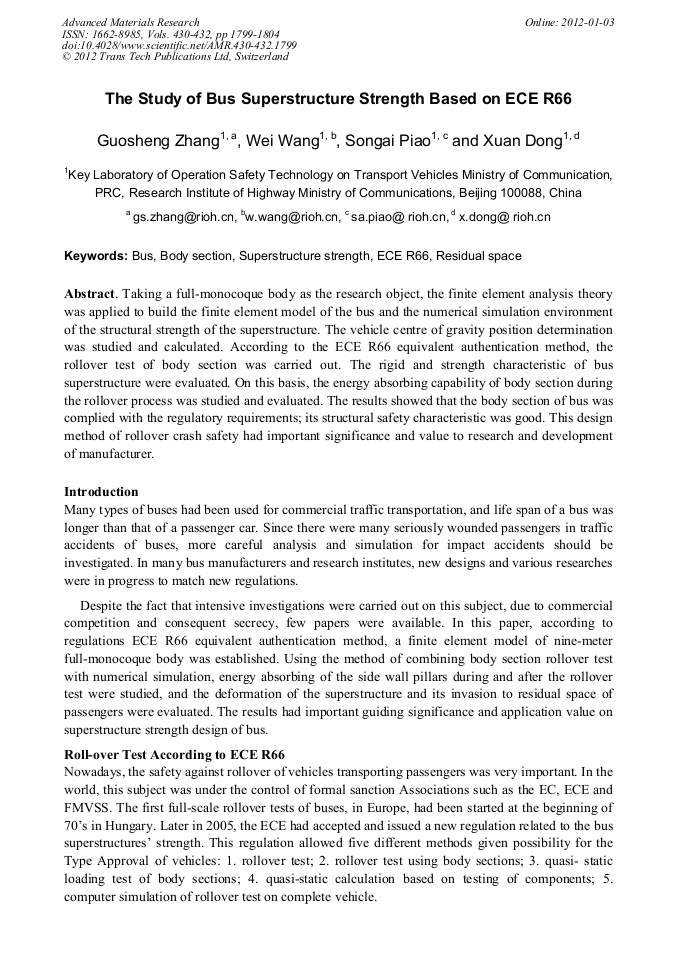

The Study of Bus Superstructure Strength Based on ECE R66

Abstract:

Taking a full-monocoque body as the research object, the finite element analysis theory was applied to build the finite element model of the bus and the numerical simulation environment of the structural strength of the superstructure. The vehicle centre of gravity position determination was studied and calculated. According to the ECE R66 equivalent authentication method, the rollover test of body section was carried out. The rigid and strength characteristic of bus superstructure were evaluated. On this basis, the energy absorbing capability of body section during the rollover process was studied and evaluated. The results showed that the body section of bus was complied with the regulatory requirements; its structural safety characteristic was good. This design method of rollover crash safety had important significance and value to research and development of manufacturer.

• Periodical: Advanced Materials Research (Volumes 430-432)
• Pages: 1799-1804
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.430-432.1799
• Online since: January 2012
• Authors: Guo Sheng Zhang, Wei Wang, Song Ai Piao, Xuan Dong
• Keywords: Body Section, BUS, ECE R66, Residual Space, Superstructure Strength

References

[1] United Nations Economic Commission for Europe ECE/R66/01, Uniform Technical prescriptions concerning the Approval of Large Passenger Vehicles with Regard to the Strength of Their superstructure. Geneva: United Nations Economic Commission for Europe, (2006).

DOI: 10.18356/ddf30969-en

[2] ADR 59, Australian Design Rule 59/00, Omnibus Rollover Strength.

[3] Koppel, S., Charlton, J., Fildes, B. How important was vehicle safety in the new vehicle purchase process?, Accident Analysis and Prevention, Vol. 40 (2008), pp.944-1004.

DOI: 10.1016/j.aap.2007.11.006

[4] Haiou Zhao. LS-DYNA Guide to Dynamic Analysis. Beijing: The publish of weapon industry, 2003, in Chinese.

[5] General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardiaztion Administration Of The people's republic of china. GB 13094-2007 the safety requirements for bus construction. Beijing: China Standards Publishing House, 2007, in Chinese.

[6] Hongfei Yin. Study on Strength of Bus Superstructure and side-rolling Crash Test. HeFei: HeFei University of Technology, (2006), in Chinese.

[7] Dongmei Liu. Analysis of Strength of Bus Body Structure and Its Side-rolling Crash Simulation. Xian: Chang'an University, (2007), in Chinese.

[8] General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, standardization administration of the people's republic of china. GB/T17578-1998 Provisions of Strength for the Superstructure of Bus. Beijing: China Standards Publishing House, (1998).

[9] K. Turgut GÜRSEL, Analysis of the superstructure of a designed bus in accordance with regulations ECE R66. G. U Journal of Science, Vol. 23(1) (2010), pp.71-79.

[10] Giovanni Belingardi, Davide Gastaldin, Paolo Martella. Multibody Analysis of M3 Bus Rollover: Structure Behavior and Passenger Injury Risk，The 18th International Technical Conference on the Enhanced Safety of Vehicle(ESV), Paper Number: 288, (2002).

[11] LS-DYNA Keyword User's Manual, (2003), Version 970.
