Preparation and Tribological Behavior of Carbon Fiber Reinforced Pantograph Slide Plate

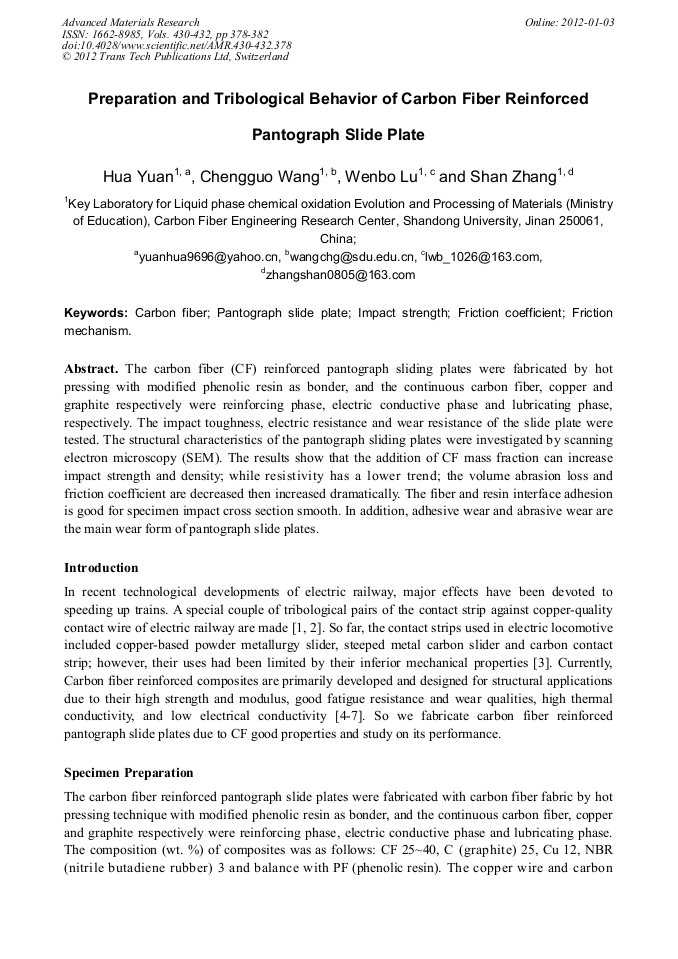

Article Preview

Abstract:

The carbon fiber (CF) reinforced pantograph sliding plates were fabricated by hot pressing with modified phenolic resin as bonder, and the continuous carbon fiber, copper and graphite respectively were reinforcing phase, electric conductive phase and lubricating phase, respectively. The impact toughness, electric resistance and wear resistance of the slide plate were tested. The structural characteristics of the pantograph sliding plates were investigated by scanning electron microscopy (SEM). The results show that the addition of CF mass fraction can increase impact strength and density; while resistivity has a lower trend; the volume abrasion loss and friction coefficient are decreased then increased dramatically. The fiber and resin interface adhesion is good for specimen impact cross section smooth. In addition, adhesive wear and abrasive wear are the main wear form of pantograph slide plates.

You might also be interested in these eBooks
Frontiers of Advanced Materials and Engineering Technology View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 430-432)

Pages:

378-382

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.430-432.378

Citation:

Cite this paper

Online since:

January 2012

Authors:

Hua Yuan, Cheng Guo Wang, Wen Bo Lu, Shan Zhang

Keywords:

Carbon Fiber (CF), Friction Coefficient (FC), Friction Mechanism, Impact Strength, Pantograph Slide Plate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] C.R.F. Azevedo and A. Sinatora: Engineering Failure Analysis Vol. 11 (2004), p.829–841.

Google Scholar

[2] S.G. Jia, P. Liu, F.Z. RenN, B.H. Tian, M.S. Zheng and G.S. Zhou: Wear Vol. 262 (2007), p.772–777.

Google Scholar

[3] A Daoud: Materials science and engineering A Vol. 391 (2005), pp.114-120.

Google Scholar

[4] M.H. Choi, B.H. Jeon and I.J. chung: Polymer Vol. 41 (2000), p.3243–3252.

Google Scholar

[5] Qianqian Shangguan and Xianhua Cheng: Applied surface science Vol. 253 (2007), p.9000–9006.

Google Scholar

[6] Wei Li, Zhenhua Chen, Jin Li, Xianhong Chen, Hao Xuan and Xiaoyi Wang: Materials science and engineering A Vol. 485 (2008), p.481–486.

Google Scholar

[7] P.E. Vickers, J.F. Watts, C. Perruchot and M.M. Chehimi: Carbon Vol. 38 (2000), p.675–689.

Google Scholar

[8] M. Chiarello and R. Zinno: Cement & Concrete Composites Vol. 27 (2005), p.463–469.

DOI: 10.1016/j.cemconcomp.2004.09.001

Google Scholar

[9] D.H. Hea and R. Manory: Wear, Vol. 249 (2001), p.626–636.

Google Scholar
