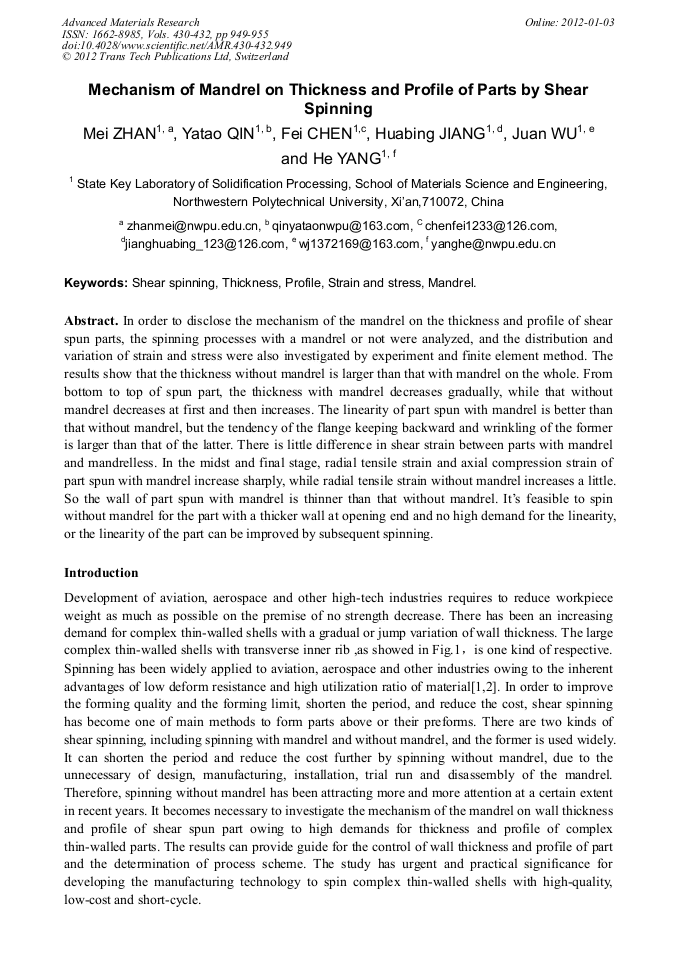

Mechanism of Mandrel on Thickness and Profile of Parts by Shear Spinning

Abstract:

In order to disclose the mechanism of the mandrel on the thickness and profile of shear spun parts, the spinning processes with a mandrel or not were analyzed, and the distribution and variation of strain and stress were also investigated by experiment and finite element method. The results show that the thickness without mandrel is larger than that with mandrel on the whole. From bottom to top of spun part, the thickness with mandrel decreases gradually, while that without mandrel decreases at first and then increases. The linearity of part spun with mandrel is better than that without mandrel, but the tendency of the flange keeping backward and wrinkling of the former is larger than that of the latter. There is little difference in shear strain between parts with mandrel and mandrelless. In the midst and final stage, radial tensile strain and axial compression strain of part spun with mandrel increase sharply, while radial tensile strain without mandrel increases a little. So the wall of part spun with mandrel is thinner than that without mandrel. It’s feasible to spin without mandrel for the part with a thicker wall at opening end and no high demand for the linearity, or the linearity of the part can be improved by subsequent spinning.

• Periodical: Advanced Materials Research (Volumes 430-432)
• Pages: 949-955
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.430-432.949
• Online since: January 2012
• Authors: Mei Zhan, Ya Tao Qin, Fei Chen, Hua Bing Jiang, Juan Wu, He Yang
• Keywords: Mandrel, Profile, Shear Spinning, Strain, Stress, Thickness

References

[1] C. C. Wong, T. A. Dean, J. Lin, A review of spinning, shear spinning and flow forming processes, J. International Journal of Machine Tools and Manufacture. 43 (2003) 1419-1435.

DOI: 10.1016/s0890-6955(03)00172-x

[2] Y. Q. Song, The prospect of successive partial plastic forming, J. China Mechanical engineering. 11 (2000) 65-67. (in Chinese).

[3] M. D. Chen, R. Q Hsu, K. H. Fuh, An analysis of force distribution in shear spinning of cone, J. International Journal of Mechanical Sciences. 47 (2005) 902-921.

DOI: 10.1016/j.ijmecsci.2005.01.010

[4] M. D. Chen, R. Q Hsu, K. H. Fuh, Effects of over-roll thickness on cone layer roughness in shear spinning, J. Journal of Materials Processing Technology. 159 (2005) 1-8.

DOI: 10.1016/j.jmatprotec.2003.07.017

[5] J. H. Zhang, M Zhan, H Yang, Influence of parameters on spinning force and wall thickness defference of shear spinning, J. Materials Science & Technology. 15 (2007) 182-185. (in Chinese).

[6] X. C. Gao, Y. Chen, D. C. Kang, Static FE analysis of conial dieless spun part, J. Materials Science & Technology. 35 (2003); 253-256. (in Chinese).

[7] K. Kawai, L. N. Yang, H. Kudo, A flexible shear spinning of truncated conical shells with a general-purpose mandrel, J. Journal of Materials Processing Technology. 113 (2001), 28-33.

DOI: 10.1016/s0924-0136(01)00630-6

[8] K. Kawai, L. N. Yang, H. Kudo, A flexible shear spinning of axi-symmetrical shells with a general-purpose mandrel, J. Journal of Materials Processing Technology. (2007), 192-193 13-17.

DOI: 10.1016/j.jmatprotec.2007.04.008
