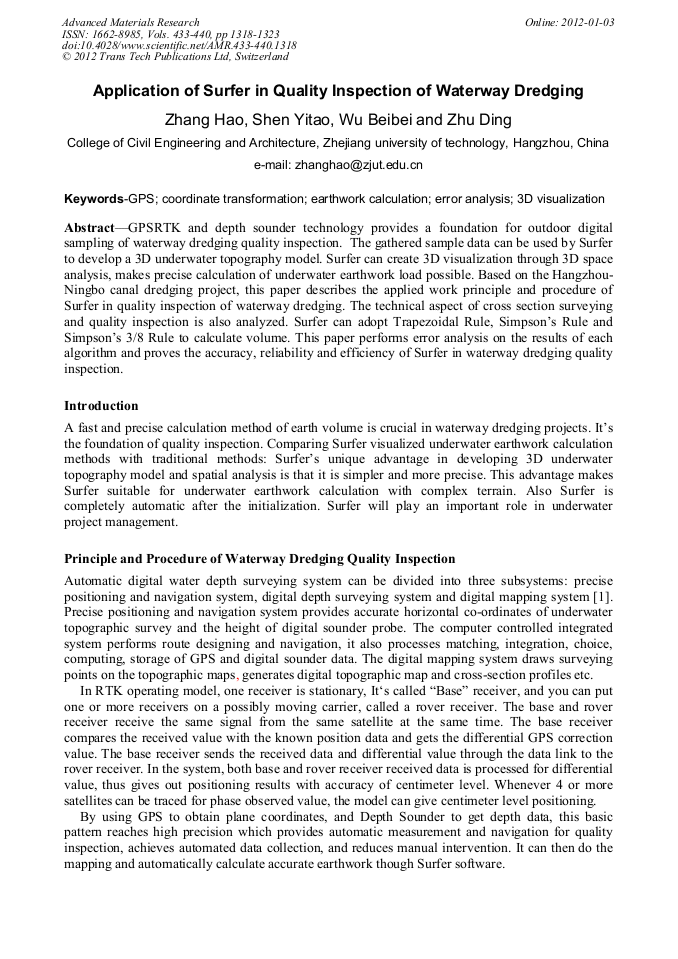

Application of Surfer in Quality Inspection of Waterway Dredging

Abstract:

GPSRTK and depth sounder technology provides a foundation for outdoor digital sampling of waterway dredging quality inspection. The gathered sample data can be used by Surfer to develop a 3D underwater topography model. Surfer can create 3D visualization through 3D space analysis, makes precise calculation of underwater earthwork load possible. Based on the Hangzhou-Ningbo canal dredging project, this paper describes the applied work principle and procedure of Surfer in quality inspection of waterway dredging. The technical aspect of cross section surveying and quality inspection is also analyzed. Surfer can adopt Trapezoidal Rule, Simpson’s Rule and Simpson’s 3/8 Rule to calculate volume. This paper performs error analysis on the results of each algorithm and proves the accuracy, reliability and efficiency of Surfer in waterway dredging quality inspection.

• Periodical: Advanced Materials Research (Volumes 433-440)
• Pages: 1318-1323
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.433-440.1318
• Online since: January 2012
• Authors: Hao Zhang, Yi Tao Shen, Bei Bei Wu, Ding Zhu
• Keywords: 3D Visualization, Coordinate Transformation, Earthwork Calculation, Error Analysis, Global Positioning System (GPS)

References

[1] S. X. Chen, M. C. Chen, Y. M. Jiang, Digital water depth measurement of quality inspection in waterway dredging project , ， [J]. Journal of Zhejiang University of Technology，2008. 8，pp.447-450.

[2] B. F. Zhao, Precision Comparison on Kinds of Methods of GPS Coordinates Transformation to the Local Coordinates System, ，[J]. Surveying and Mapping，2009. 4， pp.188-190.

[3] D. S. Chiu, M. Glenn, O. Kyle, UWB assisted GPS RTK in hostile environments, Proceedings of the Institute of Navigation. 2008. 2. 532-542.

[4] Standard for Quality Inspection of Port and Waterway Engineering Construction, JTS257-2008 [Z] China Communication Press.

[5] Interface programs to enable full 3-D geological modeling with a combination of AutoCAD and SU.

[6] R. Marschallinger, Computers and Geosciences, 1991. 17. 1383-1394.

[7] G. T. Lin, Application of software CASS7. 0 on the earthwork count , [J]. Agriculture Network Information. 2007，8: 143-145.

[8] M. Y. Song, C.G. Zhang, Rapid Drawing Method of Plane Contour Map Based on MapGIS and Surfer, [J]. Chinese Journal of Engineering Geophysics, 2009, 2. pp.244-246.

[9] Y. Y. Luo, L. T. Zhang, Z. A. Chen, Precision analysis of data gridding and calculation of volume based on Surfer, [J]. Science of Surveying and Mapping, 2009, 9. pp.97-99.

[10] T. J. Deng, H. Z. He, Deviation analysis of earthwork calculation with error propagation law, [J]. Journal of Railway Science and Engineering, 2009, 1pp. 69-73.
