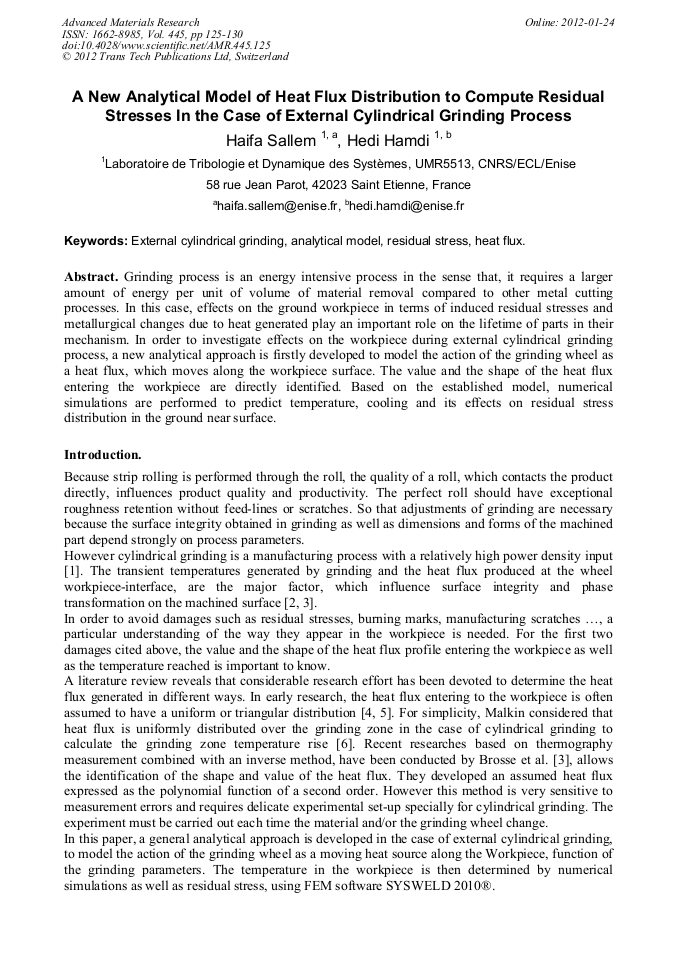

A New Analytical Model of Heat Flux Distribution to Compute Residual Stresses in the Case of External Cylindrical Grinding Process

Abstract:

Grinding process is an energy intensive process in the sense that, it requires a larger amount of energy per unit of volume of material removal compared to other metal cutting processes. In this case, effects on the ground workpiece in terms of induced residual stresses and metallurgical changes due to heat generated play an important role on the lifetime of parts in their mechanism. In order to investigate effects on the workpiece during external cylindrical grinding process, a new analytical approach is firstly developed to model the action of the grinding wheel as a heat flux, which moves along the workpiece surface. The value and the shape of the heat flux entering the workpiece are directly identified. Based on the established model, numerical simulations are performed to predict temperature, cooling and its effects on residual stress distribution in the ground near surface.

• Periodical: Advanced Materials Research (Volume 445)
• Pages: 125-130
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.445.125
• Online since: January 2012
• Authors: Haifa Sallem, Hédi Hamdi
• Keywords: Analytical Model, External Cylindrical Grinding, Heat Flux, Residual Stress

References

[1] Kruszynski, B.W., van Luttervelt, C.A., 1991: An Attempt to Predict Residual Stresses in Grinding of Metals with the Aid of a New Grinding Parameter, Annals of the CIRP, Vol. 0/1: 335-337.

DOI: 10.1016/s0007-8506(07)62000-9

[2] H. Hamdi, H. Zahouani and J. -M. Bergheau, Residual stresses computation in a grinding process, J. Mater. Process. Technol. 147 (2004), p.277–285.

DOI: 10.1016/s0924-0136(03)00578-8

[3] Brosse A, Naisson P, Hamdi H, Bergheau JM (2008) Temperature measurement and heat flux characterization in grinding using thermography. J Mater Process Technol 201(1–3): 590–595.

DOI: 10.1016/j.jmatprotec.2007.11.267

[4] Rowe WB, Black SCE, Mills B, Qi HS, Morgan MN (1995) Experimental investigation of heat transfer in grinding. CIRP Ann Manuf Technol 44(1): 329–332.

DOI: 10.1016/s0007-8506(07)62336-1

[5] Carslaw HS, Jaeger JC (1959) Conduction of heat in solids. Oxford University Press, Oxford.

[6] Malkin, S., 1989. Grinding Technology: Theory and Applications of Machining with Abrasives. Society of Manufacturing Engineers Editions, ISBN 0-87263-480-9.

[7] N. Desruisseaux, Thermal aspect of grinding process, Dissertation, University of Cincinnati, (1968).

[8] Lowin, R.: Schleiftemperaturen und ihre Auswirkungen im Werkstück, PhD-thesis RWTH Aachen University, (1980).

[9] Jae-Seob Kwak et al, An analysis of grinding power and surface roughness in external cylindrical grinding of hardened SCM440 steel using the response surface method, International Journal of Machine Tools and Manufacture, Volume 46, Issue 3-4, March 2006, Pages 304-312.

DOI: 10.1016/j.ijmachtools.2005.05.019

[10] Torbaty, S., and Moisan, A., 1982, Evolution of Residual Stress During Turning and Cylindrical Grinding of a Carbon Steel, CIRP Ann., 31/1, p.441–445.

DOI: 10.1016/s0007-8506(07)63344-7
