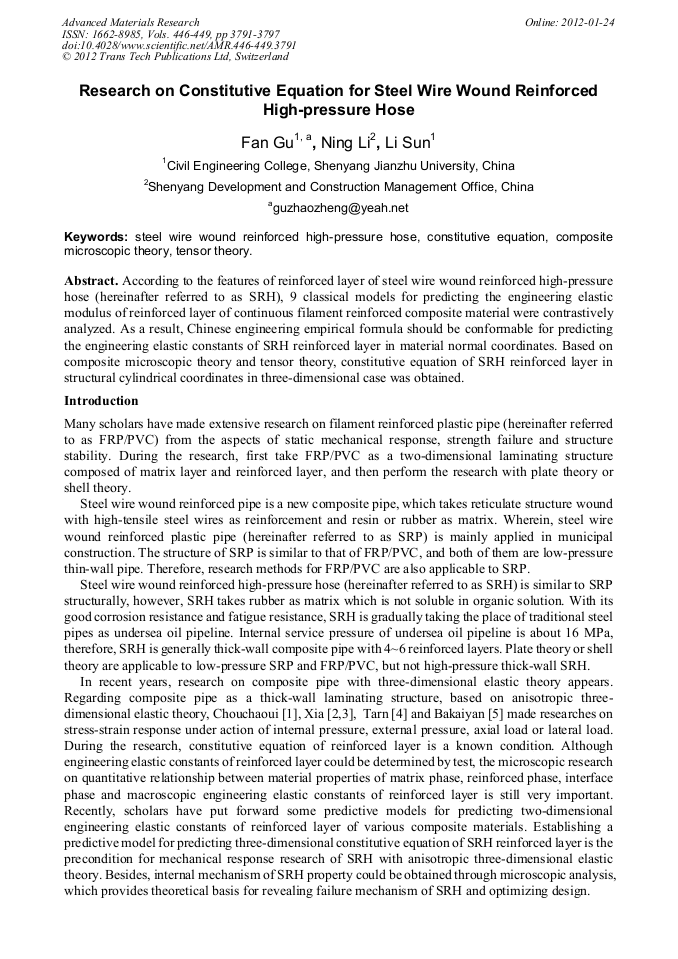

Research on Constitutive Equation for Steel Wire Wound Reinforced High-Pressure Hose

Abstract:

According to the features of reinforced layer of steel wire wound reinforced high-pressure hose (hereinafter referred to as SRH), 9 classical models for predicting the engineering elastic modulus of reinforced layer of continuous filament reinforced composite material were contrastively analyzed. As a result, Chinese engineering empirical formula should be conformable for predicting the engineering elastic constants of SRH reinforced layer in material normal coordinates. Based on composite microscopic theory and tensor theory, constitutive equation of SRH reinforced layer in structural cylindrical coordinates in three-dimensional case was obtained.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 3791-3797
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.3791
• Online since: January 2012
• Authors: Fan Gu, Ning Li, Li Sun
• Keywords: Composite Microscopic Theory, Constitutive Equation, Steel Wire Wound Reinforced High-Pressure Hose, Tensor Theory

References

[1] Chouchaoui C.S., Ochoa: Similitude study for a laminated cylindrical tube under tensile, torsion, bending, internal and external pressure, Composite Structures, Vol. 44, pp.221-229, (1999)

DOI: 10.1016/s0263-8223(98)00068-3

[2] Xia M., Takayanagi H., Kemmochi K.: Analysis of multi-layered filament-wound composite pipes under internal pressure, Composite Structures, Vol. 53, pp.483-491, (2001)

DOI: 10.1016/s0263-8223(01)00061-7

[3] Xia M., Takayanagi H., Kemmochi K.: Analysis of transverse loading for laminated cylindrical pipe, Composite Structures, Vol. 53, pp.279-285, (2001)

DOI: 10.1016/s0263-8223(01)00011-3

[4] Tarn J. Q., Wang Y. M.: Laminated composite tubes under extension, torsion, bending, shearing and pressuring: a state space approach, Int. J. of Solids and Structures, Vol. 38, pp.9053-9075, (2001)

DOI: 10.1016/s0020-7683(01)00170-6

[5] Bakaiyan H., Hosseini H., Ameri E.: Analysis of multi-layered filament-wound composite pipes under combined internal pressure and thermomechanical loading with thermal variations, Composite Structures, Vol. 88, pp.532-543, (2009)

DOI: 10.1016/j.compstruct.2008.05.017

[6] Wang Zhenming: Mechanics of composite materials and composite structures, in Chinese, Beijing: Mechanical Industry Press, (1991)

[7] Wang Yaoxian: Composite structure design, in Chinese, Beijing: Chemical Industry Press, (2001)

[8] Zheng C. X.: Composite pressure vessel, in Chinese, Beijing: Chemical Industry Press, (2006)

[9] Gu Fan, Zhou Jing, et al: Mechanical response of steel wire wound reinforced rubber flexible pipe under internal pressure, J. of Shanghai Jiaotong University, Vol. 14, issue 6, pp.747-756, (2009)

DOI: 10.1007/s12204-009-0747-2
