Comparison of Oscillography Impact Properties between a New Type Drilling Collar Steel and 4145H

Abstract:

Average impact energy of 4145H steel and X new type drilling collar steel satisfied the standard of “SYT5144-2007 Drilling collar” and “API SPEC7”. With temperature getting down, impact energy of 4145H steel decreased, impact energy Cof X drilling collar steel is a lot higher than 4145H steel, crack propagation energy and crack propagation energy/impact energy ratio decreased. Lower temperature leads to higher crack propagation rate. The crack propagation energy of 4145H is lower than X drilling collar steel. The crack propagation energy/impact energy ratios of X drilling collar steel are at least 3% higher than 4145H for different temperature. In drilling, crack growth rate in X DC was slower than 4145H DC, crack growth rate was fast, and the DC was easy to fracture in low temperature

You might also be interested in these eBooks

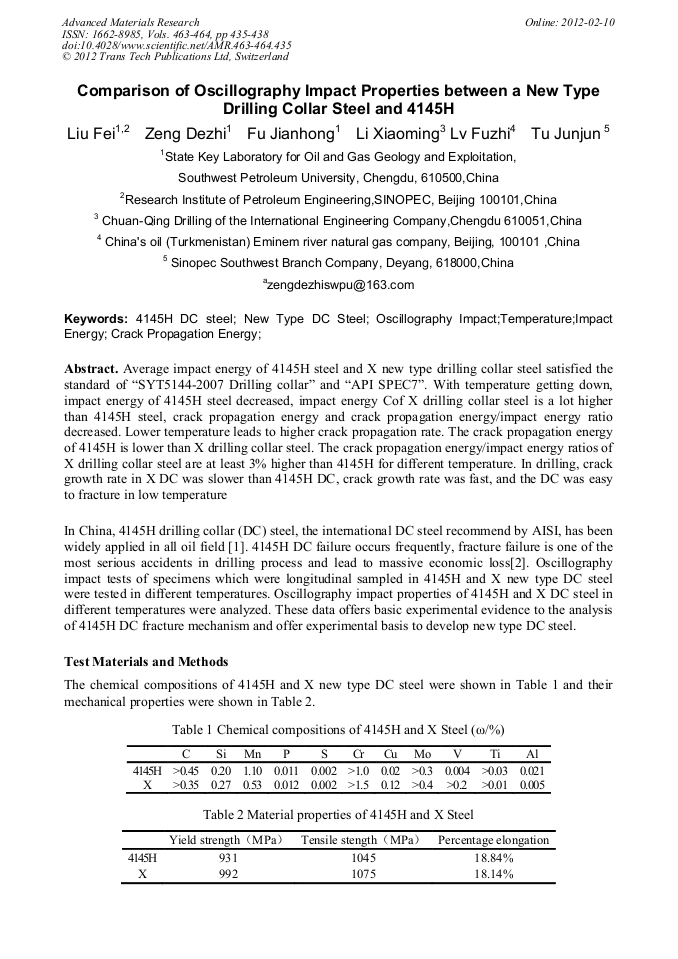

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 463-464)

Pages:

435-438

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.463-464.435

Citation:

Cite this paper

Online since:

February 2012

Authors:

Fei Liu, De Zhi Zeng, Jian Hong Fu, Xiao Ming Li, Fu Zhi Lv, Jun Jun Tu

Keywords:

4145H DC Steel, Crack Propagation Energy, Impact Energy, New Type DC Steel, Oscillography Impact, Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Tang Zheng-hua, Fan Hong-yuan, Li Jing-yuan et-al. Development of Steel for Drill Collar AISI 4145H, Ordance Material Science and Engineering. 1997，20（2）; 52～55.

Google Scholar

[2] Yang Zi-lin, You Hua-jiang, Jian Zong-cheng．Analysis of the cause for drill string failure accidents and the countermeasures．Nature Gas Industry. 2000; 20(3); 57～59.

Google Scholar

[3] GB/T19748-2005 Steel-Charpy V-notch pendulum impact test-instrumented test method. (2005).

DOI: 10.3403/02052562u

Google Scholar

[4] SYT5144-2007 Drill Collar. (2007).

Google Scholar

[5] API SPEC 7. Specification for rotary drill stem element. 40th ed. Washington（DC）: API, 2001-11.

Google Scholar

[6] Wang Bin et-al. Predict ion of Crack Tip Opening Displacement (CTOD) from the Instrumented Impact Test Based on the Local Approach, Journal of Materials Science & Engineering. 2009, 27(6), 946-948.

Google Scholar

[7] Schindler, H.J., Estimation of the dynamic J-R curve from a single impact bend-ing test, Proc. 11th European Conf. on Fracture, Poitiers, 1996, EMAS, London, p.2007-(2012).

Google Scholar

[8] Yu Zai-song et-al. Crack Growth and Propagation Mechanisms of Impact Crack in the Instrumented Impact Test. Foundry Technology. 2008, 29(5), 617-621.

Google Scholar

[9] Schindler, H. J and Tipping, Ph. "Proposed Method for Instrumented Precracked Charpy-Type Tests, Swiss Federal Nuclear Safety Inspectorate (HSK) Report No. HSK-AN-425, Rev. 3, May (2001).

Google Scholar

[10] Zhang Lan et-al. Study on Oscillography Impact Property of AZ31 Magnesium and Its TIG Welded Joints. Rare Metal Materials and Engineering, 2009, 38(3), 175-180.

Google Scholar
