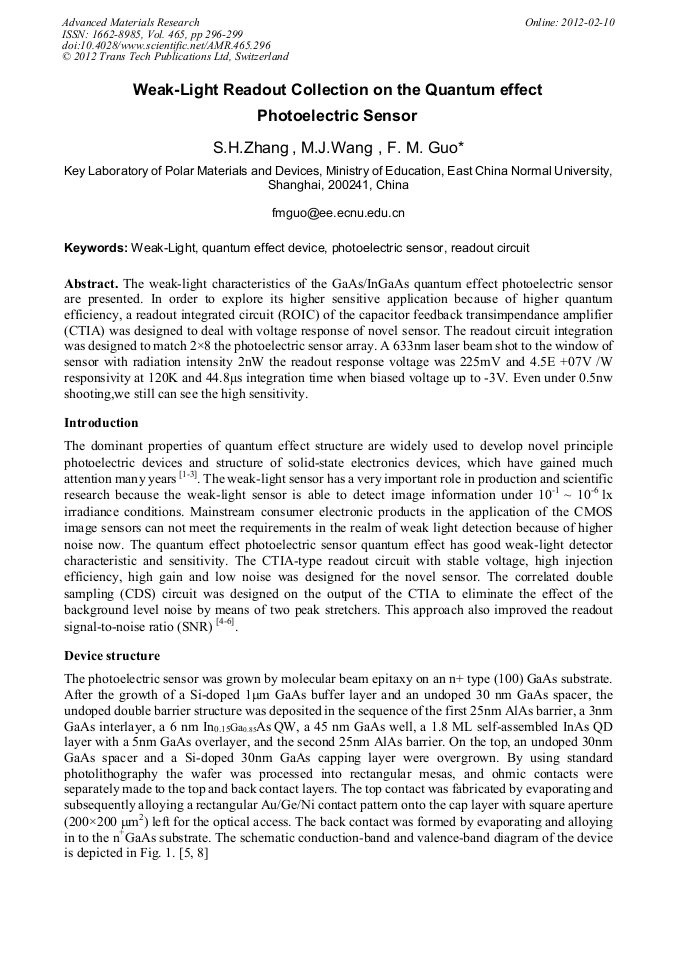

Weak-Light Readout Collection on the Quantum Effect Photoelectric Sensor

Abstract:

The weak-light characteristics of the GaAs/InGaAs quantum effect photoelectric sensor are presented. In order to explore its higher sensitive application because of higher quantum efficiency, a readout integrated circuit (ROIC) of the capacitor feedback transimpendance amplifier (CTIA) was designed to deal with voltage response of novel sensor. The readout circuit integration was designed to match 2×8 the photoelectric sensor array. A 633nm laser beam shot to the window of sensor with radiation intensity 2nW the readout response voltage was 225mV and 4.5E +07V /W responsivity at 120K and 44.8μs integration time when biased voltage up to -3V. Even under 0.5nw shooting,we still can see the high sensitivity.

• Periodical: Advanced Materials Research (Volume 465)
• Pages: 296-299
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.465.296
• Online since: February 2012
• Authors: S.H. Zhang, M.J. Wang, Fang Min Guo
• Keywords: Photoelectric Sensor, Quantum Effect Device, Readout Circuit, Weak-Light

References

[1] S. C Shen, Comparison and competition between MCT and QW structure material for use in IR dectctors, Microelectronics Journal 25(8)(1994) P. 713-739.

DOI: 10.1016/0026-2692(94)90136-8

[2] Ning Li, Fangming Guo, Honglou Zhen, J. Jiang, W. Lu, Y. Fu，Detection wavelengths and photocurrents of very long wavelength quantum-well infrared photodetectors，Infrared Physics & Technology 47 (2005) 29–36.

DOI: 10.1016/j.infrared.2005.02.008

[3] Z.J. Quan X.S. Chen W.D. Hu,Z.H. Ye, Z.F. Li,W. Lu, Modeling of dark characteristics for long-wavelength HgCdTe photodiode, Opticaland Quantum Electronics 38(2006)P. 1107-1113.

DOI: 10.1007/s11082-006-9046-4

[4] S. D. Gunapala, S. V. Bandara, M. Z. Tidrow, et al, Infrared Physics & Technology[J] 47 (2005) P. 67-75.

[5] Sun, X.M.; Zhang, H., Zhu, H., Xu, P., Li, G.R., Liu, J, Zheng H.Z. Highresponsivity resonant cavity enhanced InGaAs/GaAs quantum-dot photosensor for wavelength of 1 mm at room temperature Electronics Letters Volume: 45 , Issue: 6 Digital Object Identifier: 10. 1049/el. 2009. 0033 Publication Year: 2009 , P. 329 – 331.

DOI: 10.1049/el.2009.0033

[6] Hanson, S, ZhiYoong Foo; Blaauw, D., Sylvester, D., A 0. 5 V Sub-Microwatt CMOS Image Sensor With Pulse-Width Modulation Read-Out Solid-State Circuits[J]. IEEE Journal of Volume: 45, Issue: 4, 2010 , P. 759 – 767.

DOI: 10.1109/jssc.2010.2040231

[7] G.Z. Zhan, F.M. Guo, W. Lei, J. Huang and Z.Q. Zhu. A Specific Architectures of CMOS Readout for Resonant-cavity-enhanced Devices[C] Progress in Electromagnetic Research Symposium, PIERS 2008 in Hangzhou, CHINA.

[8] Bing Hu_, Xia Zhou, Yan Tang, Huadong Gan, Hui Zhu, Guirong Li, Houzhi Zheng Photocurrent response in a double barrier structure with quantum dots–quantum well inserted in central well[J]Physica E 33 (2006)P. 355–358.

DOI: 10.1016/j.physe.2006.04.006

[9] Scribner D, Kruer M , Killiany J. Infrared Focal2 Plane Array Technology[J]. Proc. IEEE1991.

[10] Masaki, S., K. Shoji, H. Dwi, N. Mobuo, and H. Mizuho, "A high-sensitivity CMOS image sennsor with gain-adaptive column amplifers[J]. IEEE Journal of Solid-state Circuit, Vol. 40. No. 5, 1147{1156}, May (2005).
