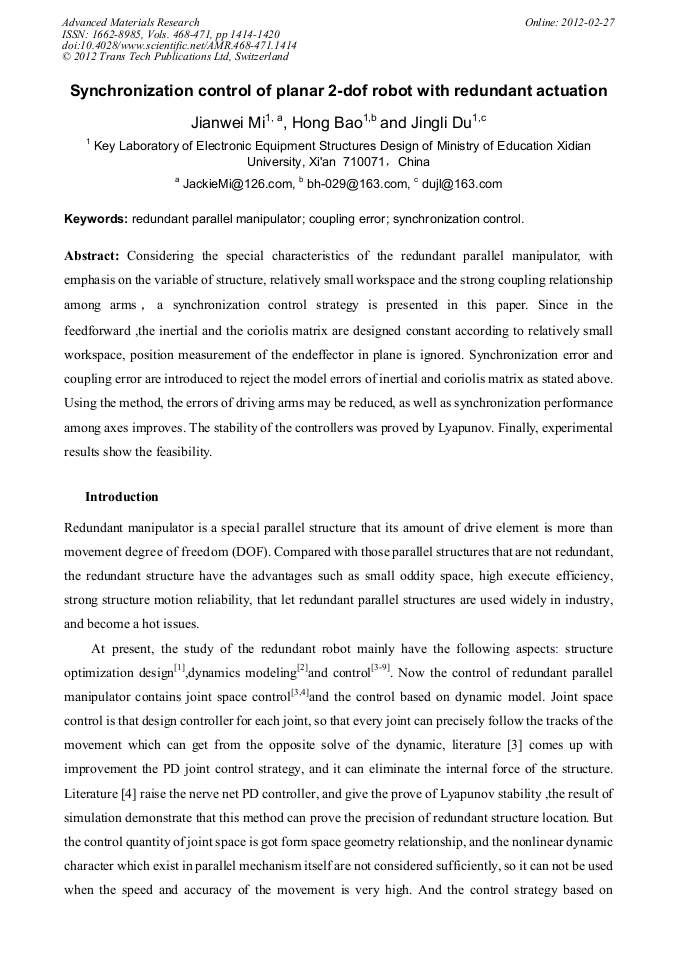

Synchronization Control of Planar 2-Dof Robot with Redundant Actuation

Abstract:

Considering the special characteristics of the redundant parallel manipulator, with emphasis on the variable of structure, relatively small workspace and the strong coupling relationship among arms，a synchronization control strategy is presented in this paper. Since in the feedforward ,the inertial and the coriolis matrix are designed constant according to relatively small workspace, position measurement of the endeffector in plane is ignored. Synchronization error and coupling error are introduced to reject the model errors of inertial and coriolis matrix as stated above. Using the method, the errors of driving arms may be reduced, as well as synchronization performance among axes improves. The stability of the controllers was proved by Lyapunov. Finally, experimental results show the feasibility.

• Periodical: Advanced Materials Research (Volumes 468-471)
• Pages: 1414-1420
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.468-471.1414
• Online since: February 2012
• Authors: Jian Wei Mi, Hong Bao, Jing Li Du
• Keywords: Coupling Error, Redundant Parallel Manipulator, Synchronization Control

References

[1] Zhang lilies，Liu Ying.Optimization design of plane redundancy drive parallel robot [J]. Machine design andresearch,2007, 8 (4): 35-38.

[2] H.cheng, G.F. Liu, Y.K. Yiu. Advantages and Dynamics of Parallel Manipulators with Redundant Actuation. Proceedings of the 2001 IEEE/RSJ International Conference on Intelligent Robots and Systems, Maui, Hawaii, USA, Oct.29-Nov.03, (2001)

DOI: 10.1109/iros.2001.973354

[3] Wu Yulee，Wu Quashing，Li Shenyi.PI control of redundancy parallel mechanism[J]. National university of defense technology Jonurnal,2001 (3): 111-114.

[4] G. Loreto, R. Garrison. Stable Neural PD Controller for Redundantly Actuated Parallel Manipulators with Uncertain Kinematics [J]. 44th IEEE Conference on Decision and Control, 2005, 19(4): 2035-2040.

DOI: 10.1109/cdc.2005.1582460

[5] Hue Cheng, Yiu-Kuen You. Dynamics and control of redundantly actuated parallel manipulators [J]. IEEE/RSJ Transactions on Macaronis, 2003, 8 (4): 483-491.

DOI: 10.1109/tmech.2003.820006

[6] Axon Zhang, Shaun Cong, Sexing Li, Shilling Kiang. Auto-calibration of a Redundant Parallel Manipulator Based on the Projected Tracking Error [J]. Original, 2007, 77(4): 697-706.

DOI: 10.1007/s00419-007-0127-z

[7] A. Muller. Generation and Application of Priestess in Redundantly Full-actuated Parallel Manipulators [J]. Multimode Sits Din, 2007, 18: 259-275.

[8] Y. K. You, Z. X. Li. Dynamics of a Planar 2-dof Redundant Parallel Robot [J]. International Conference on Macaronis Technology, 2001 (6): 339-344.

[9] Y. K. You, Z. X. Li. PID and Adaptive Robust Control of a 2-dof Over-actuated Parallel [J]. IEEE International Symposium on Computational Intelligence in Robotics and Automation, 2003 (7): 1052-1057.

DOI: 10.1109/cira.2003.1222142

[10] Duson, Position synchronization of multiple motion axes with adaptive coupling control, Automatic, 2003, 39: 997-1005

DOI: 10.1016/s0005-1098(03)00037-2
