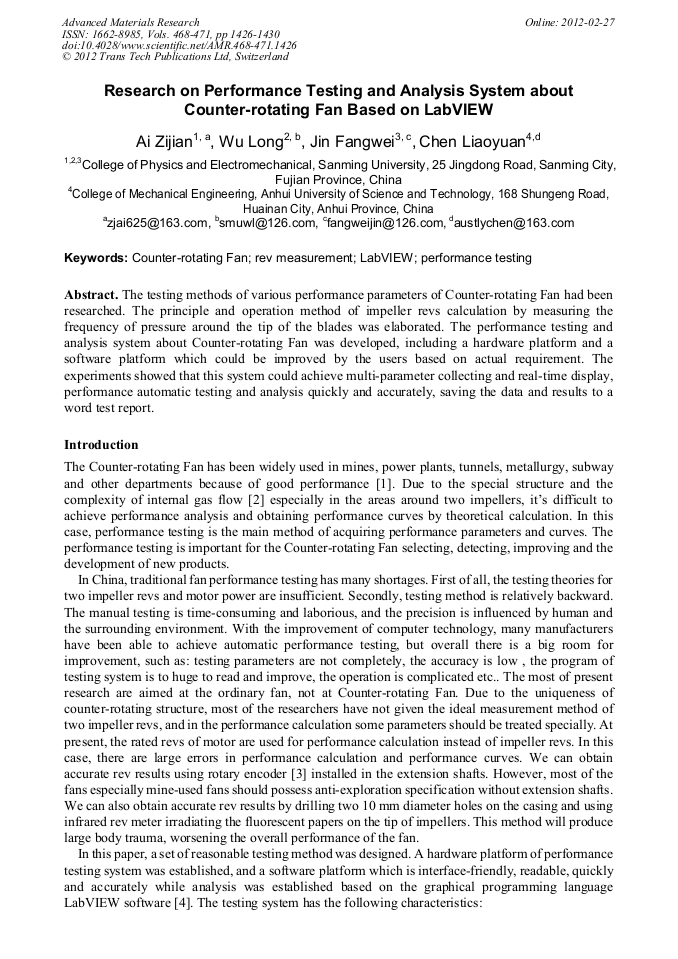

Research on Performance Testing and Analysis System about Counter-Rotating Fan Based on LabVIEW

Abstract:

The testing methods of various performance parameters of Counter-rotating Fan had been researched. The principle and operation method of impeller revs calculation by measuring the frequency of pressure around the tip of the blades was elaborated. The performance testing and analysis system about Counter-rotating Fan was developed, including a hardware platform and a software platform which could be improved by the users based on actual requirement. The experiments showed that this system could achieve multi-parameter collecting and real-time display, performance automatic testing and analysis quickly and accurately, saving the data and results to a word test report.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 468-471)

Pages:

1426-1430

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.468-471.1426

Citation:

Cite this paper

Online since:

February 2012

Authors:

Zi Jian Ai, Long Wu, Fang Wei Jin, Liao Yuan Chen

Keywords:

Counter-Rotating Fan, LabVIEW, Performance Testing, Rev Measurement
