Numerical Simulation Research on Vortex Characteristics of Centrifugal Pump Inlet Recirculation

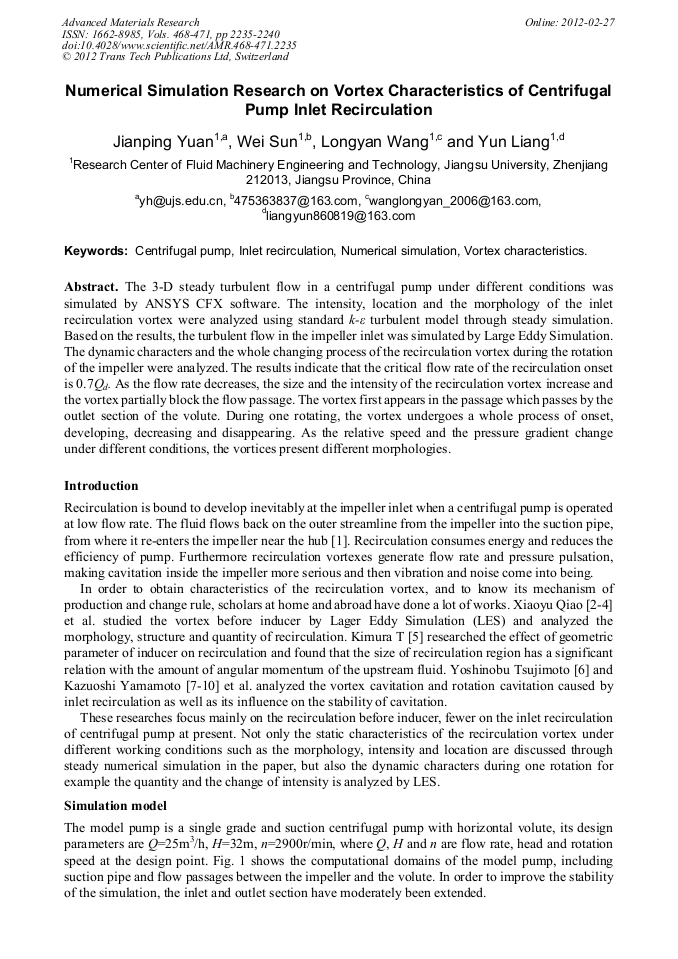

Abstract:

The 3-D steady turbulent flow in a centrifugal pump under different conditions was simulated by ANSYS CFX software. The intensity, location and the morphology of the inlet recirculation vortex were analyzed using standard k-ε turbulent model through steady simulation. Based on the results, the turbulent flow in the impeller inlet was simulated by Large Eddy Simulation. The dynamic characters and the whole changing process of the recirculation vortex during the rotation of the impeller were analyzed. The results indicate that the critical flow rate of the recirculation onset is 0.7Qd. As the flow rate decreases, the size and the intensity of the recirculation vortex increase and the vortex partially block the flow passage. The vortex first appears in the passage which passes by the outlet section of the volute. During one rotating, the vortex undergoes a whole process of onset, developing, decreasing and disappearing. As the relative speed and the pressure gradient change under different conditions, the vortices present different morphologies.

• Periodical: Advanced Materials Research (Volumes 468-471)
• Pages: 2235-2240
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.468-471.2235
• Online since: February 2012
• Authors: Jian Ping Yuan, Wei Sun, Long Yan Wang, Yun Liang
• Keywords: Centrifugal Pump, Inlet Recirculation, Numerical Simulation, Vortex Characteristics

References

[1] Gülich J F. Centrifugal pumps [M]. New York: Springer, 2007.

[2] Xiangyu Qiao, Hironori Horiguchi, Yoshinobu Tsujimoto. Response of backflow to flow rate fluctuation [J]. Journal of Fluids Engineering, Transaction of the ASME, 2007, 129, 350~358.

DOI: 10.1115/1.2427081

[3] Xiangyu Qiao, Horiguchi H, Kato C, Tsujimoto. Numerical study of backflow at the inlet of inducers [C]. Proceesings of the 3rd Int. symp. on fluid engineering, 2001, 1~11.

[4] Nobuhiro Yamanishi, Shinji Fukao, Xiaogyu Qiao. LES simulation of backflow vortex structure at the inlet of an inducer [J]. Journal of Fluids Engineering, Transaction of the ASME, 2007, 129:587~594.

DOI: 10.1115/1.2717613

[5] Kimura T, Yoshida Y, Shimagaki. Relation between geometries of inducer inlet and backflow and vortex structures [J]. 2006, AIAA 2004-4022.

DOI: 10.2514/6.2004-4022

[6] Tsujimoto Y, Kamijo K, Brennen C E. Unified treatment of cavitation instabilities of turbomachines [J]. Journal of Propulsation Power, 2001, 17(3):636~643.

DOI: 10.2514/2.5790

[7] Kazuyoshi Yamamoto, Yoshinobu Tsujimoto. Backflow vortex cavitation and its effects on cavitation instabilities [J]. International Journal of Fluid Machinery and Systems, 2009, 2(1):40~54.

DOI: 10.5293/ijfms.2009.2.1.040

[8] Kazuyoshi Yamamoto. Instablity in a cavitation centrifugal pump(1st Report, Classification of instability phenomena & vibration characteristics) [J]. Transaction of JSME, Series B, 56(523):82~89.

[9] Kazuyoshi Yamamoto. Instablity in a cavitation centrifugal pump（2nd Report, Delivery of mechanical energy during oscillation）[J]. Transaction of JSME, Series B, 56(523):90~96.

[10] Kazuyoshi Yamamoto. Instablity in a cavitation centrifugal pump(3rd Report, Mechanism of low-cycle system oscillation) [J]. Transaction of JSME, Series B, 58(545):180~186.
