Effect of N2 Partial Pressure on the Microstructure and Texture of MgO Films Deposited by Rf-Magnetron Sputtering

S.C. Chen; Po Cheng Kuo; Chih Long Shen; Y.H. Fang; K.T. Huang; G.P. Lin; W.H. Hong

doi:10.4028/www.scientific.net/AMR.47-50.588

Paper Titles

Structure, Magnetic and Transport Properties of Mn_xGe_1-x
p.570

Asymptotic Derivation of a Curved Piezoelectric Interface Model and Homogenization of Piezoelectric Composites
p.575

Microstructures and Magnetic Properties of Nanocomposite FePt Multilayer Films
p.579

Microstructures and Magnetic Properties of Sputtered Expitaxial Co₃Pt/Pt Multilayer Films
p.583

Effect of N₂ Partial Pressure on the Microstructure and Texture of MgO Films Deposited by Rf-Magnetron Sputtering
p.588

Tensile and Fatigue Testings of Hybrid Al/APC-2 Nanocomposite Laminates at Elevated Temperature
p.592

Effect of Tin Content on the Microstructure and Property of Brazed WC-Co/CrMo Alloy Steel Joints
p.596

Structural and Magnetic Properties of Cobalt and Aluminum Co-Doped ZnO Powders
p.600

Resorbable Metallic Implant: Findings from an Animal Model
p.604

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 47-50Effect of N2 Partial Pressure on the...

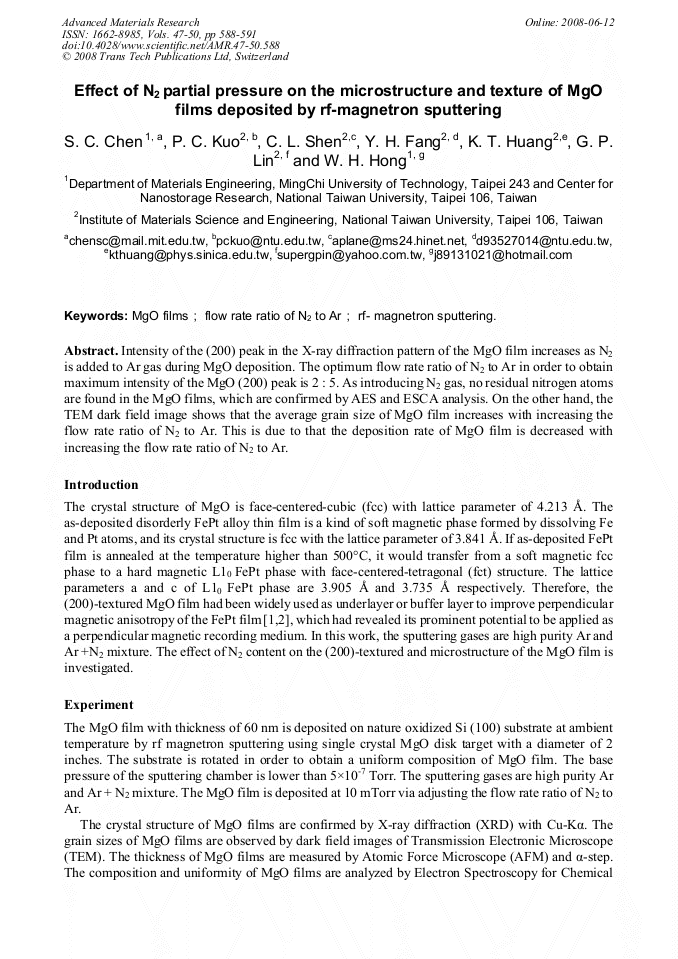

Effect of N₂ Partial Pressure on the Microstructure and Texture of MgO Films Deposited by Rf-Magnetron Sputtering

Abstract:

Intensity of the (200) peak in the X-ray diffraction pattern of the MgO film increases as N2 is added to Ar gas during MgO deposition. The optimum flow rate ratio of N2 to Ar in order to obtain maximum intensity of the MgO (200) peak is 2 : 5. As introducing N2 gas, no residual nitrogen atoms are found in the MgO films, which are confirmed by AES and ESCA analysis. On the other hand, the TEM dark field image shows that the average grain size of MgO film increases with increasing the flow rate ratio of N2 to Ar. This is due to that the deposition rate of MgO film is decreased with increasing the flow rate ratio of N2 to Ar.
