Study on Electrophoretic Deposition Characteristics of Ultra-Fine Diamond Powder

Xian Yan Mao; Jing Lu; Hua Guo

doi:10.4028/www.scientific.net/AMR.472-475.2702

Paper Titles

Synthesis of Double Alkyl EO/PO Random Copolyethers with KOH Catalyst
p.2681

The Preparation and the Research on Self-Cleaning Coating
p.2686

Reliability Analysis Based on Long Flatcars
p.2691

Visual Monitoring System of Steel-Cord Conveyor Belt
p.2698

Study on Electrophoretic Deposition Characteristics of Ultra-Fine Diamond Powder
p.2702

Study Affection of Nano-Al₂O₃ Additive on the Corrosion Resistance of Micro-Arc Oxidation Film of Titanium Alloy TC4
p.2707

The Simulation Analysis of Ball Screw Pair Contact Characteristics Based on ADAMS
p.2712

Vibration Analysis of Radial Drilling Machine Structure Using Finite Element Method
p.2717

Strength and Modal Analysis of Thin-Shell-Structured Vessel with Rib Reinforcement
p.2722

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 472-475Study on Electrophoretic Deposition...

Study on Electrophoretic Deposition Characteristics of Ultra-Fine Diamond Powder

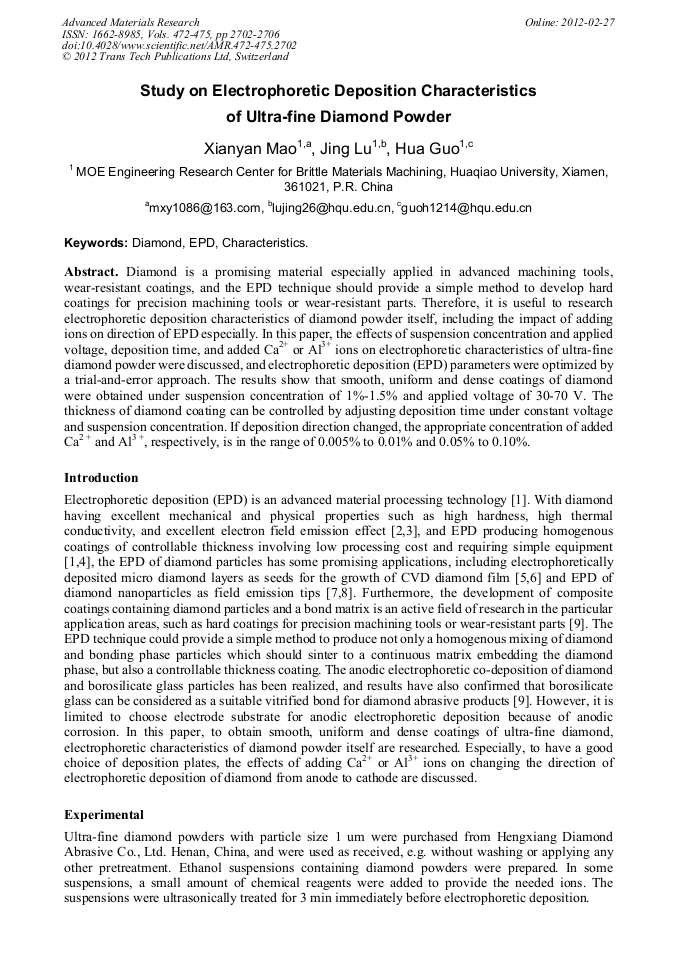

Abstract:

Diamond is a promising material especially applied in advanced machining tools, wear-resistant coatings, and the EPD technique should provide a simple method to develop hard coatings for precision machining tools or wear-resistant parts. Therefore, it is useful to research electrophoretic deposition characteristics of diamond powder itself, including the impact of adding ions on direction of EPD especially. In this paper, the effects of suspension concentration and applied voltage, deposition time, and added Ca2+ or Al3+ ions on electrophoretic characteristics of ultra-fine diamond powder were discussed, and electrophoretic deposition (EPD) parameters were optimized by a trial-and-error approach. The results show that smooth, uniform and dense coatings of diamond were obtained under suspension concentration of 1%-1.5% and applied voltage of 30-70 V. The thickness of diamond coating can be controlled by adjusting deposition time under constant voltage and suspension concentration. If deposition direction changed, the appropriate concentration of added Ca2 + and Al3 +, respectively, is in the range of 0.005% to 0.01% and 0.05% to 0.10%.
