Effect of VC/Cr₃C₂ Additions on Microstructure and Mechanical Properties of WC-16TiC-XTaC-10Co Ultrafine Cemented Carbides

Abstract:

In this paper, the WC-16TiC-xTaC-10Co mixture mixed by WC 0.52μm, (W, Ti, Ta)C 2.9μm and Co1.36μm and prepared by high-energy ball milling, changed the VC and Cr3C2 adding amount. After ball milling for 60 hours, an average particle size of 220nm powder was prepared and it was cold isostatic pressed at 300MPa and vacuum sintered at 1410°C. The physical properties and the micrographs of samples were detected. The main conclusions are as follow: the coercivity and hardness increase and Cobalt magnetic decreases with the content of Cr3C2 increasing, the transverse rupture strength (TRS) does not vary. The VC and Cr3C2 inhibit the growth of WC grain, but can’t inhibite the (W, Ti, Ta)C grain growth effectively.

You might also be interested in these eBooks

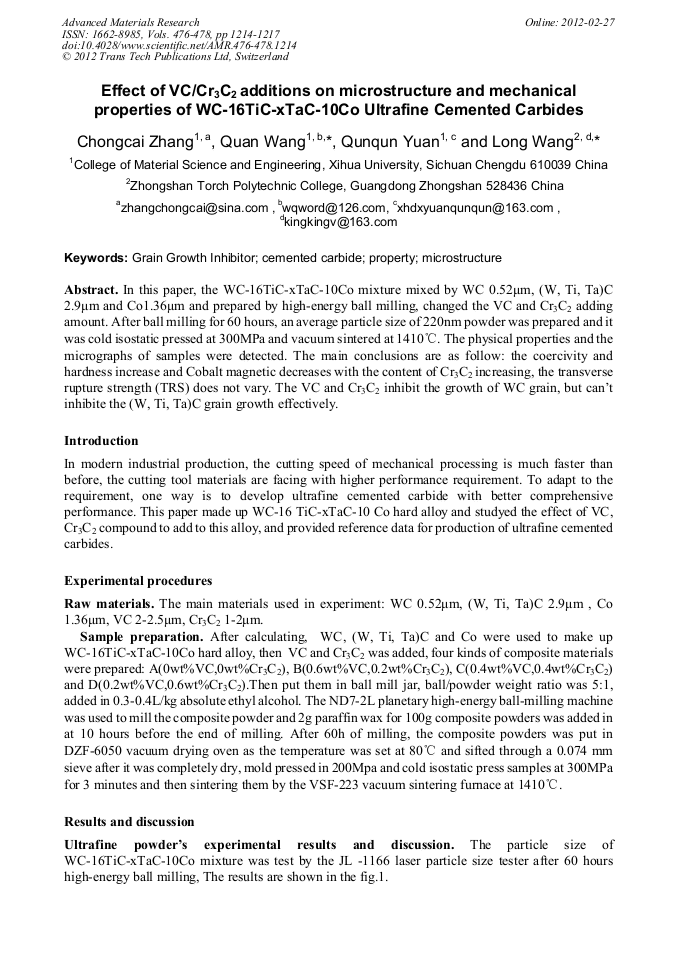

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 476-478)

Pages:

1214-1217

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.476-478.1214

Citation:

Cite this paper

Online since:

February 2012

Authors:

Chong Cai Zhang, Quan Wang, Qun Qun Yuan, Long Wang

Keywords:

Cemented Carbide, Grain Growth Inhibitor, Microstructure, Property Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Enxi Wu, Yiwen Lei. Effect of grain growth inhibitors additions on microstructure of ultrafine cemented carbide. Cemented carbide Vol.19 (3) (2002), pp.136-139 (in Chinese)

Google Scholar

[2] Shourong Liu. The mechanism of TaC and Cr3C2 on WC-Co cemented carbide. Rare Metal Materials and Engineering Vol.26 (2) (1997), pp.31-35 (in Chinese)

Google Scholar

[3] Farid Akhtar, Islam S.Humail, S.J. Askari etc. Effect of WC particle size on the microstructure, mechanical properties and fracture behavior of WC-(W, Ti, Ta)C-6wt%Co Cemented carbides. International Journal of Refractory Metals & Hard Materials Vol. 25(2007), pp.405-410

DOI: 10.1016/j.ijrmhm.2006.11.005

Google Scholar

[4] Shuzhen Liu. Effect of inhibitors additions on the microstructure of ultrafine cemented carbide. Rare Metal and Cemented Carbide Vol.35 (4) (2007), pp.51-56 (in Chinese)

Google Scholar

[5] Chongcai Zhang, Qunqun Yuan, Quan Wang etc. Effect of TaC on W-Ti-Co Ultrafine Cemented Carbides. Advanced Materials Research Vol. 306-307 (2011), pp.598-602

DOI: 10.4028/www.scientific.net/amr.306-307.598

Google Scholar
