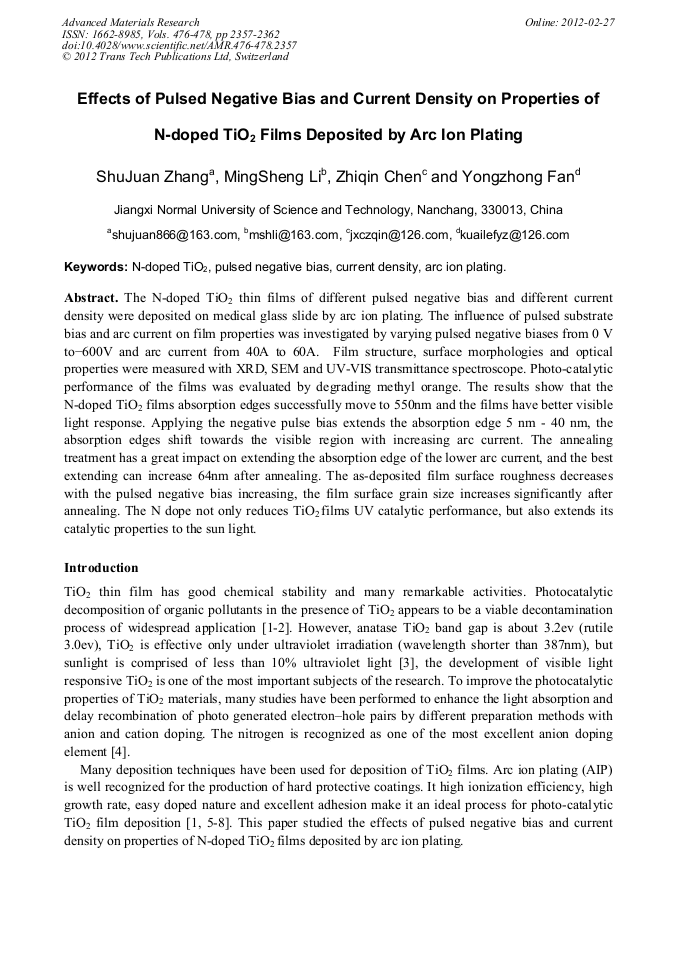

Effects of Pulsed Negative Bias and Current Density on Properties of N-Doped TiO₂ Films Deposited by Arc Ion Plating

Abstract:

The N-doped TiO₂ thin films of different pulsed negative bias and different current density were deposited on medical glass slide by arc ion plating. The influence of pulsed substrate bias and arc current on film properties was investigated by varying pulsed negative biases from 0 V to−600V and arc current from 40A to 60A. Film structure, surface morphologies and optical properties were measured with XRD, SEM and UV-VIS transmittance spectroscope. Photo-catalytic performance of the films was evaluated by degrading methyl orange. The results show that the N-doped TiO₂ films absorption edge successfully moved to 550nm and the films had better visible light response. Applying the negative pulse bias extended the absorption edge 5 nm - 40 nm, the absorption edge shifted towards the visible region with increasing arc current. The annealing treatment had a great impact on extending the absorption edge of the lower arc current, and the best extending can increase 64nm after annealing. The film surface roughness decreased with the increase of pulse negative bias, and the film surface grain size increased significantly after annealing. The N-doped TiO₂ film not only reduced the UV catalytic performance, but also extended its catalytic properties to the sun light.

• Periodical: Advanced Materials Research (Volumes 476-478)
• Pages: 2357-2362
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.476-478.2357
• Online since: February 2012
• Authors: Shu Juan Zhang, Ming Sheng Li, Zhi Qin Chen, Yong Zhong Fan
• Keywords: Arc Ion Plating, Current Density, N-Doped TiO₂, Pulsed Negative Bias

References

[1] J.T. Chang, Y.F. Lai and J.L.He: Surface& coating Technology Vol. 200 (2005), p.1640.

[2] Min Zhang, Guoqiang Lin, Chuang Dong and LiSi Wen: Surface& coating Technology Vol. 201 (2007), p.7252.

[3] Xiaoling Cheng, Shejun Hu and Peng Zeng: Surface& coating Technology Vol. 201 (2007), p.5552.

[4] ShinyaHigashimoto,Wataru Tanihata: Applied Catalysis A:General, ,Vol.340 (2008),p.98.

[5] H.Yumoto, S.Matsudo and K.Akashi: Vacuum Vol. 65 (2002), p.509.

[6] H.L. Qin, G.B. Gu and Song Liu: Ecology and Environment, Vol. l5 (2006), p.720.

[7] Shu Juan Zhang, Ming Sheng Li, Zhi qin chen: Advanced Materials Research Vol. 345 (2012), p.88.Online available since 2011/Sep/27.

[8] Li Mingsheng, Zhang Shujuan, Loujin: Tran. Nonferrous Met. Soc. China.Vol.17 (2007) p.829.
