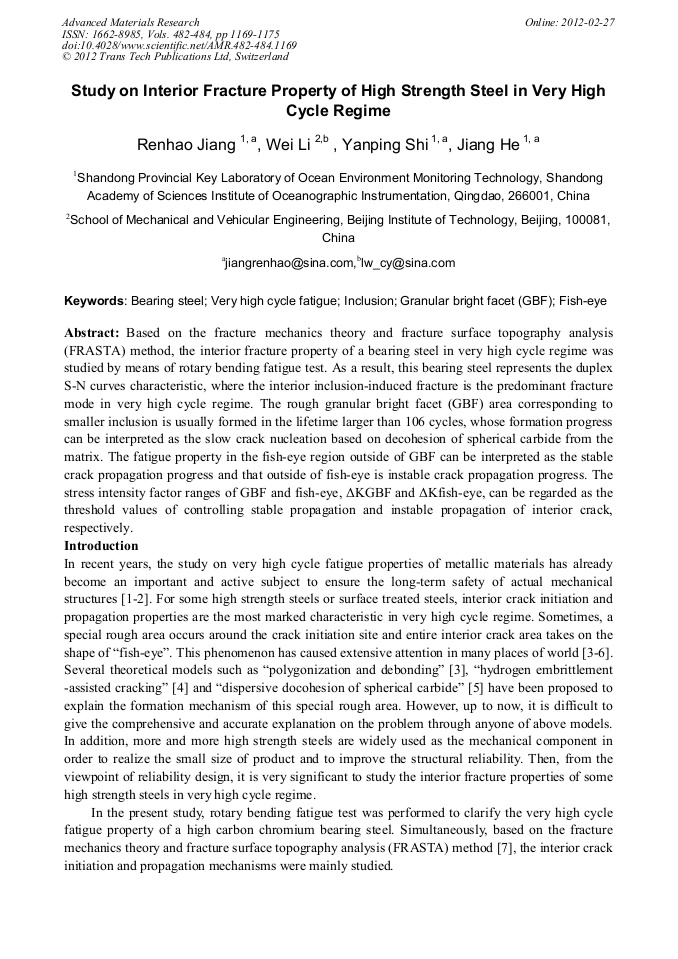

Study on Interior Fracture Property of High Strength Steel in Very High Cycle Regime

Abstract:

Based on the fracture mechanics theory and fracture surface topography analysis (FRASTA) method, the interior fracture property of a bearing steel in very high cycle regime was studied by means of rotary bending fatigue test. As a result, this bearing steel represents the duplex S-N curves characteristic, where the interior inclusion-induced fracture is the predominant fracture mode in very high cycle regime. The rough granular bright facet (GBF) area corresponding to smaller inclusion is usually formed in the lifetime larger than 106 cycles, whose formation progress can be interpreted as the slow crack nucleation based on decohesion of spherical carbide from the matrix. The fatigue property in the fish-eye region outside of GBF can be interpreted as the stable crack propagation progress and that outside of fish-eye is instable crack propagation progress. The stress intensity factor ranges of GBF and fish-eye, ΔKGBF and ΔKfish-eye, can be regarded as the threshold values of controlling stable propagation and instable propagation of interior crack, respectively.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 1169-1175
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.1169
• Online since: February 2012
• Authors: Ren Hao Jiang, Wei Li, Yan Ping Shi, Jiang He
• Keywords: Bearing Steel, Fish-Eye, Granular Bright Facet (GBF), Inclusion, Very High Cycle Fatigue (VHCF)

References

[1] Bathias C. There is no infinite fatigue life in metallic materials[J]. Fatigue Fract Eng Mater Struct, 1999, 22 (7):559-65.

DOI: 10.1046/j.1460-2695.1999.00183.x

[2] Stanzl-Tshegg SE. Fracture mechanisms and fracture mechanics at ultrasonic frequencies[J]. Fatigue Fract Eng Mater Struct, 1999, 22 (7): 567-79.

DOI: 10.1046/j.1460-2695.1999.00180.x

[3] Murakami Y, Nomoto T, Ueda T, Ohtori M. Analysis of the mechanism of superlong fatigue failure by optical microscope and SEM/AFM observations[J]. J Soc Mat Sci Jpn, 1999, 48 (10):1112-17.

DOI: 10.2472/jsms.48.1112

[4] Sakai T, Takeda M, Tanaka N, et al. S-N property and fractograghy of high carbon chromium bearing steel over ultra wide life region under rotary bending[J]. Trans JSME, 2001, 67A (663): 1805-12.

[5] Shiozawa K, Lu L T, Ishihara S. S-N curve characteristics and subsurface crack initiation behavior in ultra-long life fatigue of a high carbon-chromium bearing steel[J]. Fatigue Fract Eng Mater Struct, 2001, 24 (12): 781-90.

DOI: 10.1046/j.1460-2695.2001.00459.x

[6] Yang Z G, Li S X, Liu Y B, et al. Estimation of the size of GBF on fracture surface for high strength steels in very high cycle fatigue regime[J]. Int J Fatigue, 2008, 30 (3): 1016-23.

DOI: 10.1016/j.ijfatigue.2007.08.011

[7] Kobayashi T, Giovanola J H. Crack opening profile observation for dynamic cleavage crack propagation and arrest[J]. Journal of the Mechanics and Physics of Solids, 1989, 37 (6): 759-77.

DOI: 10.1016/0022-5096(89)90018-5

[8] LI Wei, LI Qiang, LU Lian-Tao, et al. Research on the very high cycle fatigue behavior of GCr15 steel in different load frequency[J]. Transactions of Materials and Heat Treatment, 2008, 29 (6):53-7.

[9] Murakami Y, Kodama S, Konuma S. Quantitative evaluation of effect of nonmetallic inclusions on fatigue strength of high strength steel[J]. Trans Jpn Soc Mech Eng, 1988; 54 (500): 688-95.

[10] LU Lian-Tao, LI Wei, ZHANG Ji-Wang, et al. analysis of rotary bending gigacycle fatigue properties of bearing steel GCr15[J]. Acta Metallurgica Sinica, 2009, 45 (1):73-8.

[11] Murakami Y, Nomoto T, Ueda T, Murakami Y. On the mechanism of fatigue failure in the superlong life regime (>107 cycles). Part I: influence of hydrogen trapped by inclusions[J]. Fatigue Fract Eng Mater Struct, 2000, 23 (11): 893-902.

DOI: 10.1046/j.1460-2695.2000.00328.x

[12] ZHENG Su-Ling, ZHANG Lan-Ping. The effect and estimation of crack size of SL technology on KIC and ΔKth of bearing steel GCr15[J]. Coal Technology, 2002, 21 (9): 58-59.
