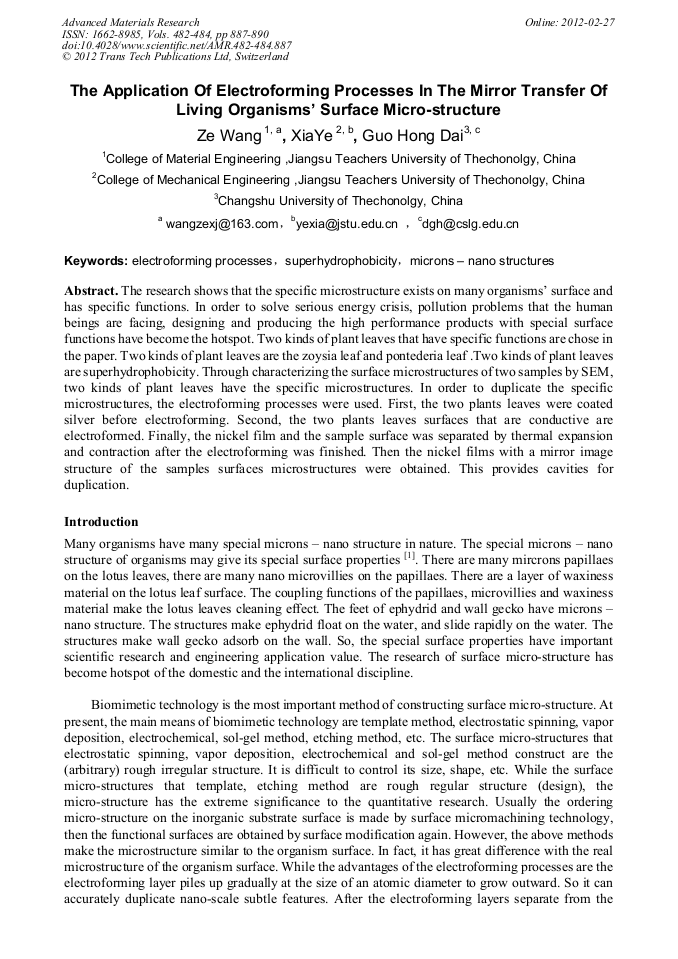

The Application of Electroforming Processes in the Mirror Transfer of Living Organisms’ Surface Micro-Structure

Abstract:

Abstract. The research shows that the specific microstructure exists on many organisms’ surface and has specific functions. In order to solve serious energy crisis, pollution problems that the human beings are facing, designing and producing the high performance products with special surface functions have become the hotspot. Two kinds of plant leaves that have specific functions are chose in the paper. Two kinds of plant leaves are the zoysia leaf and pontederia leaf .Two kinds of plant leaves are superhydrophobicity. Through characterizing the surface microstructures of two samples by SEM, two kinds of plant leaves have the specific microstructures. In order to duplicate the specific microstructures, the electroforming processes were used. First, the two plants leaves were coated silver before electroforming. Second, the two plants leaves surfaces that are conductive are electroformed. Finally, the nickel film and the sample surface was separated by thermal expansion and contraction after the electroforming was finished. Then the nickel films with a mirror image structure of the samples surfaces microstructures were obtained. This provides cavities for duplication.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 887-890
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.887
• Online since: February 2012
• Authors: Ze Wang, Xia Ye, Guo Hong Dai
• Keywords: Electroforming Processes, Microns – Nano Structures, Superhydrophobicity

References

[1] Jiang Lei, Feng Lin, etc. Bionic intelligent nano interface materials. Beijing: chemical industry press, 2007 (1) 50-55

[2] Wagner P，FurstnerR F，Barthlottw，et al．Quantitative assessment to the structural basis of water repellency in natural and technical surfaces ．Journal of Experimental Botany，2003，54(385)：1295-1303

DOI: 10.1093/jxb/erg127

[3] Xu Jian. Development of bionic polymer surface with self-cleaning function. Chinese Academy of Sciences, 2005 (1) :45-48

[4] Wanxin Sun, Pavel Neuzil, Tanu Suryadi Kustandi, Sharon Oh, and Victor D. Samper. The Nature of the Gecko Lizard Adhesive Force. Biophysical Journal: Biophysical Letters

DOI: 10.1529/biophysj.105.065268

[5] Boxin Zhao, Noshir Pesika, Kenny Rosenberg, Yu Tian, Hongbo Zeng, Patricia McGuiggan, Kellar Autumn, and Jacob Israelachvili. Adhesion and Friction Force Coupling of Gecko Setal Arrays: Implications for Structured Adhesive Surfaces. Langmuir 2008, 24, 1517-1524

DOI: 10.1021/la702126k
