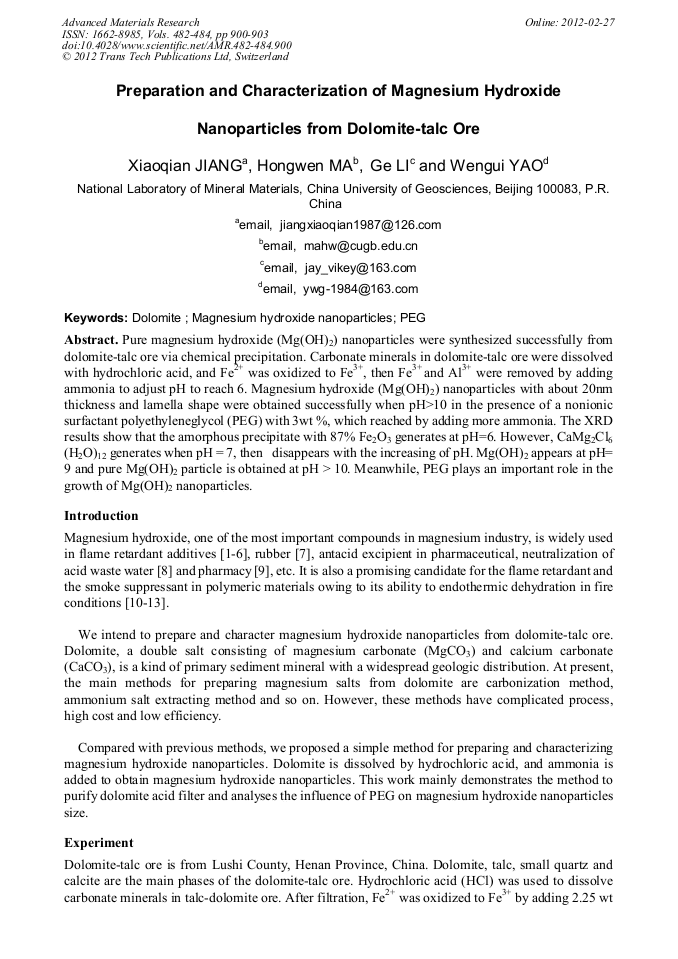

Preparation and Characterization of Magnesium Hydroxide Nanoparticles from Dolomite-Talc Ore

Abstract:

Pure magnesium hydroxide (Mg(OH)2) nanoparticles were synthesized successfully from dolomite-talc ore via chemical precipitation. Carbonate minerals in dolomite-talc ore were dissolved with hydrochloric acid, and Fe2+ was oxidized to Fe3+, then Fe3+ and Al3+ were removed by adding ammonia to adjust pH to reach 6. Magnesium hydroxide (Mg(OH)2) nanoparticles with about 20nm thickness and lamella shape were obtained successfully when pH>10 in the presence of a nonionic surfactant polyethyleneglycol (PEG) with 3wt %, which reached by adding more ammonia. The XRD results show that the amorphous precipitate with 87% Fe2O3 generates at pH=6. However, CaMg2Cl6 (H2O)12 generates when pH = 7, then disappears with the increasing of pH. Mg(OH)2 appears at pH= 9 and pure Mg(OH)2 particle is obtained at pH > 10. Meanwhile, PEG plays an important role in the growth of Mg(OH)2 nanoparticles.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 900-903
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.900
• Online since: February 2012
• Authors: Xiao Qian Jiang, Hong Wen Ma, Ge Li, Wen Gui Yao
• Keywords: Dolomite, Magnesium Hydroxide Nanoparticle, PEG

References

[1] S. Zhang and A.R. Horrocks: Prog. Polym. Sci. Vol. 28 (2003), p.1517

[2] J.P. Hsu and A. Nacu: Colloids. Surf. A. Vol. 262 (2005), p.220

[3] H.Q. Wu, M.W. Shao and J.S. Gu: J. Mater. Lett. Vol. 58 (2004), p.2166.

[4] C. Henrist, J.P. Mathieu and C. Vogels: J. Cryst. Growth Vol. 249 (2003), p.321

[5] J.P. Lv, L.Z. Qiu and B.J. Qu: J. Cryst. Growth Vol. 267 (2004), p.676

[6] L.Z. Qiu, R.C. Xie and P. Ding: Compos. Struct. Vol. 62 (2003), p.391

[7] G.X. Du, S.L. Zheng and Y.J. Li: Chin. Ceram. Soc. Vol. 33 (2005), p.659 (in chinese)

[8] J. Yang, G.X. Du and S.L. Zheng: Funct. Mater. Acta. Vol. 11 (2007), p.2415

[9] B.A. Howell, F.M. Uhl and D. Townsend: Thermochem Acta. Vol. 357 (2000), p.127

[10] C. Henrist, J.P. Mathieu and C. Vogels: J. Cryst. Growth 249 (2003), p.321

[11] Y. Ding, G.T. Zhang and H. Wu: Chem. Mater. Vol. 13 (2001) p.435

[12] S. Utamapanya, K.J. Klabunde and J.R. Schlup, Chem. Mater. Vol. 3 (1991), p.175

[13] A. Durin-France, L. Ferry and J.M. Lopez Cuesta: A. Crespy, Polym. Int. Vol. 49 (2000), p.1101

DOI: 10.1002/1097-0126(200010)49:10<1101::aid-pi523>3.0.co;2-5

[14] C.Y. Liu, Y.Q. Liu and C.H. An: Inorg. Chem.Indus. Vol. 40 (2008), p.38 (in chinese)

[15] X. Nan, J.X. Liu and C.C. Sun: J. Chin. Ceram. Soc. Vol. 37 (2009), p.2024 (in chinese)
