Physical Properties of PP/Recycled PET Blends Prepared by Pulverization Technique

Pranut Potiyaraj; Supachok Tanpichai; Prompoom Phanwiroj

doi:10.4028/www.scientific.net/AMR.488-489.109

Paper Titles

Investigation on the Deformation Pattern and Energy Absorption Capacity of Hot-Stamping Structures with Partial Pressing Hardening
p.87

Mechanical Properties of Montmorillonite-Filled Natural Rubbers Compatibilized by Epoxidized Natural Rubbers
p.93

Low Temperature Solvolthermally Synthesized Nitrogen-Fluorine Doped TiO₂for Methyl Orange Photodegradation
p.98

Optical Properties of NiO Thin Films: A Potential Material for Optoelectronic Devices
p.103

Physical Properties of PP/Recycled PET Blends Prepared by Pulverization Technique
p.109

Transport Properties of Chitosan/Peo Blend Based Proton Conducting Polymer Electrolyte
p.114

Martensitic Transformation and Response Characteristics in Bias-SMA Spring Actuators with Thermal Cycling
p.118

Inverse Estimation of Viscoelastic Material Properties Based on Particle Swarm Optimization and Neural Network
p.124

Ab Initio Electronic Structure Studies of CuO Multiferroics
p.129

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 488-489Physical Properties of PP/Recycled PET Blends...

Physical Properties of PP/Recycled PET Blends Prepared by Pulverization Technique

Abstract:

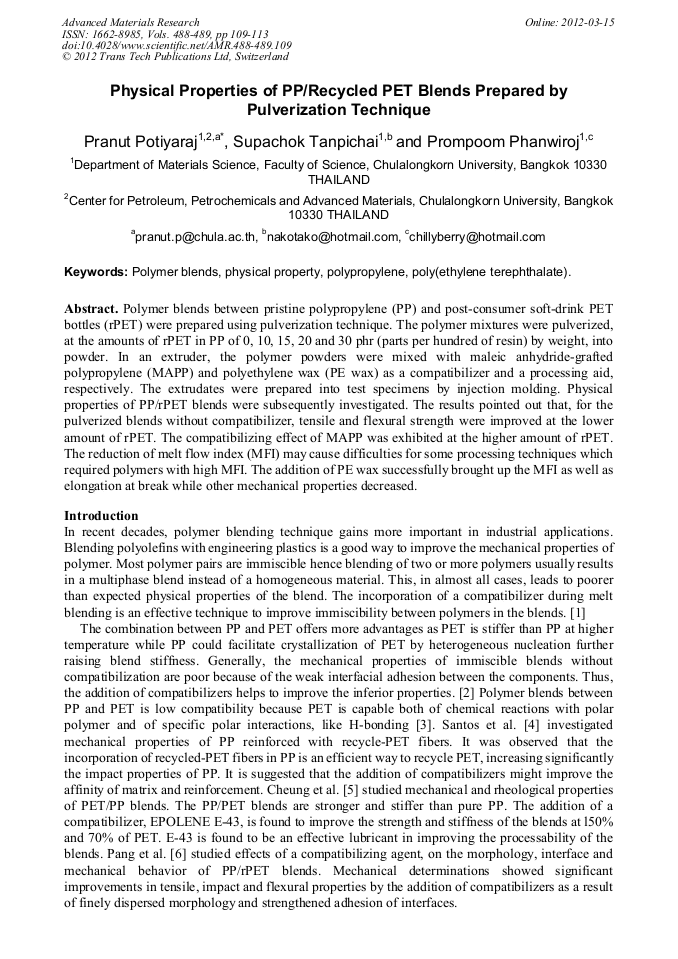

Polymer blends between pristine polypropylene (PP) and post-consumer soft-drink PET bottles (rPET) were prepared using pulverization technique. The polymer mixtures were pulverized, at the amounts of rPET in PP of 0, 10, 15, 20 and 30 phr (parts per hundred of resin) by weight, into powder. In an extruder, the polymer powders were mixed with maleic anhydride-grafted polypropylene (MAPP) and polyethylene wax (PE wax) as a compatibilizer and a processing aid, respectively. The extrudates were prepared into test specimens by injection molding. Physical properties of PP/rPET blends were subsequently investigated. The results pointed out that, for the pulverized blends without compatibilizer, tensile and flexural strength were improved at the lower amount of rPET. The compatibilizing effect of MAPP was exhibited at the higher amount of rPET. The reduction of melt flow index (MFI) may cause difficulties for some processing techniques which required polymers with high MFI. The addition of PE wax successfully brought up the MFI as well as elongation at break while other mechanical properties decreased.
