Steady State Response Simulation of a 2-D Micromirror in Simulink

Abstract:

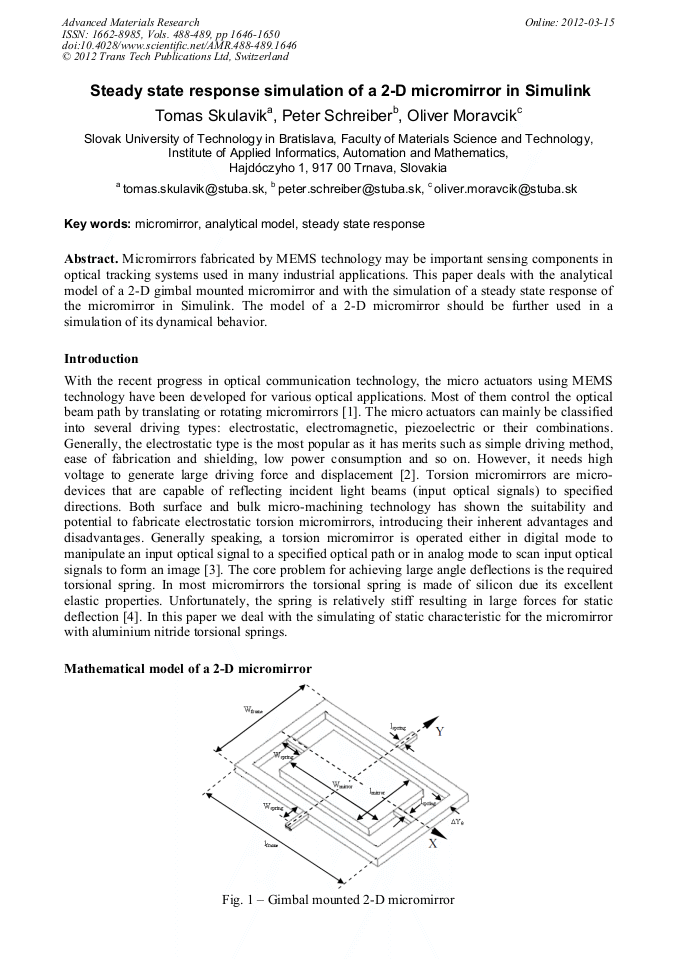

Micromirrors fabricated by MEMS technology may be important sensing components in optical tracking systems used in many industrial applications. This paper deals with the analytical model of a 2-D gimbal mounted micromirror and with the simulation of a steady state response of the micromirror in Simulink. The model of a 2-D micromirror should be further used in a simulation of its dynamical behavior.
