Tool Wear Performance of TiAlN/AlCrN Multilayer Coated Carbide Tool in Machining of AISI D2 Hardened Steel

Abstract:

This paper presents the results of experimental investigation conducted on a vertical machining centre (VMC) to ascertain the effectiveness of TiAlN/AlCrN multilayer coated carbide inserts in end milling of AISI D2 hardened steel (58-62 HRC) In high-speed dry hard milling, different cutting speed (v) and radial depth of cut (d_r) were applied. Tool failure modes and wear mechanisms were examined at various cutting parameters. Flank wear, chipping and breakage at cutting edge were found to be the predominant tool failure for the cutting tools. Built-up edge, adhesion and abrasive are the wear mechanisms observed on the cutting tools. The highest volume of material removed, VMR attained was 1500 mm3, meanwhile the highest tool life (T) was 4.97 min. The surface roughness, Ra values from 0.20 to 0.45 μm can be attained in the workpiece with a high volume material removed. The relationship of tool wear performance and surface integrity was established to lead an optimum parameter in order to have high volume material removed, maximum tool life as well as acceptable surface finish.

You might also be interested in these eBooks

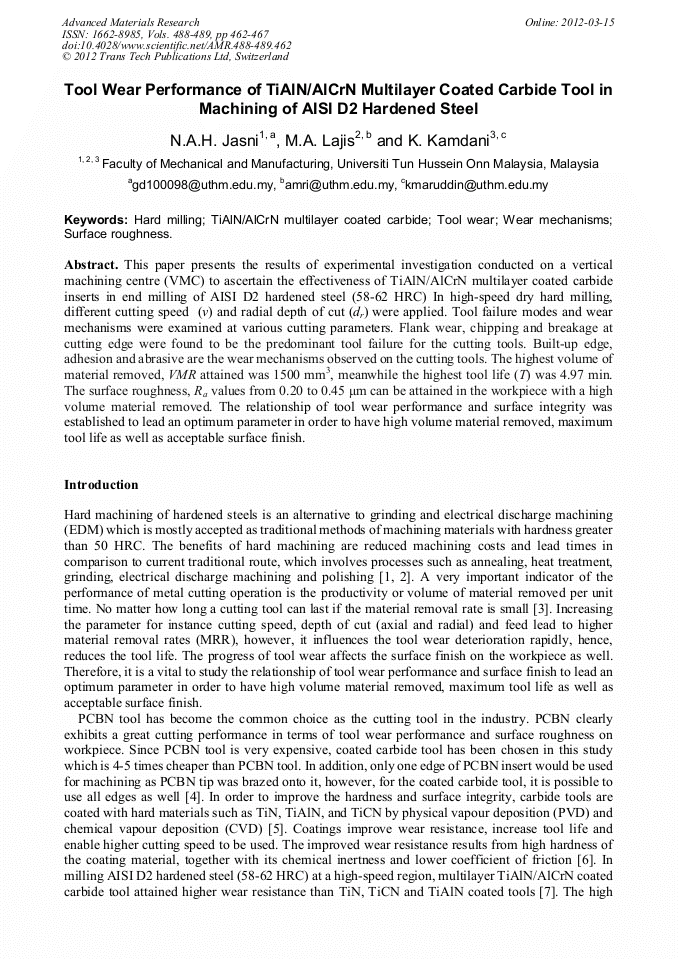

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 488-489)

Pages:

462-467

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.488-489.462

Citation:

Cite this paper

Online since:

March 2012

Authors:

N.A.H. Jasni, Mohd Amri Lajis, K. Kamdani

Keywords:

Hard Milling, Surface Roughness (SR), TiAlN/AlCrN Multilayer Coated Carbide, Tool Wear, Wear Mechanism

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.M. Gopalsamy, B. Mondal, S. Ghosh, K. Arntz and F. Klocke, Investigations on hard machining of Impax Hi Hard tool steel, Int J Mater Form. 2 (2009) 145-165.

DOI: 10.1007/s12289-009-0400-5

Google Scholar

[2] B.M. Gopalsamy, B. Mondal, S. Ghosh, K. Arntz and F. Klocke: submitted to Int J Adv Manuf Technol (2010).

Google Scholar

[3] K. A Abou-El-Hossein and Z. Yahya, High-speed end-milling of AISI 304 stainless steels using new geometrically developed carbide inserts, Journal of Materials Processing Technology. 162-163 (2005) 596-602.

DOI: 10.1016/j.jmatprotec.2005.02.129

Google Scholar

[4] N. Camuscu, and E. Aslan, A comparative study on cutting tool performance in end milling of AISI D3 tool steel, Journal of Materials Processing Technology. 170 (2005) 121-126.

DOI: 10.1016/j.jmatprotec.2005.04.111

Google Scholar

[5] E. Aslan, Experimental investigation of cutting tool performance in high speed cutting of hardened X210Cr12 cold work tool steel (62 HRC), Materials & Design. 26 (2005) 21-27.

DOI: 10.1016/j.matdes.2004.04.004

Google Scholar

[6] G. Boothroyd and W. A Knight, Fundamental of Machining and Machine Tools. Second edition, Boca Raton: CRC Press (2006).

Google Scholar

[7] M.A. Okada, A.B. Hosokawa, R.B. Tanaka, and T.B. Ueda, Cutting performance of PVD-coated carbide and CBN tools in hardmilling, International Journal of Machine Tools & Manufacture. 51 (2011) 127–132.

DOI: 10.1016/j.ijmachtools.2010.10.007

Google Scholar

[8] W.Y.H. Liew, Low-speed milling of stainless steel with TiAlN single-layer and TiAlN/AlCrN nano-multilayer coated carbide tools under different lubrication conditions, Wear. 269 (2010) 617-631.

DOI: 10.1016/j.wear.2010.06.012

Google Scholar

[9] Z.Q. Liu, X. Ai, H. Zhang, Z. T Wang and Y. Wan, Wear patterns and mechanisms of cutting tools in high-speed face milling, Journal of Material Processing Technology. 129 (2002) 222-226.

DOI: 10.1016/s0924-0136(02)00605-2

Google Scholar

[10] K. Kadirgama, K.A. Abou-El-Hossein, M.M. Noor, K.V. Sharma and B. Mohammad, Tool life and wear mechanism when machining Hastelloy C-22HS, Wear. 270 (2011) 258-268.

DOI: 10.1016/j.wear.2010.10.067

Google Scholar

[11] W. Grzesik, Advanced Machining Processes of Metallic Materials: Theory, Modelling and Applications. First edition, Oxford, UK: Elsevier (2008).

Google Scholar

[12] M.A. Lajis, M.N.A. Karim, A.K.M.N. Amin, A.M.K. Hafiz and L.G. Turnad, Prediction of tool life in end milling of hardened steel AISI D2, European Journal of Scientific Research. Vol. 21 No. 4, (2008) pp.592-602.

DOI: 10.4028/www.scientific.net/amr.83-86.56

Google Scholar

[13] H.R. Siller, C. Vila, C.A. Rodríguez and J.V. Abellán, Study of face milling of hardened AISI D3 steel with a special design of carbide tools, Int J Adv Manuf Technol. 40 (2009) 12–25.

DOI: 10.1007/s00170-007-1309-0

Google Scholar
