Design of New Type Involute Planetary Gear Reducer of Small Tooth Number Difference

Abstract:

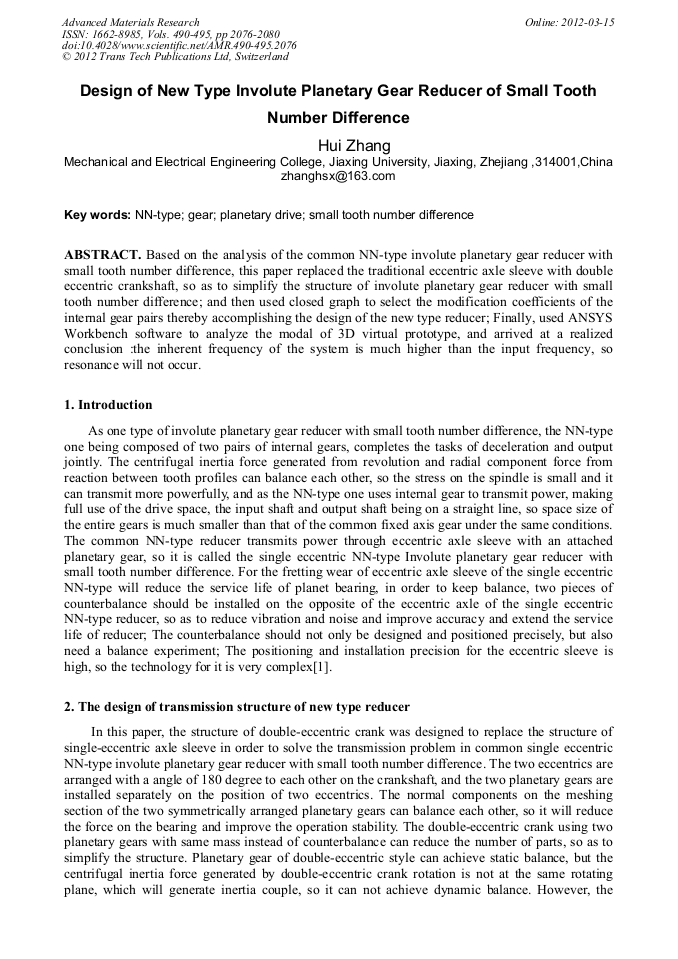

Based on the analysis of the common NN-type involute planetary gear reducer with small tooth number difference, this paper replaced the traditional eccentric axle sleeve with double eccentric crankshaft, so as to simplify the structure of involute planetary gear reducer with small tooth number difference; and then used closed graph to select the modification coefficients of the internal gear pairs thereby accomplishing the design of the new type reducer; Finally, used ANSYS Workbench software to analyze the modal of 3D virtual prototype, and arrived at a realized conclusion :the inherent frequency of the system is much higher than the input frequency, so resonance will not occur.
