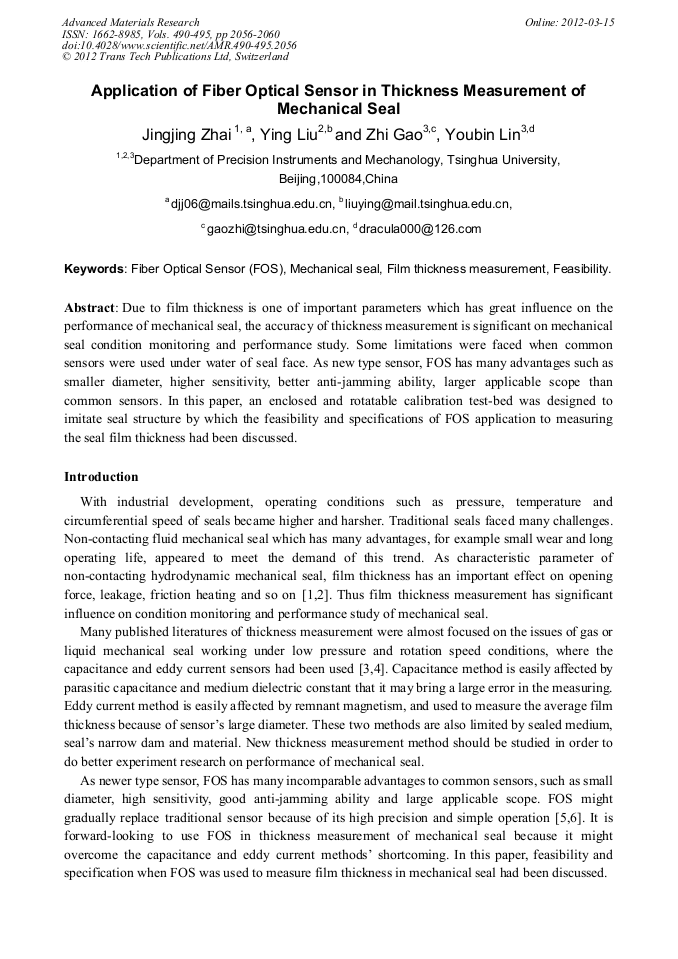

Application of Fiber Optical Sensor in Thickness Measurement of Mechanical Seal

Abstract:

Due to film thickness is one of important parameters which has great influence on the performance of mechanical seal, the accuracy of thickness measurement is significant on mechanical seal condition monitoring and performance study. Some limitations were faced when common sensors were used under water of seal face. As new type sensor, FOS has many advantages such as smaller diameter, higher sensitivity, better anti-jamming ability, larger applicable scope than common sensors. In this paper, an enclosed and rotatable calibration test-bed was designed to imitate seal structure by which the feasibility and specifications of FOS application to measuring the seal film thickness had been discussed

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 2056-2060
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.2056
• Online since: March 2012
• Authors: Jing Jing Zhai, Ying Liu, Zhi Gao, You Bin Lin
• Keywords: Feasibility, Fiber Optical Sensor (FOS), Film Thickness Measurement, Mechanical Seal

References

[1] Lebeck A O: Principles and design of mechanical face seals (Wiley Press, New York, 1991).

[2] Yongquan Gu: Mechanical seal practical technique (China Machine Press, Beijing, 2001), in Chinese.

[3] S.I. EI-sisi and G.S.A. Shawki: Trans. ASME, Vol. 3 (1960), pp.12-17.

[4] Danmei Hu, Xudong Peng, Muming Hao and Zhaohui Du: Lubrication Engineering, Vol. 2 (2005), pp.139-142, in Chinese.

[5] Haiyan Li: Instrument Technique and Sensor, Vol. z1 (2009), pp.403-405, in Chinese.

[6] Sen Zhang, Zhen Wang, Menghua Liu and Qi Zhou: Optical fiber & Electric Cable and Their Applications, Vol. 3 (2007), pp.1-3, in Chinese.

[7] Qiongwei Li and Haibao Lu: Journal of National University of Defense Technology, Vol. 2 (1998), pp.79-84, in Chinese.

[8] Jiashun Zhang, Jiaxiang He and Guixiang Xiao: Fiber optical sensor Technique (Water Resources and Electric Power Press, Beijing, 1988), in Chinese.
