For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Research on Metal-Rubber Composite Damping Steel Plate Application in Acoustic Bridge for Double Cylindrical Shell
p.3505
Self-Lubricating SiC/PTFE Composite Coating Formation on Surface of Aluminium Alloy
p.3511
Properties and Application of Characteristic Polynomial
p.3516
Sonochemical Synthesis and Characterization of Bismuth Aluminate Nanocrystals
p.3522
Preparation and Properties of Chrome-Free Colored Na3AlF6 Conversion Coating on Aluminum Alloy
p.3527
Static Stiffness Analysis for the Parallel Bonding Mechanism of IC Chip Die
p.3531
Self-Propagating High-Temperature Spraying Synthesis of Ferrites Hollow Microspheres
p.3536
Study on Activated Carbon Prepared from Coking Fly Ash with KOH Activation
p.3540
Study on Productive Technology of Greensand Mold and Thick-Walled Small Piece for Nodular Cast Iron
p.3545

Preparation and Properties of Chrome-Free Colored Na3AlF6 Conversion Coating on Aluminum Alloy

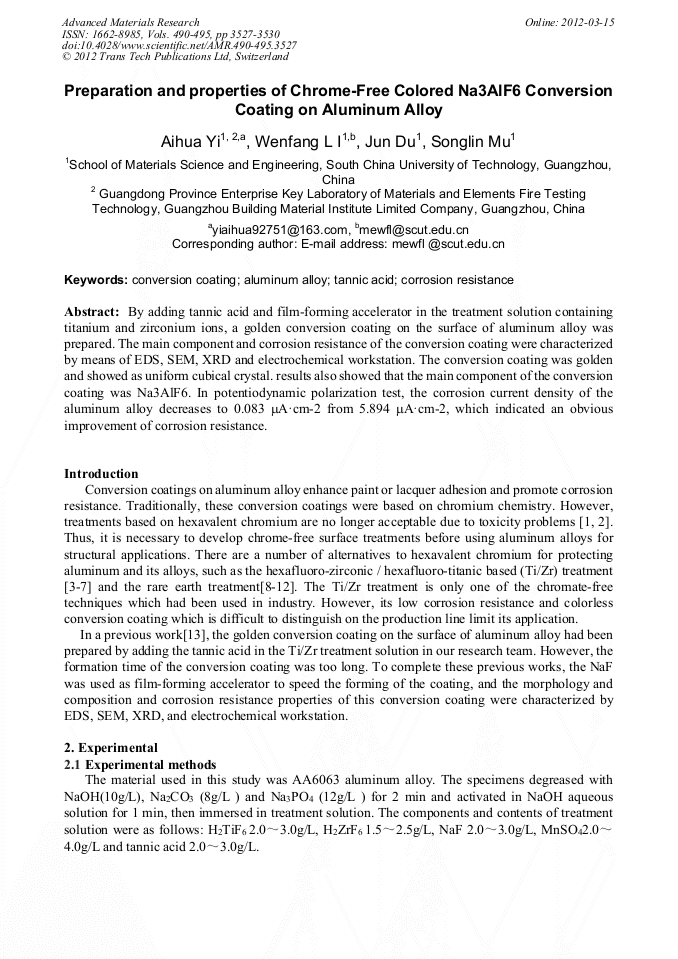

Article Preview

Abstract:

By adding tannic acid and film-forming accelerator in the treatment solution containing titanium and zirconium ions, a golden conversion coating on the surface of aluminum alloy was prepared. The main component and corrosion resistance of the conversion coating were characterized by means of EDS, SEM, XRD and electrochemical workstation. The conversion coating was golden and showed as uniform cubical crystal. results also showed that the main component of the conversion coating was Na3AlF6. In potentiodynamic polarization test, the corrosion current density of the aluminum alloy decreases to 0.083 A•cm-2 from 5.894 A•cm-2, which indicated an obvious improvement of corrosion resistance.

You might also be interested in these eBooks
Mechatronics and Intelligent Materials II View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 490-495)

Pages:

3527-3530

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.490-495.3527

Citation:

Cite this paper

Online since:

March 2012

Authors:

Ai Hua Yi, Wen Fang Li, Jun Du, Song Lin Mu

Keywords:

Aluminium Alloy, Conversion Coating, Corrosion Resistance, Tannic Acid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] M. Okido, R. Ichino, S. J. Kim and S. K. Jang. Nonferrous Met. Soc. China 19(2009). p.892.

Google Scholar

[2] S. A. Salman, R. Ichino. and M. Okido, Chem. Lett. 36(2007). p.1024.

Google Scholar

[3] S. Verdier, N. vander Laak. and F. Dalard. Surf. Coat. Technol. 200(2006). p.2955.

Google Scholar

[4] M. A. Smit, J. A. Hunter. and J. D. B. Sharman. Corros. Sci. 46(2004). p.1713.

Google Scholar

[5] J. H. Nordlien, J. C. Walmsley. and H. Osterberg. Surf. Coat. Technol. 153(2002). p.72.

Google Scholar

[6] O. Lunder, C. Simensen. and Y. Yu. Surf. Coat. Technol. 184(2004). p.278.

Google Scholar

[7] F. Andreatta, A. Turco. and I. de Graeve. 201(2007). p.7668.

Google Scholar

[8] J. J. Zhang, W. F. Li. and J. Du. Chin. Sci. Bull. 55(2010). p.3345.

Google Scholar

[9] X.W. Yu, C. N. Cao. and Z.M. Yao. Corros. Sci. 43(2001) p.1283.

Google Scholar

[10] J. Hu, X. H. Zhao. and S. W. Tang. Appl. Surf. Sci. 253(2007). p.8879.

Google Scholar

[11] M. Dabala, K. Brunelli, E. Napolitani. and M. Magrini. Surf. Coat. Technol. 172(2003). p.227.

Google Scholar

[12] M. Zhao, S. S. Wu, J. R. and Luo, Y. Fukuda. Surface & Coatings Technology. 200(2006). p.5407.

Google Scholar

[13] Liu N H, Li W F. and Du J. J Funct. Mater(Chinese). S3(2010). p.572.

Google Scholar

[14] B. R. W. Hinton. J. Alloys Compd. 180(1992). p.15.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
