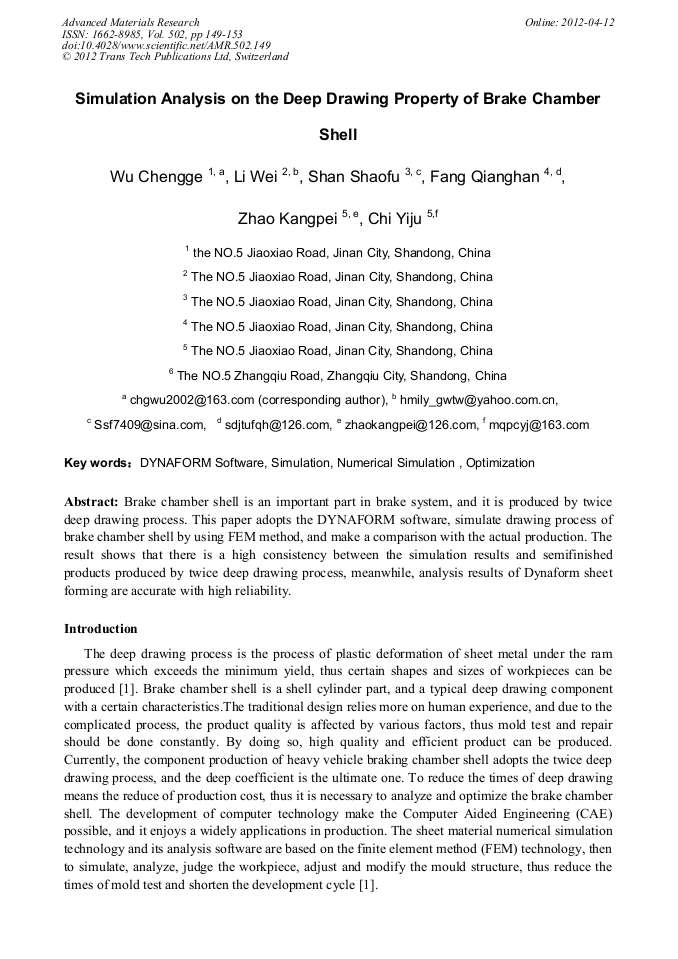

Simulation Analysis on the Deep Drawing Property of Brake Chamber Shell

Abstract:

Brake chamber shell is an important part in brake system, and it is produced by twice deep drawing process. This paper adopts the DYNAFORM software, simulate drawing process of brake chamber shell by using FEM method, and make a comparison with the actual production. The result shows that there is a high consistency between the simulation results and semifinished products produced by twice deep drawing process, meanwhile, analysis results of Dynaform sheet forming are accurate with high reliability.
