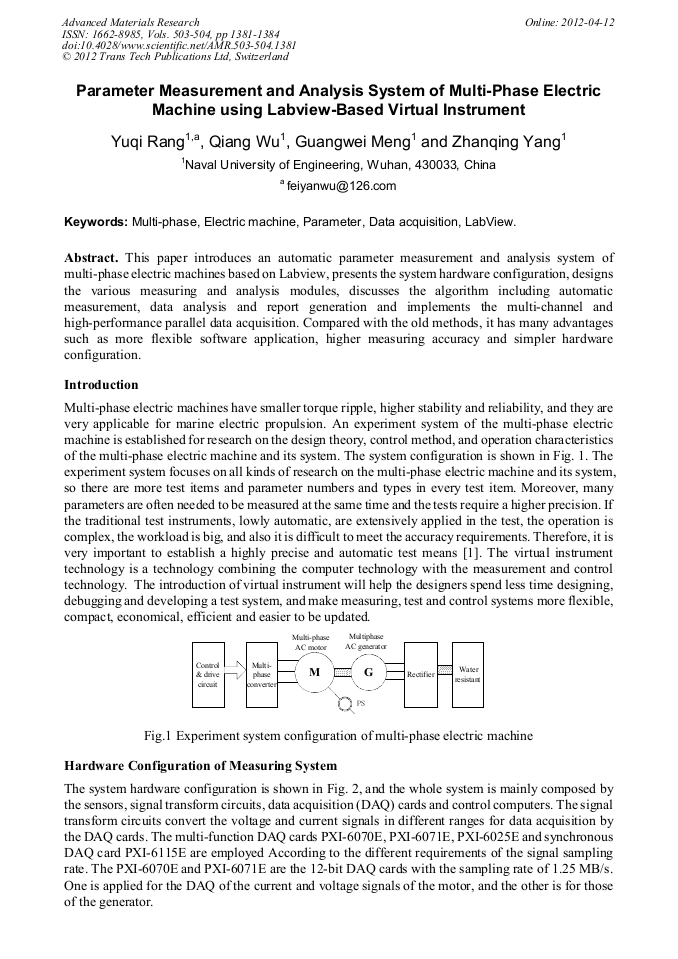

Parameter Measurement and Analysis System of Multi-Phase Electric Machine Using Labview-Based Virtual Instrument

Abstract:

This paper introduces an automatic parameter measurement and analysis system of multi-phase electric machines based on Labview, presents the system hardware configuration, designs the various measuring and analysis modules, discusses the algorithm including automatic measurement, data analysis and report generation and implements the multi-channel and high-performance parallel data acquisition. Compared with the old methods, it has many advantages such as more flexible software application, higher measuring accuracy and simpler hardware configuration.

• Periodical: Advanced Materials Research (Volumes 503-504)
• Pages: 1381-1384
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.503-504.1381
• Online since: April 2012
• Authors: Yu Qi Rang, Qiang Wu, Guang Wei Meng, Zhan Qing Yang
• Keywords: Data Acquisition, Electric Machine, LabVIEW, Multi-Phase, Parameter
