HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 503-504Effects of Annealing Temperature on Optical...

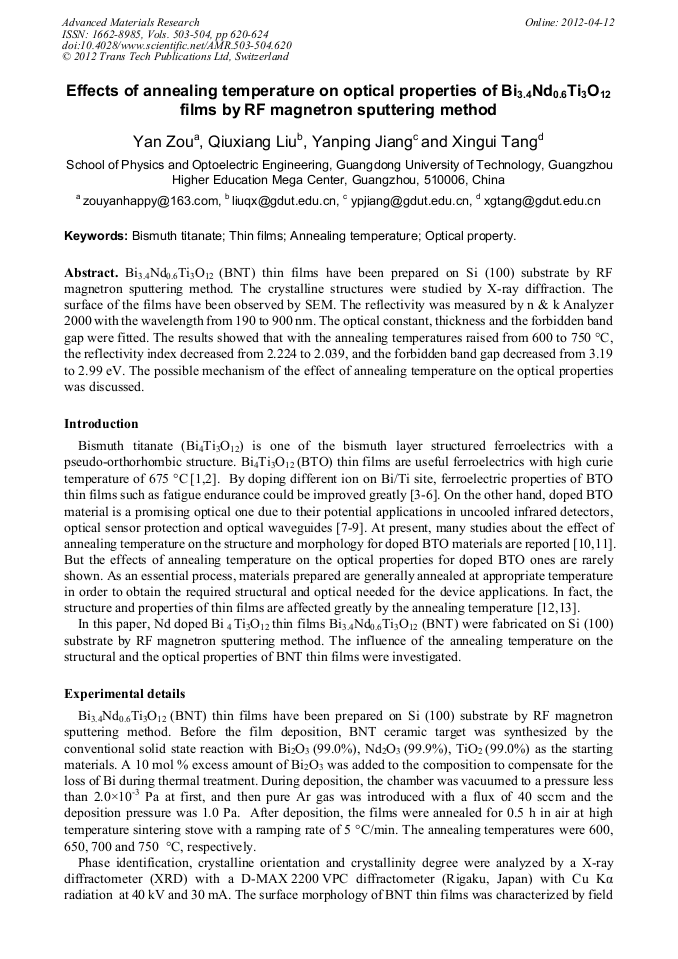

Effects of Annealing Temperature on Optical Properties of Bi_3.4Nd_0.6Ti₃O₁₂ Films by RF Magnetron Sputtering Method

Abstract:

Bi3.4Nd0.6Ti3O12 (BNT) thin films have been prepared on Si (100) substrate by RF magnetron sputtering method. The crystalline structures were studied by X-ray diffraction. The surface of the films have been observed by SEM. The reflectivity was measured by n & k Analyzer 2000 with the wavelength from 190 to 900 nm. The optical constant, thickness and the forbidden band gap were fitted. The results showed that with the annealing temperatures raised from 600 to 750 °C, the reflectivity index decreased from 2.224 to 2.039, and the forbidden band gap decreased from 3.19 to 2.99 eV. The possible mechanism of the effect of annealing temperature on the optical properties was discussed.

You might also be interested in these eBooks

Frontiers of Manufacturing Science and Measuring Technology II

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 503-504)

Pages:

620-624

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.503-504.620

Citation:

Cite this paper

Online since:

April 2012

Authors:

Yan Zou, Qiu Xiang Liu, Yan Ping Jiang, Xin Gui Tang

Keywords:

Annealing Temperature, Bismuth Titanate, Optical Property, Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.F. Dorriann, R.E. Newnhan, D.K. Smith et al.: Ferroelectrics Vol. 3 (1972), pp.17-27.

Google Scholar

[2] M.H. francombe: Ferroelectrics Vol. 3 (1972), pp.199-211.

Google Scholar

[3] X.S. Gao, J.M. Xue, and J. Wang: Journal of Applied Physics Vol. 97 (2005), pp.034101-034105.

Google Scholar

[4] J. Li, J. Yu, G. Peng et al.: Journal of Physics D: Applied. Physics Vol. 40 (2007), pp.3788-3792.

Google Scholar

[5] M. Liao, X.L. Zhong, Y. Qiao et al.: Journal of Alloys and Compounds Vol. 487 (2009), pp.331-334.

Google Scholar

[6] U. Chon, H.M. Jang, M.G. Kim et al.: Physical Review Letters Vol. 89 (2002), pp.087601-087604.

Google Scholar

[7] M.S. Tomar, R.E. Melgarejo and S.P. Singh: Microelectronics Journal Vol. 36 (2005), pp.574-577.

Google Scholar

[8] T. Sakai, T. Watanabe, M. Osada et al.: Japanese Journal of Applied Physics Vol. 42 (2003), pp.2850-2852.

Google Scholar

[9] J.H. Ma, X.J. Meng, J.L. Sun et al.: Acta Physica Sinica Vol. 54 (2005), pp.3900-3904, in Chinese.

Google Scholar

[10] M. Toyoda, Y. Hamaji, K. Tomono et al.: Japanese Journal of Applied Physics Vol. 32 (1993), pp.4158-4162.

Google Scholar

[11] E.B. Araújo, V.B. Nunes, S.I. Zanette et al.: Materials Letters Vol. 49 (2001), pp.108-111.

Google Scholar

[12] H.Y. Tian, W.G. Luo, A.L. Ding et al.: Thin Solid Films Vol. 408 (2002), pp.200-205.

Google Scholar

[13] Z.W. Zhao, B.K. Tay, L. Huang et al.: Optical Materials Vol. 27 (2004), pp.465-469.

Google Scholar

[14] F.K. Lotgering: Journal of Inorganic and Nuclear Chemistry Vol. 9 (1959), pp.113-123.

Google Scholar

[15] X.M. Lu, J.S. Zhu, W.Y. Zhang et al.: Thin Solid Films Vol. 274 (1996), pp.165-168.

Google Scholar

[16] M.N. Kamalasanan, S. Chandra, P.C. Joshi et al.: Appl. Phys. Lett Vol. 59 (1991), pp.3547-3549.

Google Scholar
