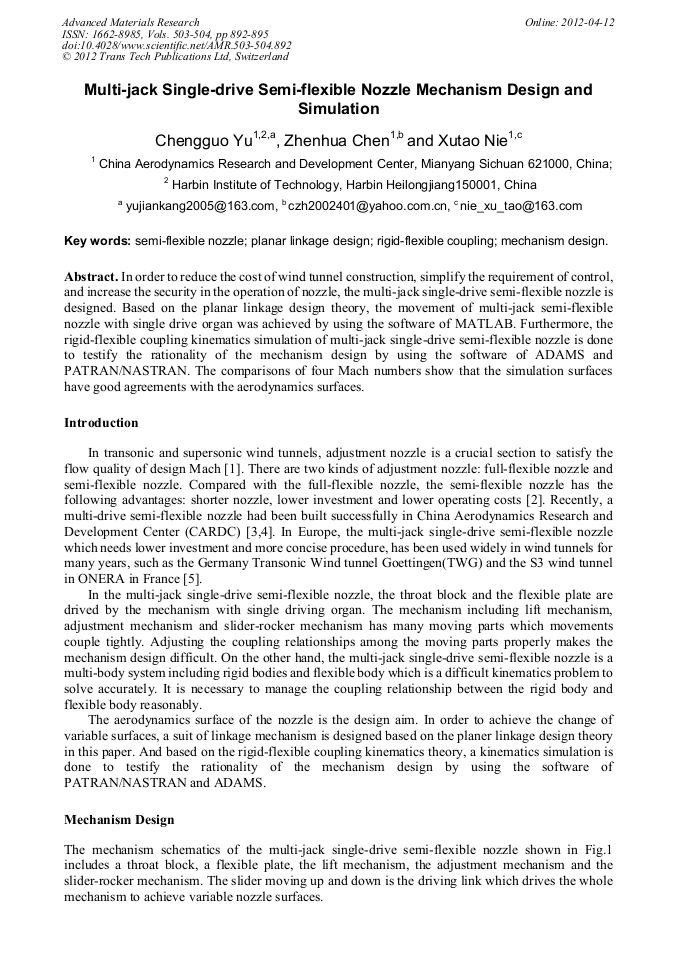

Multi-Jack Single-Drive Semi-Flexible Nozzle Mechanism Design and Simulation

Abstract:

In order to reduce the cost of wind tunnel construction, simplify the requirement of control, and increase the security in the operation of nozzle, the multi-jack single-drive semi-flexible nozzle is designed. Based on the planar linkage design theory, the movement of multi-jack semi-flexible nozzle with single drive organ was achieved by using the software of MATLAB. Furthermore, the rigid-flexible coupling kinematics simulation of multi-jack single-drive semi-flexible nozzle is done to testify the rationality of the mechanism design by using the software of ADAMS and PATRAN/NASTRAN. The comparisons of four Mach numbers show that the simulation surfaces have good agreements with the aerodynamics surfaces.

• Periodical: Advanced Materials Research (Volumes 503-504)
• Pages: 892-895
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.503-504.892
• Online since: April 2012
• Authors: Cheng Guo Yu, Zhen Hua Chen, Xu Tao Nie
• Keywords: Mechanism Design, Planar Linkage Design, Rigid-Flexible Coupling, Semi-Flexible Nozzle

References

[1] Liu Zhengchong. Structure Design for Wind Tunnel. China Space Navigation Publishing Company, China (2005).

[2] Siegfried F. Erdmann. A New Economic Flexible Nozzle for Supersonic Wind Tunnels. J of Aircraft. (1971).

DOI: 10.2514/3.44228

[3] Peng Qiang, Deng Xiao-gang, Liao Da-xiong, Fu Cheng. The Primary Parameters Research on the Aerodynamic Designing of Semi-Flexible Nozzle. Acta Aerodynamica Sinica. 2011 29(1): 39-46.

[4] Nie Xutao, Guo Longde, Liu Bolin. Dynamics Simulation and Analysis of Flexible Nozzle in Wind Tunnel Based on ADAMS. Journal of Experiments in Fluid Mechanics. 2011 25(2): 73-76.

[5] Fan Jiechuan. World Wind Tunnel. Aviation Industry Publication. (1992).

[6] Yu Qing, Hong Jiazhen. Some Topics on Flexible Multibody System Dynamics. Advances in Mechanics. 1999 29(2): 146.
