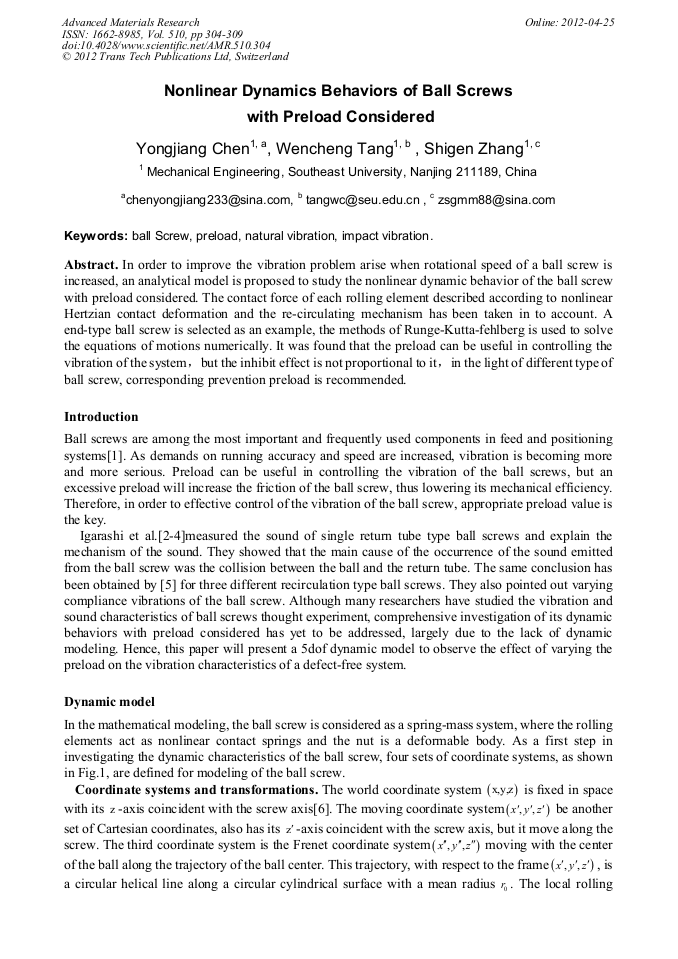

Nonlinear Dynamics Behaviors of Ball Screws with Preload Considered

Abstract:

In order to improve the vibration problem arise when rotational speed of a ball screw is increased, an analytical model is proposed to study the nonlinear dynamic behavior of the ball screw with preload considered. The contact force of each rolling element described according to nonlinear Hertzian contact deformation and the re-circulating mechanism has been taken in to account. A end-type ball screw is selected as an example, the methods of Runge-Kutta-fehlberg is used to solve the equations of motions numerically. It was found that the preload can be useful in controlling the vibration of the system,but the inhibit effect is not proportional to it,in the light of different type of ball screw, corresponding prevention preload is recommended.
