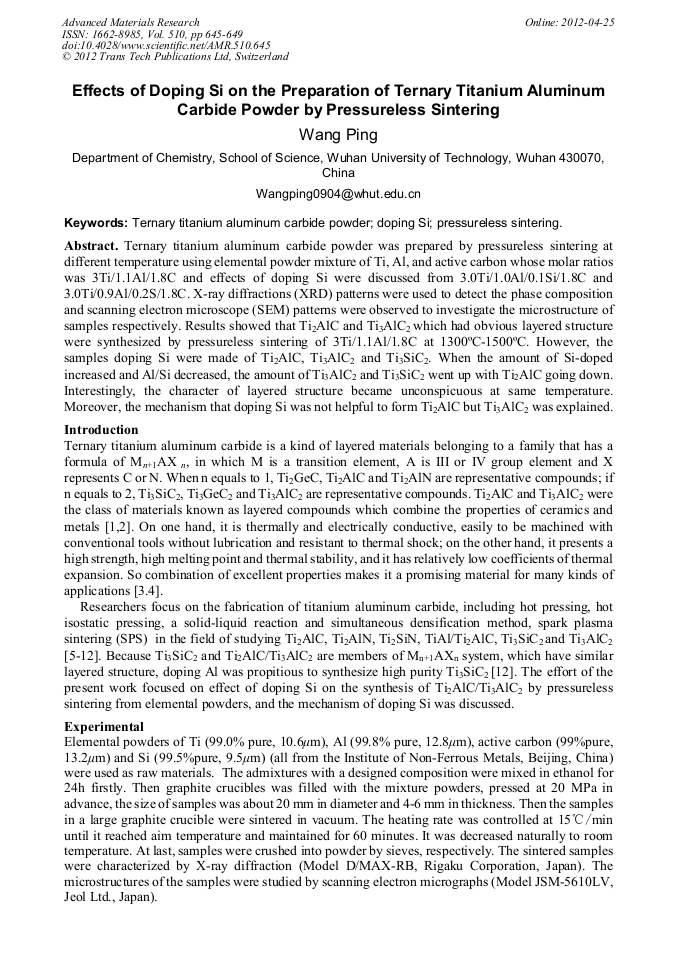

Effects of Doping Si on the Preparation of Ternary Titanium Aluminum Carbide Powder by Pressureless Sintering

Abstract:

Ternary titanium aluminum carbide powder was prepared by pressureless sintering at different temperature using elemental powder mixture of Ti, Al, and active carbon whose molar ratios was 3Ti/1.1Al/1.8C and effects of doping Si were discussed from 3.0Ti/1.0Al/0.1Si/1.8C and 3.0Ti/0.9Al/0.2S/1.8C. X-ray diffractions (XRD) patterns were used to detect the phase composition and scanning electron microscope (SEM) patterns were observed to investigate the microstructure of samples respectively. Results showed that Ti₂AlC and Ti₃AlC₂ which had obvious layered structure were synthesized by pressureless sintering of 3Ti/1.1Al/1.8C at 1300°C-1500°C. However, the samples doping Si were made of Ti₂AlC, Ti₃AlC₂ and Ti₃SiC₂. When the amount of Si-doped increased and Al/Si decreased, the amount of Ti₃AlC₂ and Ti₃SiC₂ went up with Ti₂AlC going down. Interestingly, the character of layered structure became unconspicuous at same temperature. Moreover, the mechanism that doping Si was not helpful to form Ti₂AlC but Ti₃AlC₂ was explained.

• Periodical: Advanced Materials Research (Volume 510)
• Pages: 645-649
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.510.645
• Online since: April 2012
• Authors: Ping Wang
• Keywords: Doping Si, Pressureless Sintering, Ternary Titanium Aluminum Carbide Powder

References

[1] M.W. Barsoum: Prog. Solid. State. Chem. Vol. 28(2000) , p.201.

[2] M.W. Barsoum and T. El-Raghy: Am. Sci. Vol. 89 (2001), p.334.

[3] Y. P. Gan, X. K. Qian, X. D. He, Y. X. Chen, S. N. Yun, and Y. Zhou: Physica B. Vol 406 (2011), p.3847.

[4] M.W. Barsoum, D. Brodkio, T. EI-Ranghy: Scripta. Mater. Vol. 36 (1997): p.535.

[5] M.W. Barsoum, M. Ali, T. El-Raghy: Metall. Mater. Trans. A Vol. 31 (2000), p.1857.

[6] Y.C. Zhou, Z.M. Sun: Phys. Rev. B Vol. 61 (2000), p.12570.

[7] X.H. Wang, Y.C. Zhou: Z. Metallkd. Vol. 93 (2002), p.66.

[8] V. Gauthier-Brunet, I. Cabioc'h, P. Chartier, M. Jaouen, and S. Dubois: J. Eur. Ceram. Soc. Vol 29 (2009), p.187.

[9] X.L. Hong, B.C. Mei, J. Q, Zhu, W.B. Zhou: J. Mater. Sci. Vol. 39 (2004), p.1589.

[10] B.C. Mei, Y. Miyamoto: Mater. Chem. Phys. Vol. 75 (2002), p.291.

[11] J.Q. Zhu, B.C. Mei: J. Mater. Sci. Lett. Vol. 22 (2003), p.889.

[12] J.Q. Zhu, B.C. Mei: J. Mater. Synth. Proces. Vol. 10 (2002), p.353.

[13] X.L. Hong. Study on the Synthesis of Ternary Layered Machinable Carbide Ti2AlC (in Chinese) [D]. Wuhan: Wuhan University of Technology(2004).
