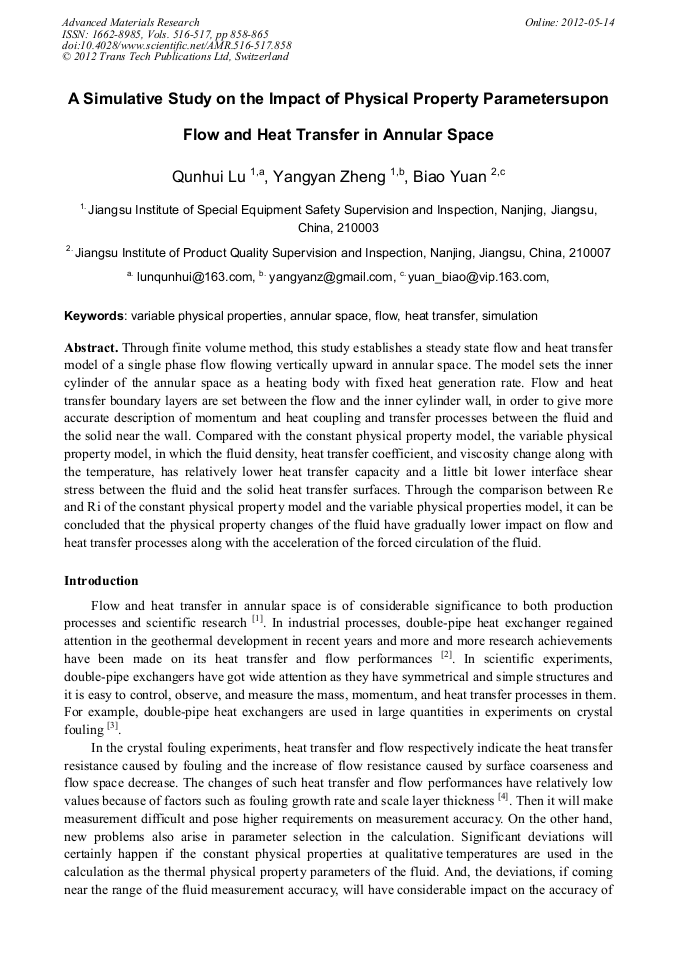

A Simulative Study on the Impact of Physical Property Parametersupon Flow and Heat Transfer in Annular Space

Abstract:

Through finite volume method, this study establishes a steady state flow and heat transfer model of a single phase flow flowing vertically upward in annular space. The model sets the inner cylinder of the annular space as a heating body with fixed heat generation rate. Flow and heat transfer boundary layers are set between the flow and the inner cylinder wall, in order to give more accurate description of momentum and heat coupling and transfer processes between the fluid and the solid near the wall. Compared with the constant physical property model, the variable physical property model, in which the fluid density, heat transfer coefficient, and viscosity change along with the temperature, has relatively lower heat transfer capacity and a little bit lower interface shear stress between the fluid and the solid heat transfer surfaces. Through the comparison between Re and Ri of the constant physical property model and the variable physical properties model, it can be concluded that the physical property changes of the fluid have gradually lower impact on flow and heat transfer processes along with the acceleration of the forced circulation of the fluid.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 858-865
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.858
• Online since: May 2012
• Authors: Qun Hui Lu, Yang Yan Zheng, Biao Yuan
• Keywords: Annular Space, Flow, Heat Transfer, Simulation, Variable Physical Properties

References

[1] Mikio Sakakibara, Shigeru Mori, Akira Tanimoto. Conjugate heat transfer with laminar flow in an annulus. The Canadian Journal of Chemical Engineering, Volume 65, Issue 4, pages 541–549, August (1987)

DOI: 10.1002/cjce.5450650403

[2] Jeffrey B. Williams. DOUBLE-PIPE HEAT EXCHANGER. report September 18, 2002 MEB 3520

[3] Hans Müller-Steinhagen. Heat Exchanger Fouling and Cleaning. INTERNATIONAL ENGINEERING CONFERENCES, July 1 - 6, 2007. Tomar, Portugal

[4] Misheck Gift Mwaba. Analysis of Heat Exchanger Fouling in Cane Sugar Industry. Dissertation, Eindhoven University, (2003)

[5] http://geolab.larc.nasa.gov/APPS/YPlus/

[6] Fluent 6.0 Users Guide, Fluent inc. 11/29/(2001)

[7] P. Huang, P. Bradshaw, and T. Coakley. Skin Friction and Velocity Profile Family for Compressible Turbulent Boundary Layers. AIAA Journal, 31(9):1600–1604, September 1993.

DOI: 10.2514/3.11820

[8] B. Kader. Temperature and Concentration Profiles in Fully Turbulent Boundary Layers. Int. J. Heat Mass Transfer, 24(9):1541–1544, 1981.

DOI: 10.1016/0017-9310(81)90220-9

[9] G. K. Batchelor. An Introduction to Fluid Dynamics. Cambridge Univ. Press, Cambridge, England, (1967)

[10] Incropera, F. P., and DeWitt, D. P., 1996, Introduction to Heat Transfer[M], John Wiley & Sons, New York

[11] Hausen, H. Neue Gleichungen für die Wärmeübertragung bei freier und erzwungener Strömung. Allg. Wärmetechnik 9, 75-79 (1959).

[12] S. Kakac, R. Shah and W. Aung. In: (2nd edn. ed.), Handbook of Single-Phase Convective Heat Transfer[M]., Wiley, New York (1987).

[13] Smoldyrev, A.E. Calculation of Concentration and Velocity Distribution for Hydraulic Fluid Flow in Pipes. Power Technology and Engineering 36, 243-246 (2002)

[14] Baker, Gutowski, Smith. Developing a Relationship between Fanning Friction factor and Reynolds Number. 06-363, Transport Process Laboratory (2002).

[15] Jhon, Myung. Velocity Profiles in Turbulent Pipe Flow, Carnegie, dissertation, Mellon University, (2002)
