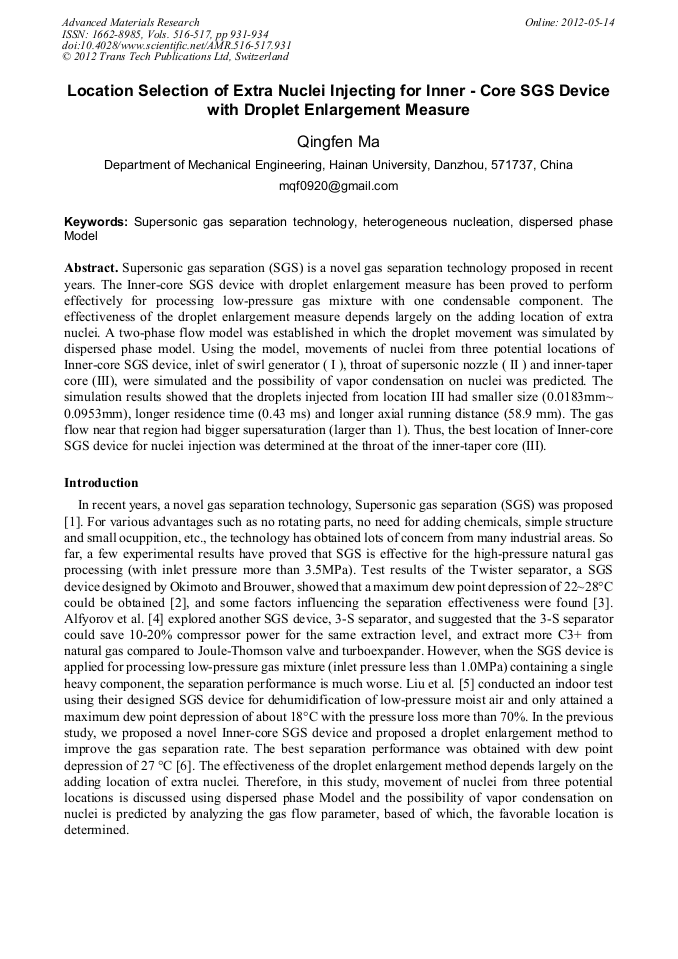

Location Selection of Extra Nuclei Injecting for Inner - Core SGS Device with Droplet Enlargement Measure

Abstract:

Supersonic gas separation (SGS) is a novel gas separation technology proposed in recent years. The Inner-core SGS device with droplet enlargement measure has been proved to perform effectively for processing low-pressure gas mixture with one condensable component. The effectiveness of the droplet enlargement measure depends largely on the adding location of extra nuclei. A two-phase flow model was established in which the droplet movement was simulated by dispersed phase model. Using the model, movements of nuclei from three potential locations of Inner-core SGS device, inlet of swirl generator (Ⅰ), throat of supersonic nozzle (Ⅱ) and inner-taper core (Ⅲ), were simulated and the possibility of vapor condensation on nuclei was predicted. The simulation results showed that the droplets injected from location Ⅲ had smaller size (0.0183mm~ 0.0953mm), longer residence time (0.43 ms) and longer axial running distance (58.9 mm). The gas flow near that region had bigger supersaturation (larger than 1). Thus, the best location of Inner-core SGS device for nuclei injection was determined at the throat of the inner-taper core (Ⅲ).

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 931-934
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.931
• Online since: May 2012
• Authors: Qing Fen Ma
• Keywords: Dispersed Phase Model, Heterogeneous Nucleation, Supersonic Gas Separation Technology

References

[1] M. Betting, U.S. Pat 6513345 B1 (2003).

[2] F. Okimoto, J. M. H. Brouwer. World Oil, Vol. 223 (2002), pp.1170-1178.

[3] M. Betting, H. Epsom. World Oil, Vol. 228 (2007), pp.197-200.

[4] V. Alfyorov, L. Bagirov, L. Dmitriev, V. Feygin, S. Lmayev and J. R. Lacey. Oil & Gas Journal, Vol.103 (2005), pp.53-58.

[5] H. Liu, Z. Feng, K. YGu and T. Yan. Chinese Journal of Chemical Engineering, Vol. 13 (2005), pp.9-12.

[6] Q. Ma, D. Hu, G. He, S. Hu, W. Liu, Q. Xu and Y. Wang. Chinese Journal of Chemical Engineering, Vol. 17 (2009), pp.925-933.

[7] J. Tong, J. Li: Calculation of Thermophysical Properties of the Fluid (publication of Tsinghua University, Beijing 1982). In Chinese.
