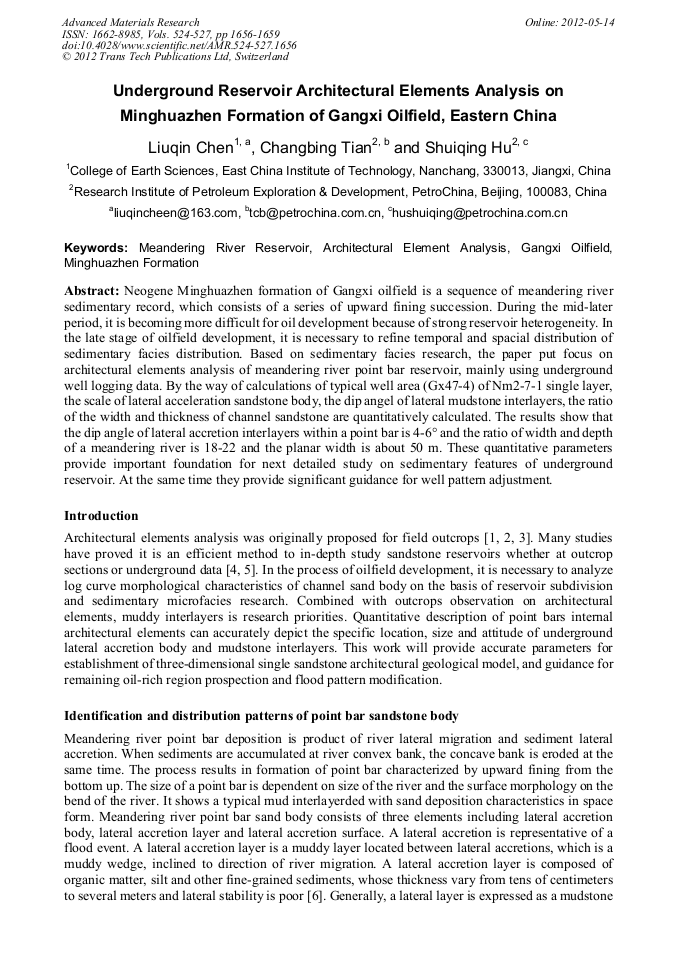

Underground Reservoir Architectural Elements Analysis on Minghuazhen Formation of Gangxi Oilfield, Eastern China

Liu Qin Chen; Chang Bing Tian; Shui Qing Hu

doi:10.4028/www.scientific.net/AMR.524-527.1656

Paper Titles

The Numerical Simulation of Buried Hill Fractured Reservoir by CO₂ WAG with Overlap Alternative Horizontal Well Pattern
p.1634

The Research of Borehole-Ground DC Method Detecting Anomaly of Underground Dynamic High-Resistivity Conductor and Case Hole Effect
p.1639

The Research on Rational Proration to Low Yield and Pressure Gas Well in Tight Gas Reservoir
p.1647

Two Typical Cases Analysis of Casing Connection Pullout
p.1651

Underground Reservoir Architectural Elements Analysis on Minghuazhen Formation of Gangxi Oilfield, Eastern China
p.1656

Well Logging in Gas Hydrate-Bearing Sediment: A Review
p.1660

Development Progress of Surfactants for Chemical Combination Flooding
p.1673

Dispersion Polymerization of Microgel in Aqueous Solution of Ammonium Sulfate and its Oil Displacement Efficiency Study
p.1681

Hydroisomerization of N-Hexadecane on a Highly Selective Zeolite Catalyst
p.1687

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 524-527Underground Reservoir Architectural Elements...

Underground Reservoir Architectural Elements Analysis on Minghuazhen Formation of Gangxi Oilfield, Eastern China

Abstract:

Neogene Minghuazhen formation of Gangxi oilfield is a sequence of meandering river sedimentary record, which consists of a series of upward fining succession. During the mid-later period, it is becoming more difficult for oil development because of strong reservoir heterogeneity. In the late stage of oilfield development, it is necessary to refine temporal and spacial distribution of sedimentary facies distribution. Based on sedimentary facies research, the paper put focus on architectural elements analysis of meandering river point bar reservoir, mainly using underground well logging data. By the way of calculations of typical well area (Gx47-4) of Nm2-7-1 single layer, the scale of lateral acceleration sandstone body, the dip angel of lateral mudstone interlayers, the ratio of the width and thickness of channel sandstone are quantitatively calculated. The results show that the dip angle of lateral accretion interlayers within a point bar is 4-6° and the ratio of width and depth of a meandering river is 18-22 and the planar width is about 50m. These quantitative parameters provide important foundation for next detailed study on sedimentary features of underground reservoir. At the same time they provide significant guidance for well pattern adjustment.
