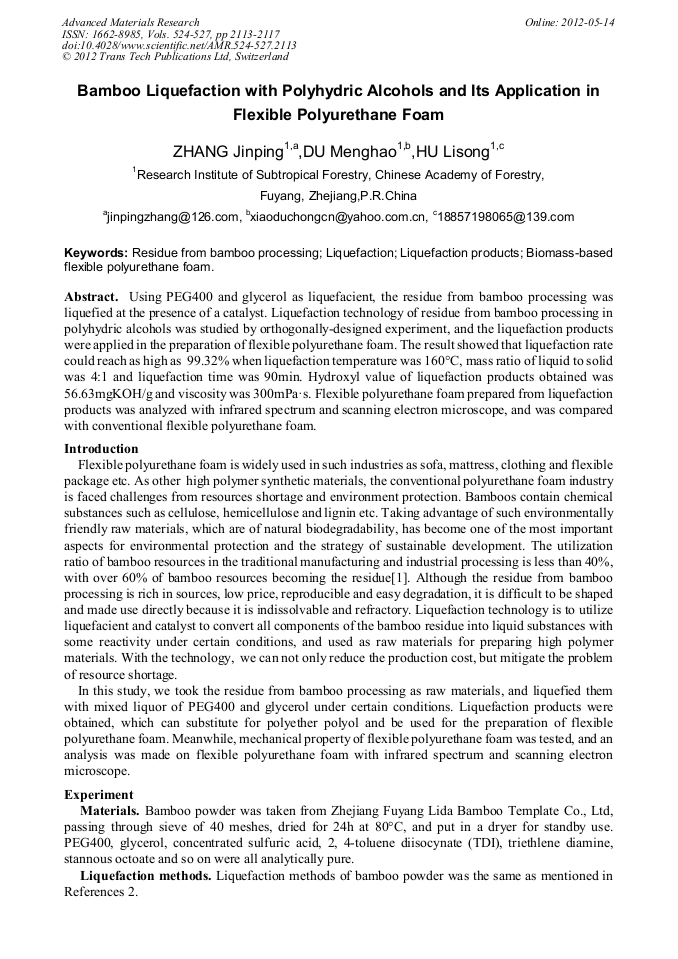

Bamboo Liquefaction with Polyhydric Alcohols and its Application in Flexible Polyurethane Foam

Abstract:

Using PEG400 and glycerol as liquefacient, the residue from bamboo processing was liquefied at the presence of a catalyst. Liquefaction technology of residue from bamboo processing in polyhydric alcohols was studied by orthogonally-designed experiment, and the liquefaction products were applied in the preparation of flexible polyurethane foam. The result showed that liquefaction rate could reach as high as 99.32% when liquefaction temperature was 160°C, mass ratio of liquid to solid was 4:1 and liquefaction time was 90min. Hydroxyl value of liquefaction products obtained was 56.63mgKOH/g and viscosity was 300mPa•s. Flexible polyurethane foam prepared from liquefaction products was analyzed with infrared spectrum and scanning electron microscope, and was compared with conventional flexible polyurethane foam.

• Periodical: Advanced Materials Research (Volumes 524-527)
• Pages: 2113-2117
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.524-527.2113
• Online since: May 2012
• Authors: Jin Ping Zhang, Meng Hao Du, Li Song Hu
• Keywords: Biomass-Based Flexible Polyurethane Foam, Liquefaction, Liquefaction Products, Residue from Bamboo Processing

References

[1] Zeng Xianyang, Sun Gonggang, Ling Zhongqian etc. Research on Bamboo Waste as An Industrial Boiler Fuel. Journal of China Jiliang University. 2009, 20(2):144-148.

[2] Zhang Jinping, Du Menghao, Wang Jingwen etc. Analysis on Bamboo Liquefaction with Polyhydric Alcohols and Liquefied Products [J]. Science of Technology of Cellulose, 2010, 18(2):15-21.

[3] Liu Yuhuan, Gao Longlan, Luo Aixiang etc. Study on Polyurethane Foam Prepared from Combined Liquefaction Mixture of Bamboo Residues and Cornstarch [J]. Chinese Journal of Polymer Science, 2008(6):544-549.
